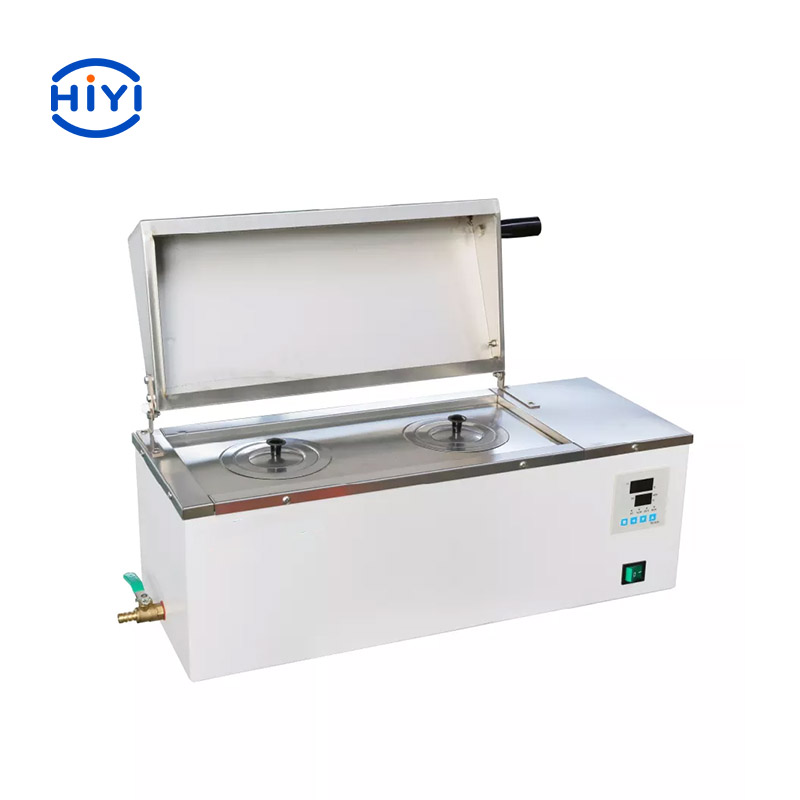

SHHW21 Thermostatic water tank
1. SHHW21.420AII model cover for the two holes water bath, can be used as a digital two holes water bath.
2. SHHW21.600AII model cover for the six holes water bath, can be used as a digital six holes water bath.
| Model | HHW | SHHW | HHW | SHHW |
| 21.420AII | 21.420AII | 21.600AII | 21.600AII |
| Function | Tem. Range | RT+ | RT+ | RT+ | RT+ |
| 5～65℃ | 5～ 100℃ | 5～65℃ | 5～100℃ |
| Tem. Resolution | 0.1℃ |
| Ratio |
| Tem. Motion | ±0.5℃ |
| Tem. Uniformity | ±1.0℃ |
| Structure | Inner Chamber | High quality hairline stainless steel plate |
| Outer Shell | Cold rolling steel electrostatic spraying exterior |
| Cover | High quality hairline stainless steel plate |
| Cover circle | Without | With | Without | With |
| Test tube rack | Without | With | Without | With |
| Controller | Heater | Stainless steel heating tube |
| Power Rating | 0.5kW | 1kW | 0.75kW | 2kW |
| Tem. control | PID |
| mode |
| Tem. setting | Touch button setting |
| mode |
| Tem. display | Measuring temperature: display on the three |
| mode | digital tubes upper row ；setting |
| temperature: display on the lower row |
| Timer | 0～9999min（with timing wait function） |
| Operation function | Fixed temperature operation, |
| timing function, auto stop. |
| Program function | No |
| Additional function | Deviation correction、Menu key lock、 |
| Power-off compensation、Power failure memory |
| Sensor | CU50 |
| Safety device | Over temperature alarm |
| Specification | Sink size | 420*180*140 | 600*300*200 |
| (W*L*H) |
| (mm) |
| Exterior size | 570*230*270 | 750*350*360 |
| (W*L*H) |
| (mm) |
| Packing size | 730*400*340 | 910*450*460 |
| (W*L*H) |
| (mm) |
| Volume | 11L | 36L |
| Supply | AC220V/ | AC220V/ | AC220V/ | AC220V/ |
| （50/60Hz) | 2.3A | 4.5A | 6.8A | 9.1A |
| Current rating |
|
|
|
|
| NW/GW (kg） | 8/9.5 | 8.5/10 | 17/19 | 18/20 |
| Optional accessories | No |
