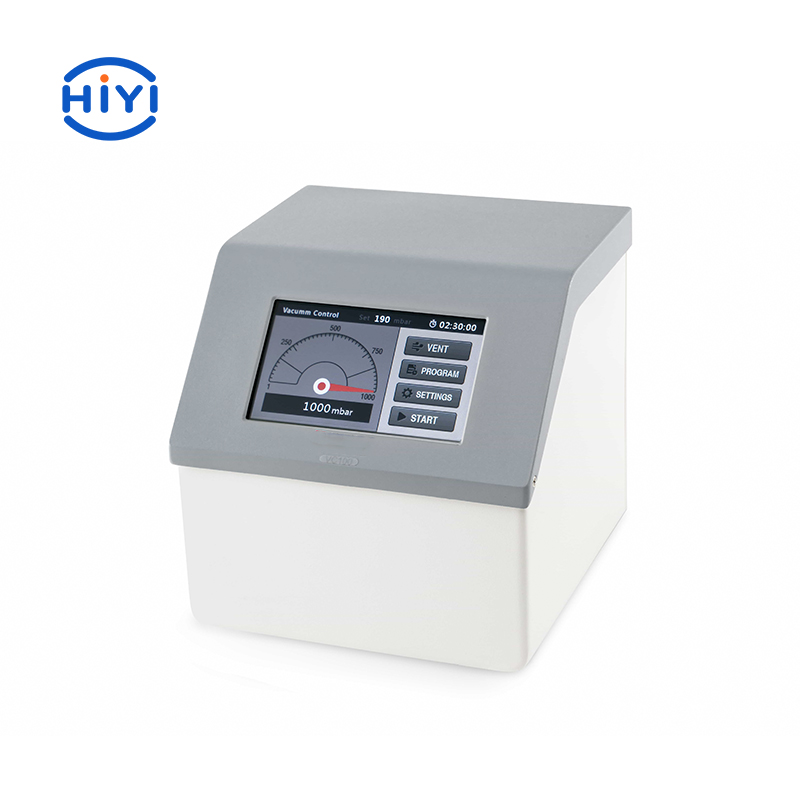

VC100 Vacuum Controller

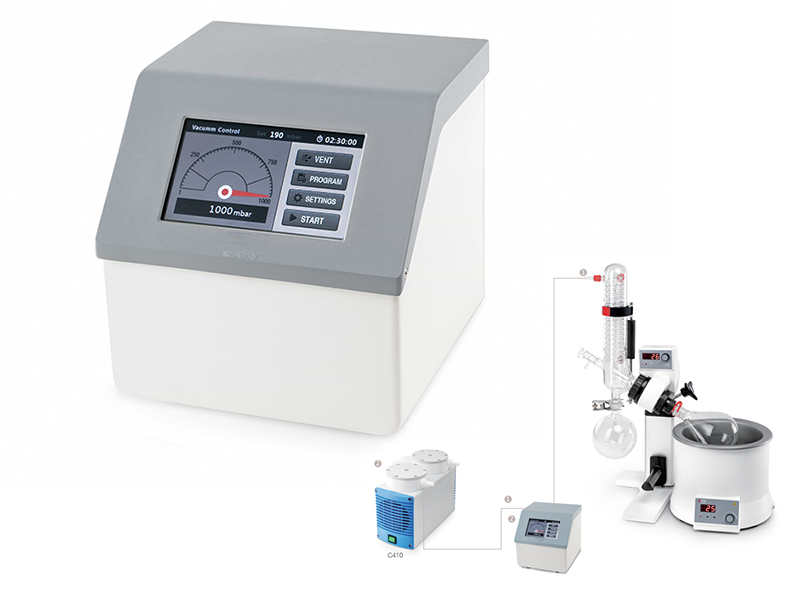

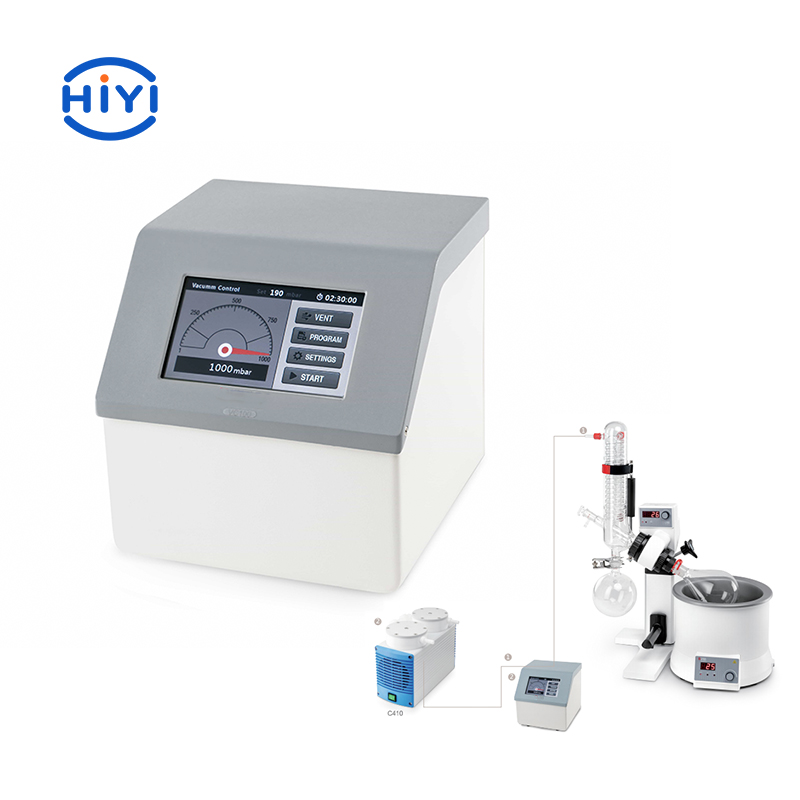

The vacuum controller serves as a device for labs to display, adjust and control the degree of vacuum in vacuum systems. It generally constitutes the vacuum control system of rotary evaporator along with vacuum pump, which enables repeatable distillation experiment and recovery of many kinds of solvents in an efficient and automatic manner.

Inquiry
(+86)010-5653 8958
  • Product description
  • Product parameter
  • Product video

VC100 Vacuum Controller



Features:

  • Wide range of measurement and control, 1-1000mbar

  • Two control modes available Single-point control and programmed control

  • Stores up to 5 programs, each containing up to 5 steps of programming control

  • Large TFT touch screen display control provides easy operation

  • All parts in contact with vapor or liquid are made of PTFE, ceramics or other high-performance materials which effectively resists corrosion caused by organic solvents, water, acid and alkali

  • Built-in vent valve can feed inert gas into system equipment

  • One-stroke decompression allows easy installation and dismantling of vacuum system

  • Can be connected with pump power control for temporary shutdown of pump power supply after reaching stable degree of vacuum for energy conservation and environmental protection.

  • Can also be operated in the normally open status of pump

  • Reliable and functional design to fulfill essential needs of precise vacuum regulation

Application:

Suitable for pilot-scale production, large-scale application in biology engineering, pharmaceutical industry, chemical industry,beauty industry, medical industry and food processing.


SpecificationsVC100
Vacuum setting range1-1000mbar
Vacuum measurement range1-1000mbar
Control operation modeSingle-point control mode,
Programmed control mode
Control programCan store up to 5 programs, each
containing 5-step control (capable to
set the degree of vacuum and time)
Setting methodTouch screen setting
Display5'' TFT
Sensor overload pressure1,500mbar
Connector diameter8mm
Materials in contact with vaporPTFE, PP, silicone and ceramics
power600w
Overall dimensionsW×D×H189×207×193mm
weight4.0KG
Power supply110—240V,50Hz/60Hz
Operating environment10℃~40℃,≤80%RH
