TC1000-S Standard Thermal Cycler

Elegant design, excellent precision and accurate, reproducible results and precise PCR optimization
High performance with advanced thermal gradient technology, state-of-the-art electronics, precision peltier device and flexible user interface.

Inquiry
(+86)010-5653 8958
  • Product description
  • Product parameter
  • Product video

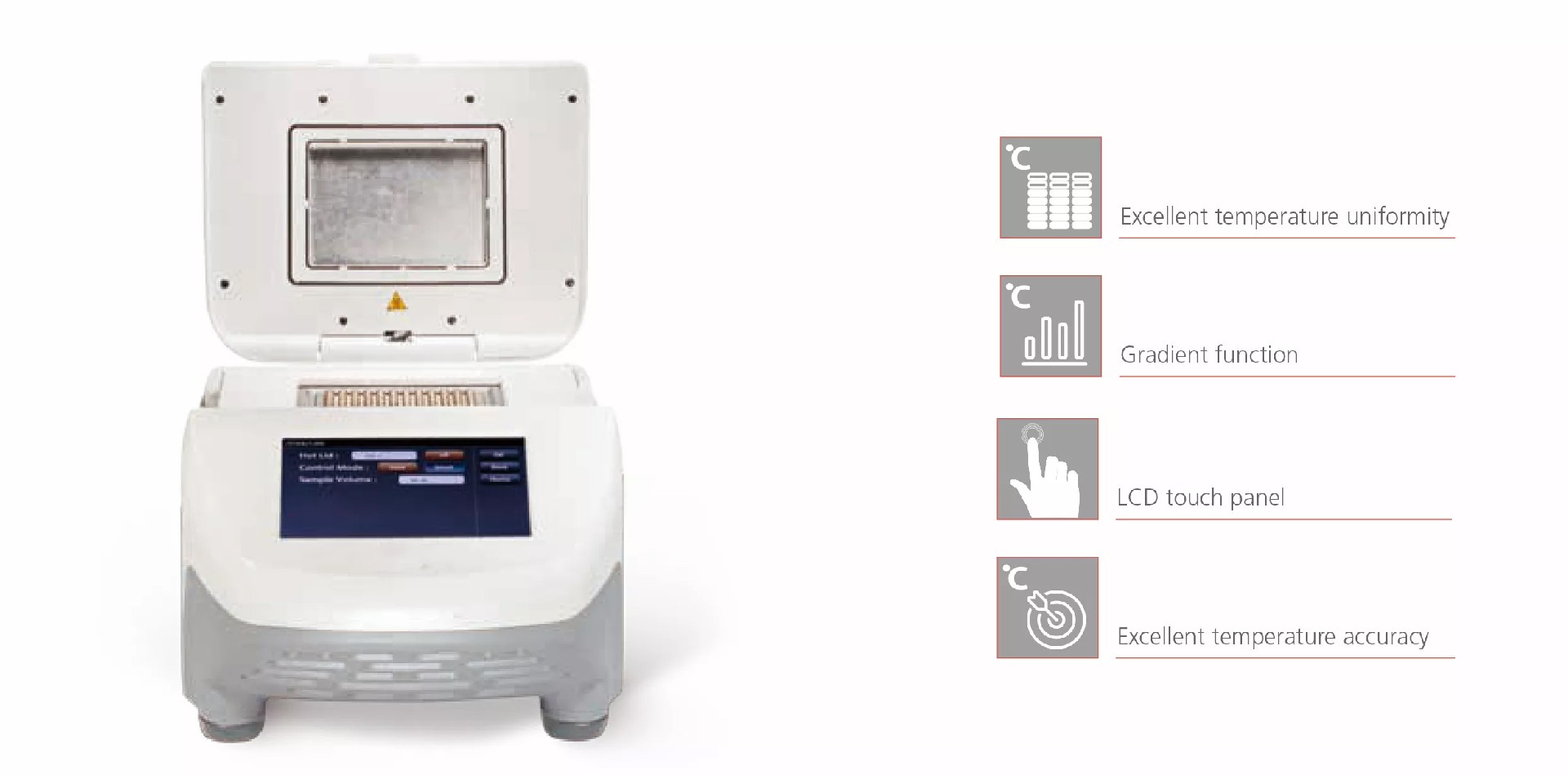

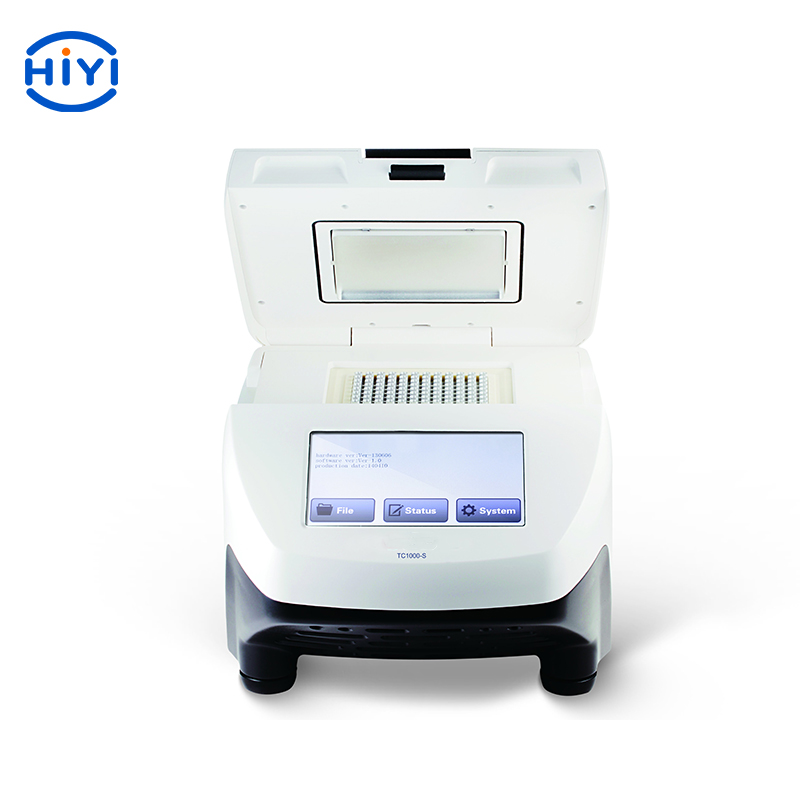

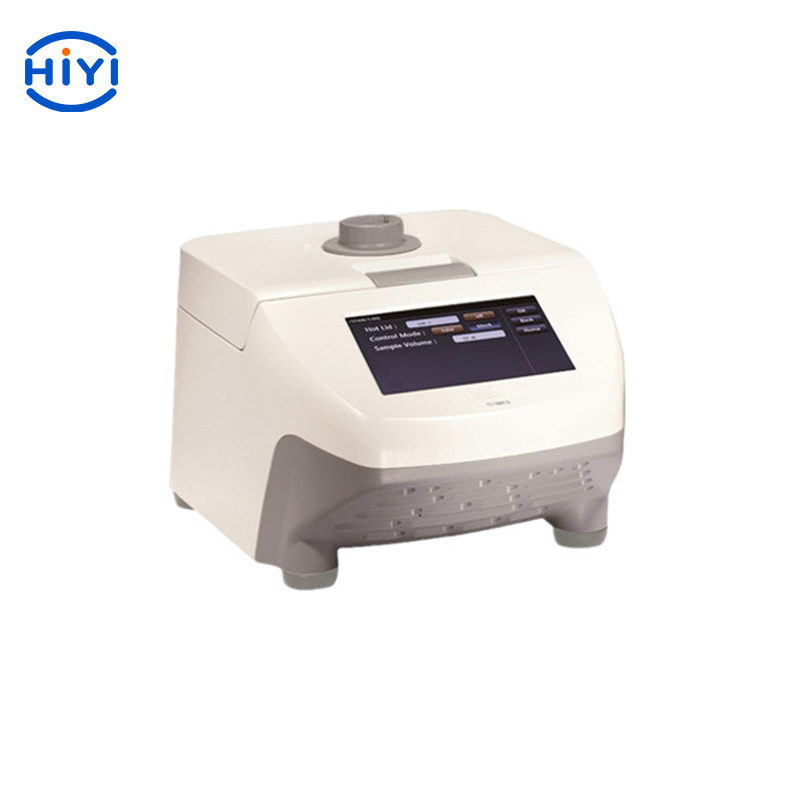

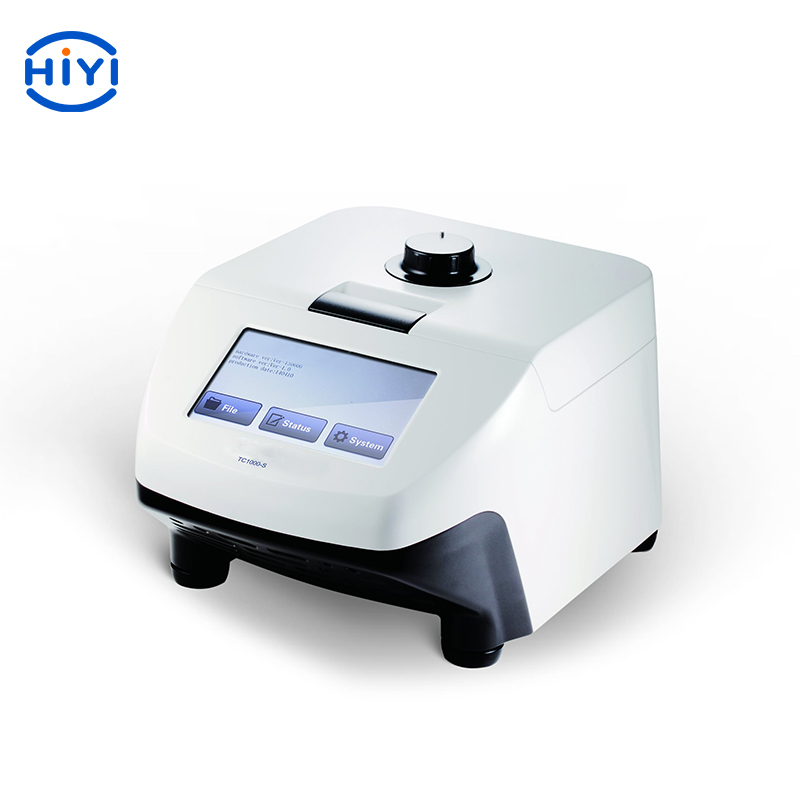

TC1000-S Standard Thermal Cycler



Features:

* Wide options of consumables: common PCR tubes, 8-well PCR strips and 96-well PCR plates can be used
* File customization, multi-file storage
* Power-off protection function, automatic program recovery
* Hot lid auto-off function: If module temperature is lower than 30 °C, the hot lid function will automatically turn off
* High performance Peltier and independentheating segments improving temperature control

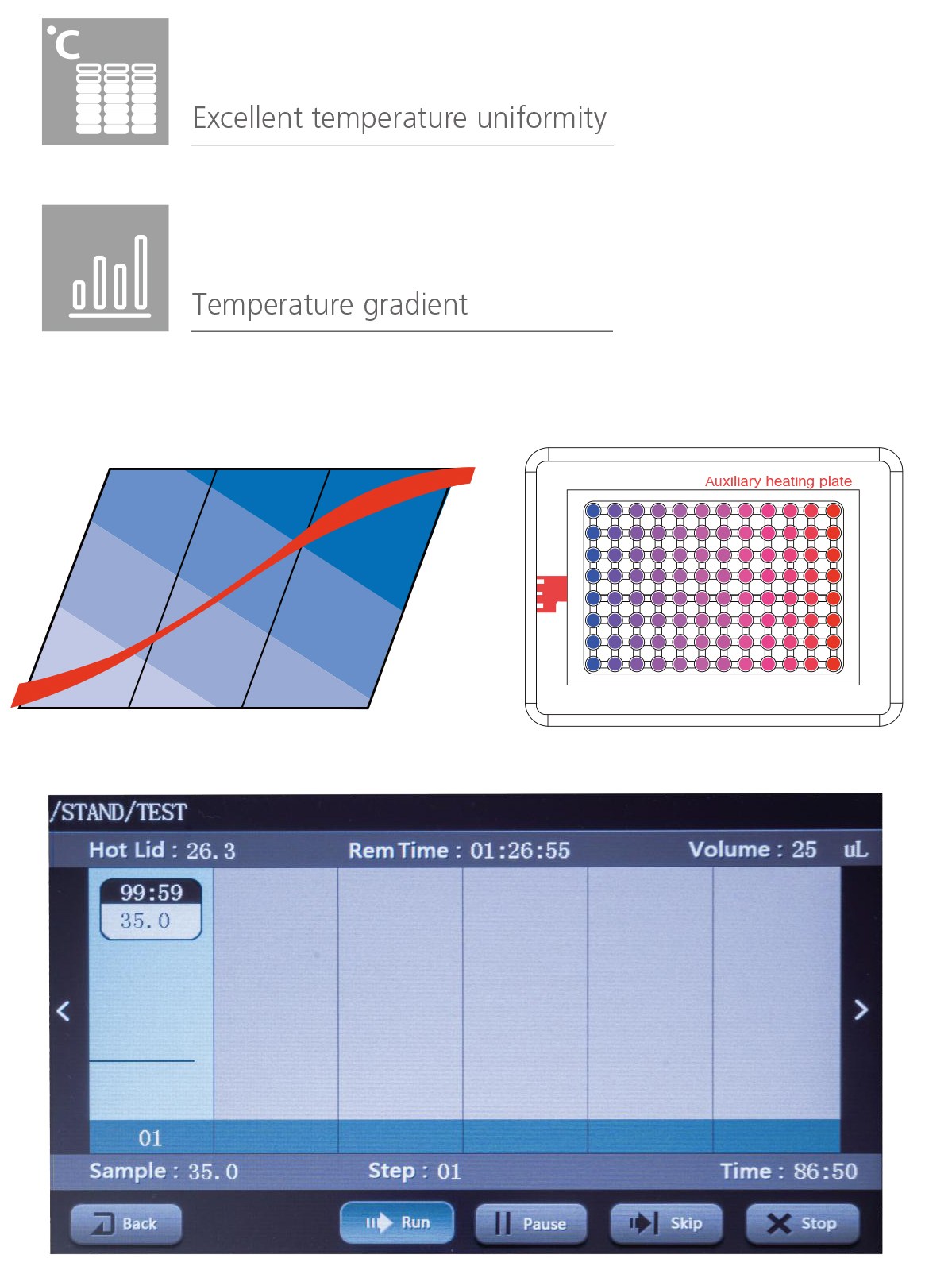

* Auxiliary heating mechanism diminishes the "edge effect" and enhance the temperature uniformity
* Wide touchdown PCR temperature range (-9.9°C~+9.9°C) and Long PCRtime range
   (-9min 59s~+9min 59s)
* Gradient temperature setting optimizestemperature easily in the single run
* Color touch screen with user friendlyinterface helps to edit programs easily
* Reliable heating/cooling elements and precise temperature control
* Unique design of block ensures the temperature uniformity and repeatable results
* 7 inch Large color touch panel screen for easy programming with user friendly software
* High performance DSP and temperature control
* Fast heating and cooling rate
* Large user program storage


Application:

The TC1000G/S is an essential laboratory instrument for Molecular Biology with applications such as sequencing, gene cloning, gene expression, mutagensis, and it is also used in areas such as drug discovery, agriculture, food industry, etc.

Specifications
TC1000-S
Sample Capacity
96X0.2mL PCR tube, 8X12 PCR plate or 96 well plate
Heating Temperature Range
4-105℃
Lid Temperature Range
30-110℃
Temperature Display Accuracy
±0.1℃
Temperature Control Accuracy [at 55℃]
±0.3℃
Temperature uniformity[at 55℃]
<0.3℃
Max. Heating/Cooling Rate
3℃/Sec
Adapter block material
aluminum
Display
7” LCD 800x480
Input
Touch panel
User defined file system
Max. 30 segments 99 cycles max. 16 folder and 16 files each folder
Power off protection
Yes
Power Supply
100-120V/200-240V,50/60Hz
Dimension [D×W×H]
( without the heating block )
280x370x250 mm
Weight
11kg
