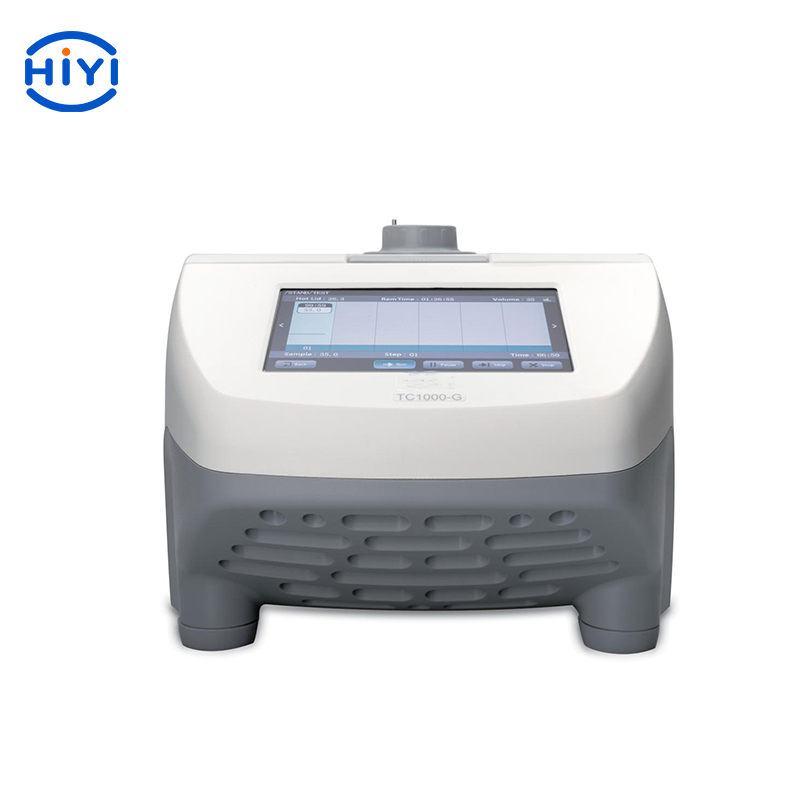

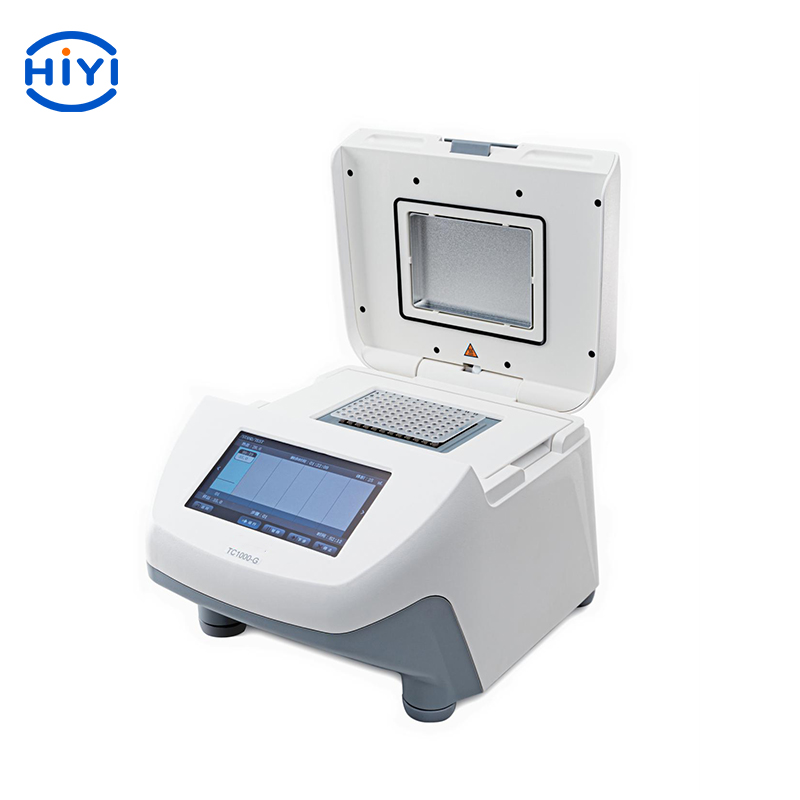

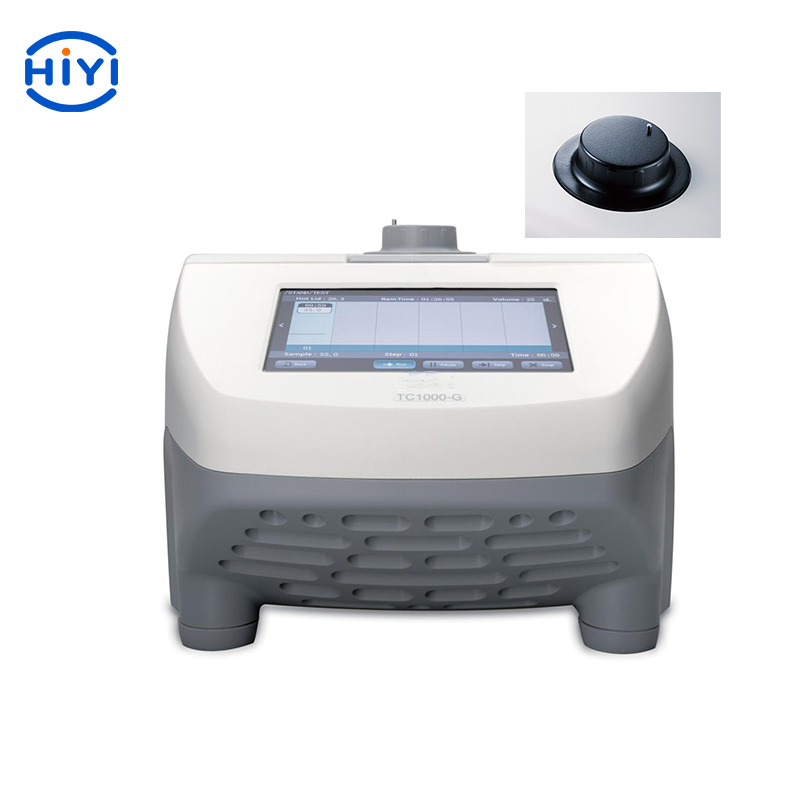

TC1000-G Gradient Thermo Cycler
Features:

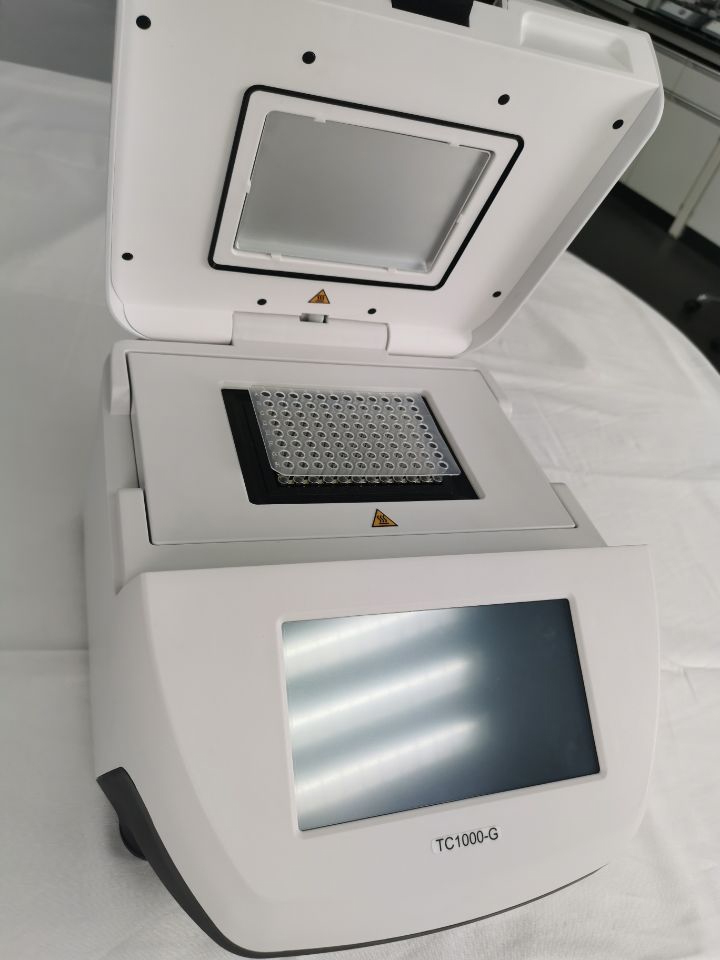

* Wide options of consumables: common PCR tubes, 8-well PCR strips and 96-well PCR plates can be used
* File customization, multi-file storage
* Power-off protection function, automatic program recovery
* Hot lid auto-off function: If module temperature is lower than 30 °C, the hot lid function will automatically turn off
* High performance Peltier and independentheating segments improving temperature control
* Auxiliary heating mechanism diminishes the "edge effect" and enhance the temperature uniformity
* Wide touchdown PCR temperature range (-9.9°C~+9.9°C) and Long PCRtime range (-9min 59s~+9min 59s)
* Gradient temperature setting optimizestemperature easily in the single run

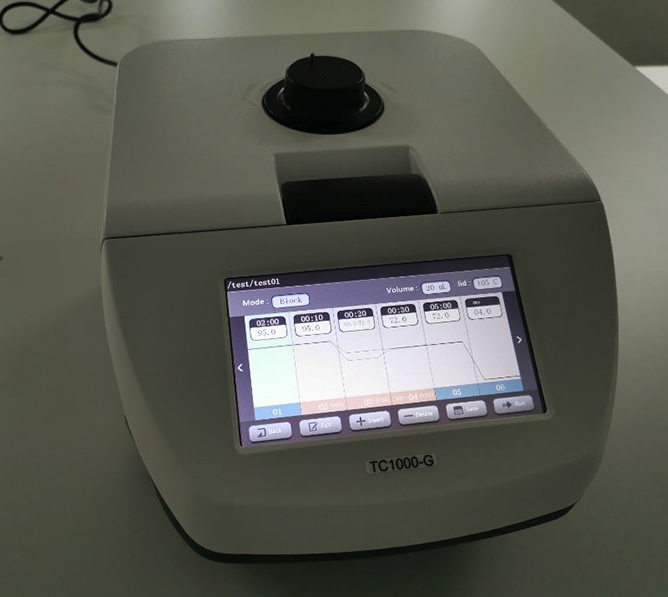

* Color touch screen with user friendlyinterface helps to edit programs easily
Application:
The TC1000G/S is an essential laboratory instrument for Molecular Biology with applications such as sequencing, gene cloning, gene expression, mutagensis, and it is also used in areas such as drug discovery, agriculture, food industry, etc.
Specifications | TC1000-G |
Sample Capacity | 96X0.2mL PCR tube, 8X12 PCR plate or 96 well plate |
Heating Temperature Range | 4-105℃ |
Lid Temperature Range | 30-110℃ |
Temperature Display Accuracy | ±0.1℃ |
Temperature Control Accuracy [at 55℃] | ±0.3℃ |
Temperature uniformity[at 55℃] | <0.3℃ |
Max. Heating/Cooling Rate | 5℃Sec |
Gradient Temperature Setting Range | 30-99℃ |
Gradient Range | 1-42℃ |

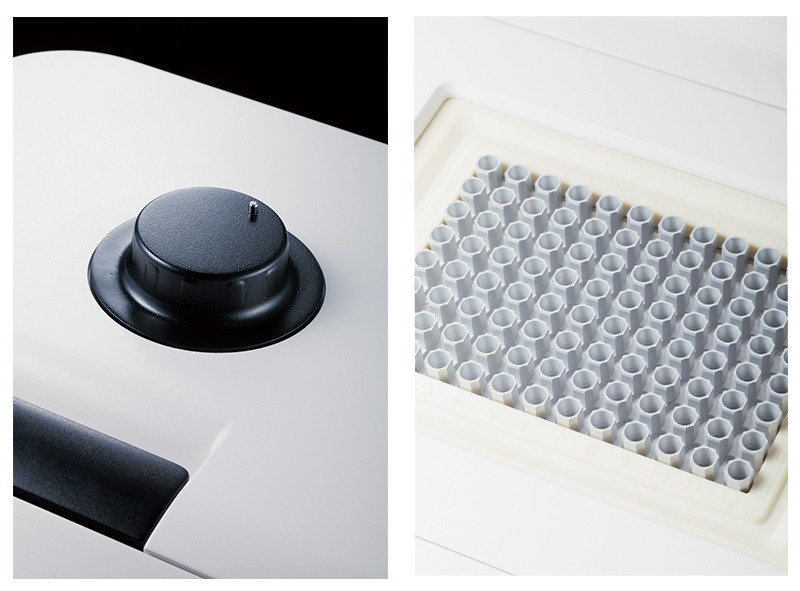

Adapter block material | aluminum |
Display | 7” LCD 800x480 |
Input | Touch panel |
User defined file system | Max. 30 segments 99 cycles max. 16 folder and 16 files each folder |
Power off protection | Yes |
Power Supply | 100-120V/200-240V,50/60Hz |
Dimension [D×W×H]
( without the heating block ) | 280x370x250 mm |
Weight | 11kg |
