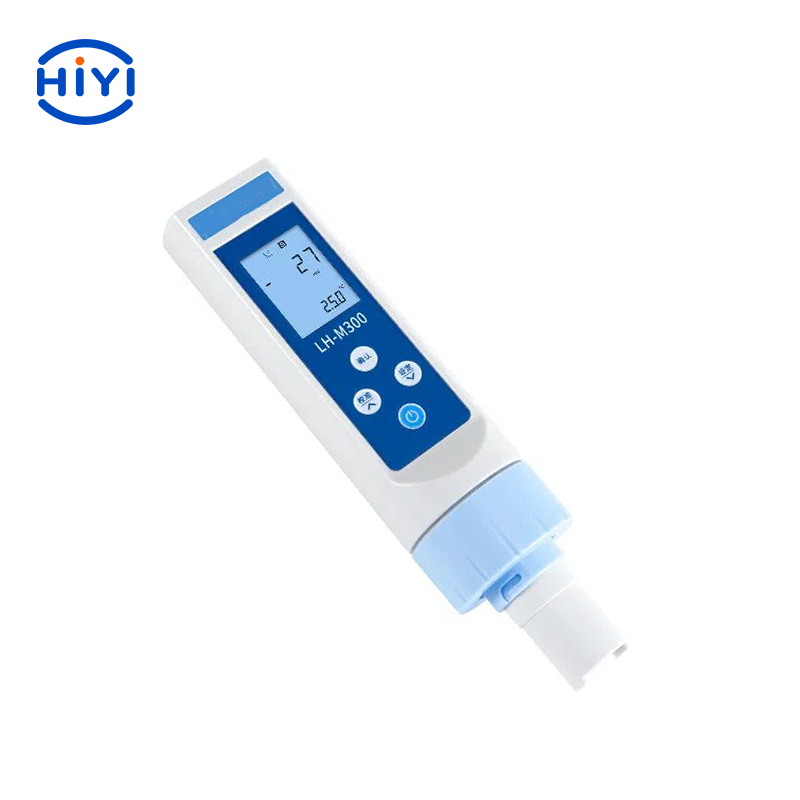

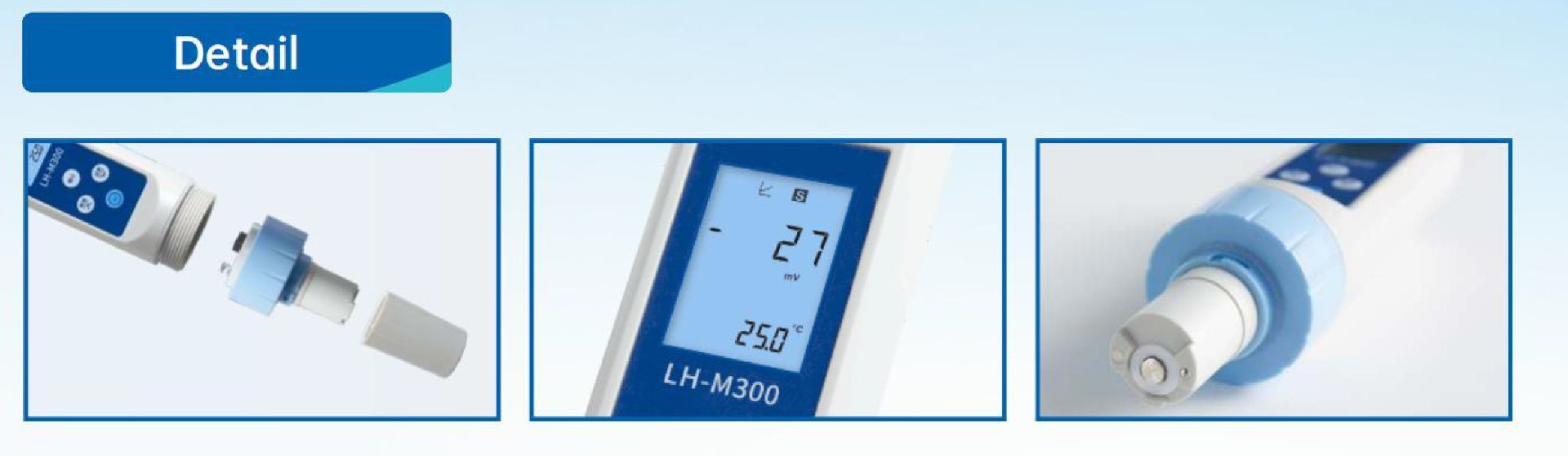

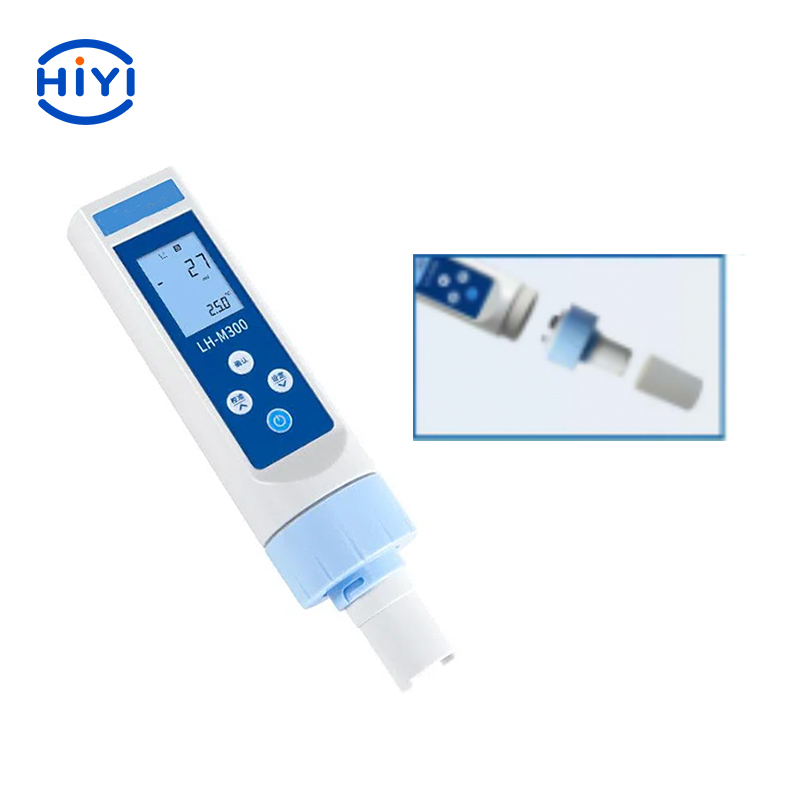

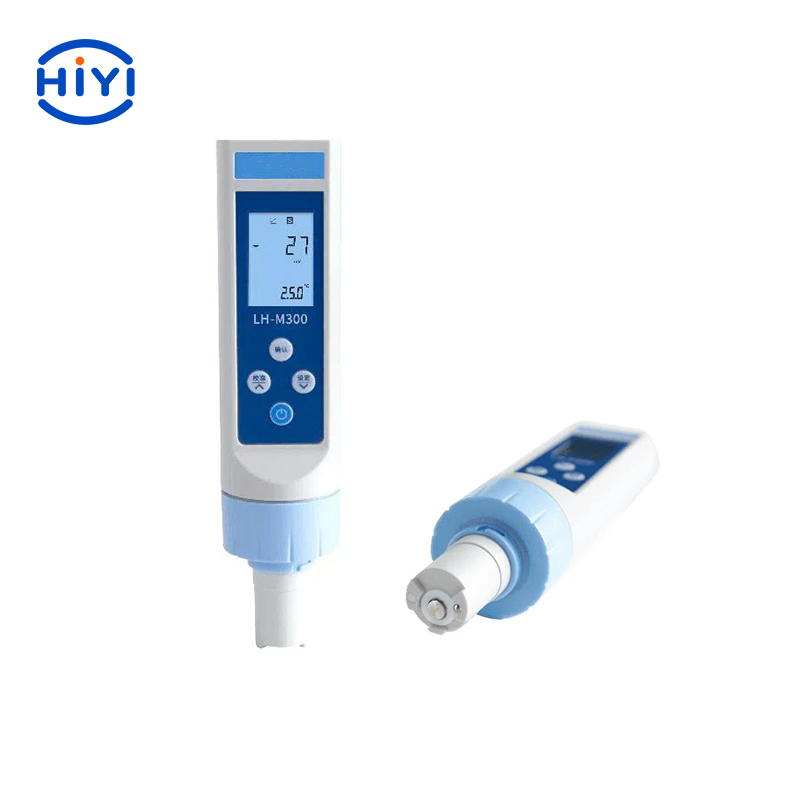

LH-M300 Product Pen Type ORP Meter

The LH-M300 ORP test pen is a product specially designed for testing the oxidation-reduction potential. It adopts a platinum round plane electrode, which has fast response, accurate and reliable measurement, exquisite and compact design concept, clear and easy-to-read data interface, and excellent resistance. Interference performance, combined with a high degree of backlighting, can complete the measurement operation with one hand, which can meet different measurement requirements, and test and track the millivolt value of the measured object anytime and anywhere.

Inquiry
(+86)010-5653 8958
  • Product description
  • Product parameter
  • Product video

LH-M300 Product Pen Type ORP Meter

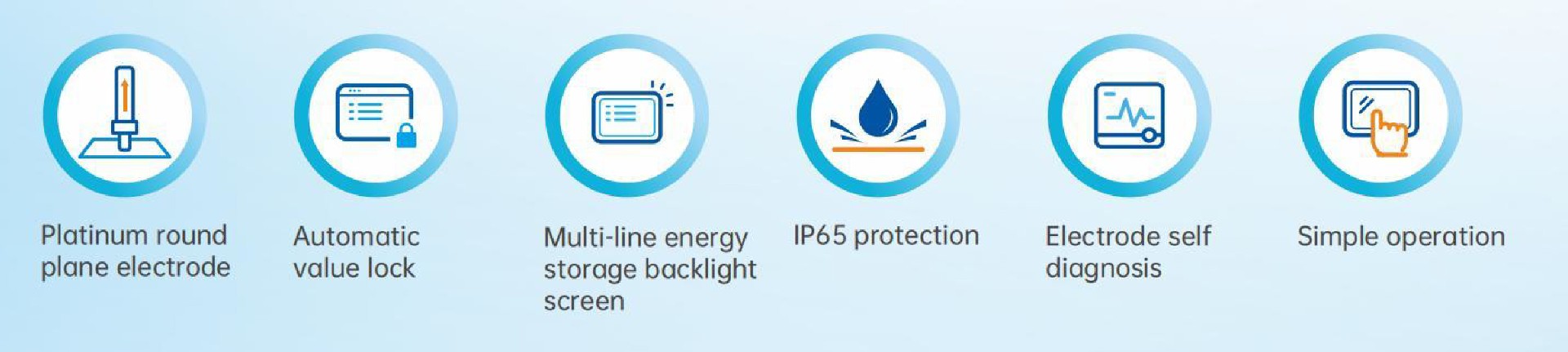

Features:

  • Values are automatically locked

  • Platinum round plane electrode

  • Multi-line energy storage backlit screen

  • IP65 protection level

  • Electrode self-diagnosis

  • Intuitive and simple operation


Application:


ItemInstrument electronic unit parametersComplete set of instrument measurement parameters
ORP・1000~+1000mV
ORP resolution1mV
ORP measurement accuracy±1mV±5%F.S
Temperature measurement range0-100.0°C/32-212°F
Operation temperature range0-60.0°C/52-140°F
Temperature resolution0.1°C/1°F±0.5°C
Calibration1 point(Calibration at any point in the full scale range)
ORP electrodeReplaceable platinum round plane electrode
Screen20*30mm Multi line LCD backlight display
Protection levelIP65
Auto backlight1 minute
Auto shutdown20 minutes
Power supply1*1.5V AAA Battery
Size185*40*48mm
Weight95g
