Emulsions/Suspensions Lab/At-line
Product Parameter Determination & Monitoring
The LUMiFlector® is a powerful measuring instrument for At-line and Inline product parameter determination & monitoring. The innovative patented MRS-Technology® is the core of the Inline and At-line instruments. It quantifies parameters of manifold products – no sample preparation, no chemicals.

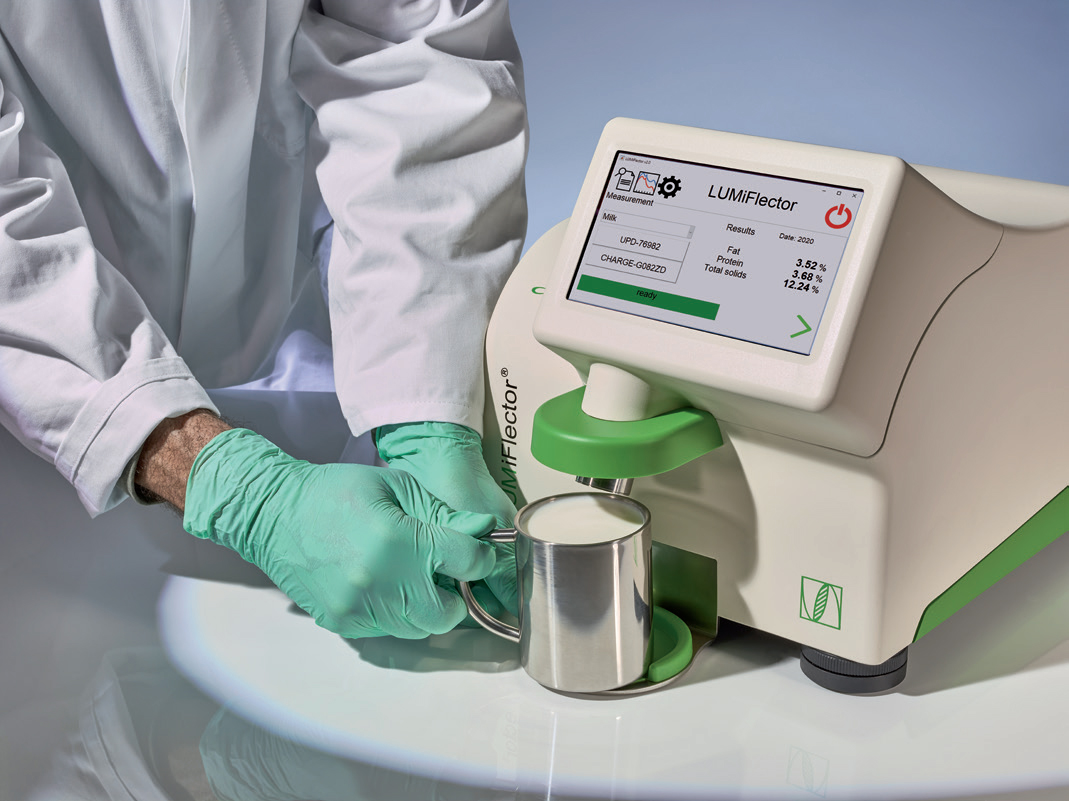

The At-line instrument is designed for process monitoring or quality control on a production site or in a laboratory. With its small footprint it can be easily placed besides the production line or in a QA/QC laboratory. The LUMiFlector® Lab is consumable free: no chemicals, no additional waste, no additional costs.
The optical interface is easily accessible and easy to clean, with just water and soap. The instrument comes with a self-explaining user-friendly interface only. A short training of the operator is sufficient, no need for complicated or time-consuming training. With just approximately 20 seconds per measurement, the LUMiFlector® saves your valuable time. Easy cleaning, handling, measurement, installation & operation guaranteed.
Features:
• Broad range of applications
• Fast monitoring
• Automatic process control
• Efficient screening and QA
• No preparation of the sample
• No use of chemicals
• No direct contact of sensors with the product
• Easy to clean & easy to handle
• Self-training
• Low maintenance
• Stable and robust system
Application:
Application fields include food, feed, pharmaceutical, biotechnology products and medical nutrition and beyond. The calibrations are tailor-made, either by LUM or yourself, and customized for your product. Simultaneous measuring and recording of up to 4 product parameters by one single measurement. Analysis modes for automatic analysis of up to eight different products can be loaded.
| Measurement parameters |
| Measuring principle | Scattering, Refraction, Fluorescence |
| Measurement time | < 20 s |
| Quantities | concentration of dispersed solids and/or liquid particles; customer-defined values |
| Sample |
| Type | Emulsions, Suspensions, Slurries |
| Volume | 200 ml (> 70 ml with customized cup) |
| Technical specifi cations |
| Light source(s) | UV-VIS-NIR |
| Measurement cup | Stainless steel |
| Calibrations (on-board) | UHT / ESL milk (fat, protein, total solids) |
| Ambient temperature | 10 to 35 °C |
| On-board data | up to 8 products programmable, 4 measurement quantities per product |
| Dimensions (W x H x D), weight | 30 x 30 x 58 cm , 12.5 kg |
