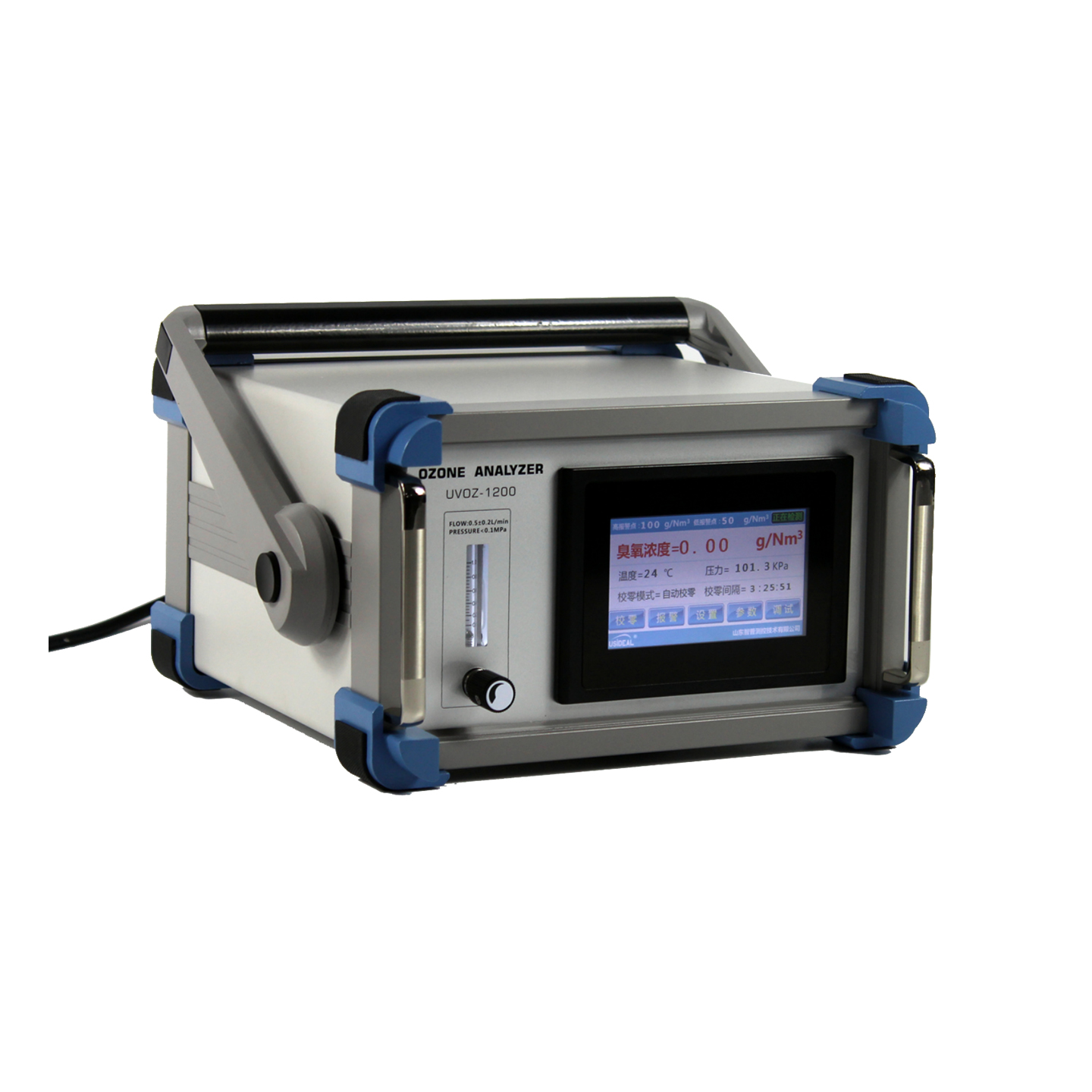

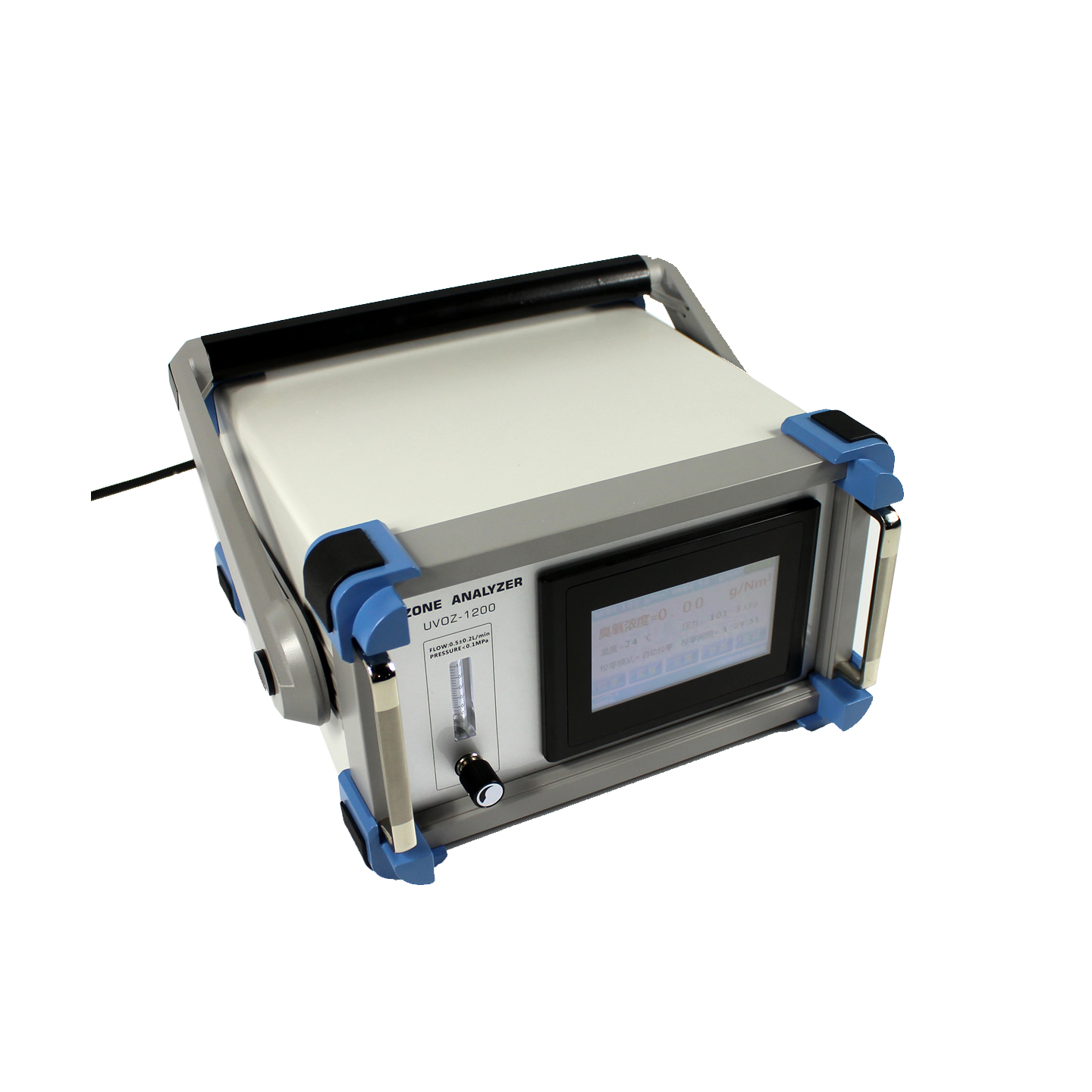

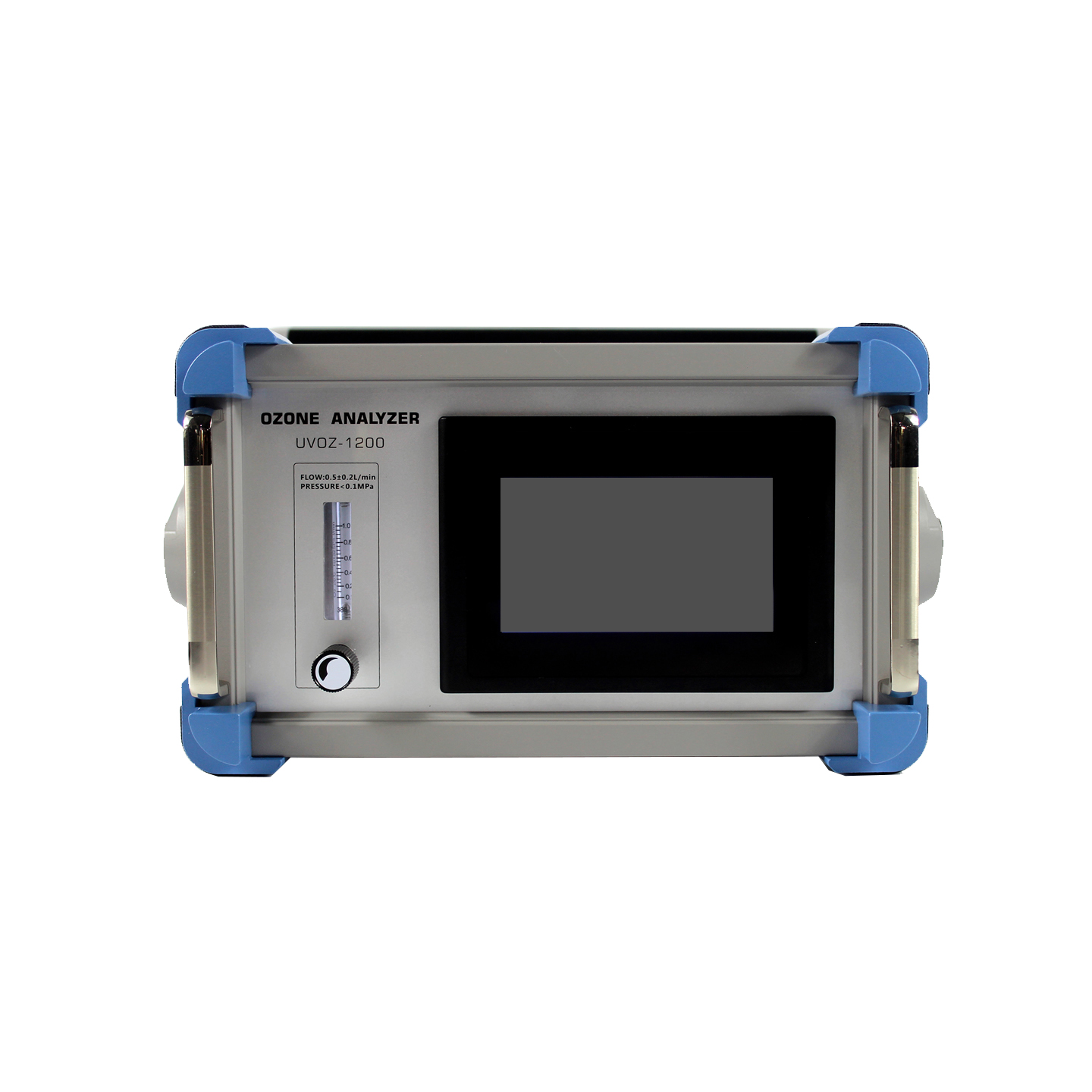

UVOZ-1200 Ozone Gas Analyzer
Details：
The UVOZ-1200 ozone gas analyser calculates the current ozone concentration by measuring the change in light signal intensity before and after ozone absorption of UV light. The equipment uses an advanced dual-light UV light source system with a lamp intelligent management system, which enables the UV lamp to reach the measurement state quickly after switching on. It is mainly used for continuous detection of ozone gas in various industrial environments, and can also be used to detect ozone gas in operating pipelines, vessels and other environments.
Features:
Measuring principle: accurate measurement by photometric absorption principle according to Lambert-Beer's law.
Light source system: Foreign long life UV light source system (wavelength 253.7nm), free 3 year warranty.
Usage: Indoor installation with power and signal terminals.
Light cell system: Separate light cell technology, no leakage, high pressure resistance, high flow sampling gas impact resistance.
Intelligent compensation: built-in temperature and pressure compensation and display, with automatic compensation of the light source.
Operation mode: User can choose between manual zero calibration and automatic zero calibration according to the operating status, automatic zero calibration time can be set.
Display units: g/Nm3, mg/NL, %WT, ppm , mg/Nm3 optional.
Data display: HD colour touch screen, high concentration range setting for incoming gas mass flow rate, real time display of yield.

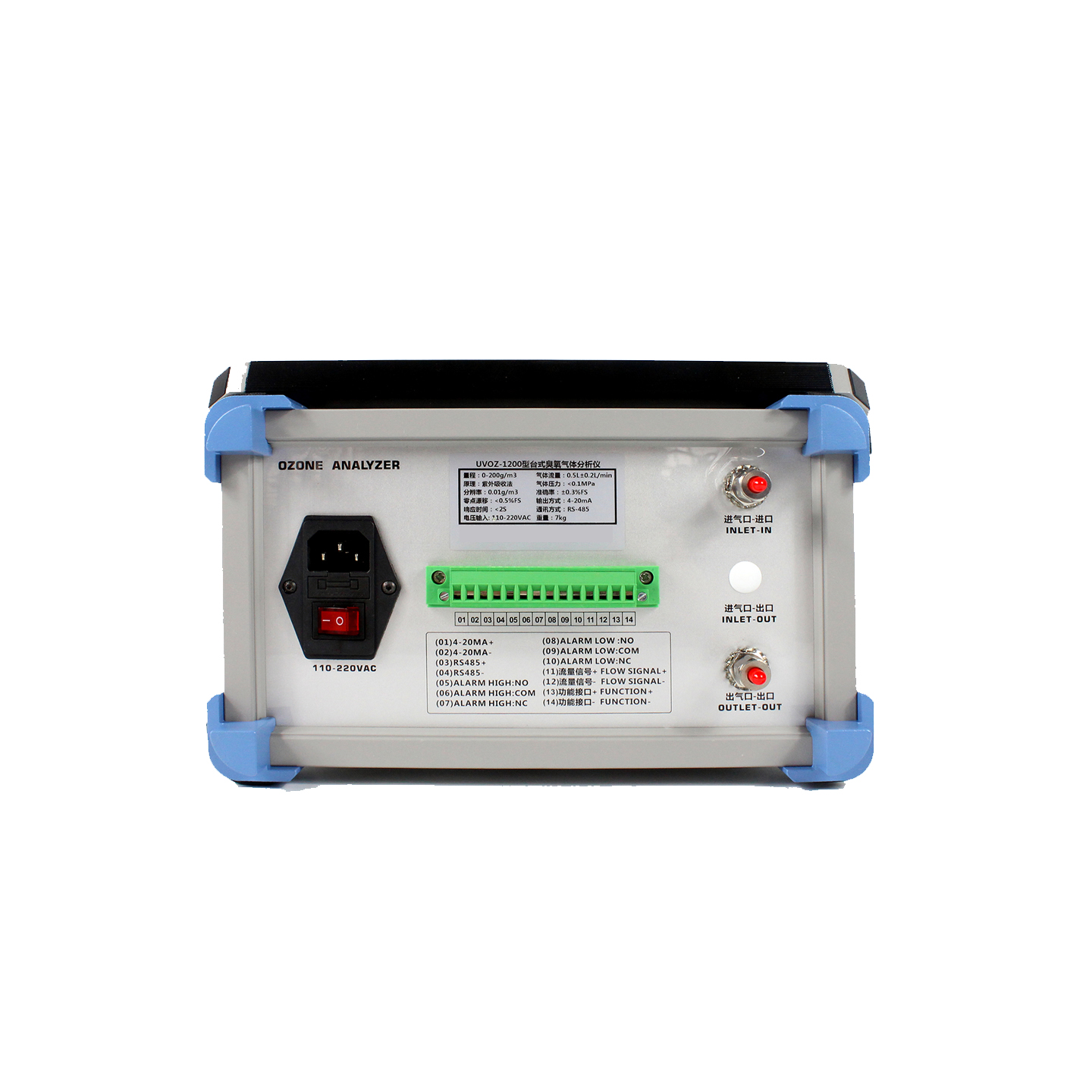

Output functions: 4-20mA, RS485 communication, two sets of alarm point output, electronic flow meter input, etc.
Standard configuration: anti-corrosion flow meter, ozone tail gas destroyer, inlet gas filter.
Application:
is widely used in pharmaceutical, chemical, municipal and wastewater treatment industries for the measurement of ozone generator outlet concentration and ozone generator output.
| Model | UVOZ-1200 |
| Measuring range | 0-200g/Nm3 |
| Optional ranges | 0-300g/Nm3, 0-100g/Nm3, 0-50g/Nm3, 0-1000ppm |
| Light source life | Approx. 30,000 - 50,000 hours |
| Sampling method | positive pressure sampling, negative pressure sampling (optional) |
| Display interface | 4.3" touch screen operator interface |
| Content interface | Ozone concentration, temperature, pressure |
| Auxiliary functions | Temperature compensation, pressure compensation |
| Display units | g/Nm3, mg/NL, %WT optional |
| Display resolution | 0.01g/Nm3 |
| Gas flow | 0.5L ± 0.2L/min |
| Input pressure | <0.1 MPa |
| Concentration error | 0.3% FS max |
| Linearity error | 0.2% FS max |
| Zero point drift | <±0.3%.FS |
| Response time | 0.03 s for signal, 0.3 s for display |
| Ambient temperature | -20 to 50°C |
| Piping connection | Quick screw (stainless steel) |
| Tandem sample aperture | Φ8 (8mm*6mm) (optional) |
| Bypass sampling aperture | Φ6 (6mm*4mm) |
| Communication method | RS-485 |
| Output mode | 4-20mA (active) |
| Relay signal | Relay signal for high alarm point, relay signal for low alarm point |
| Power supply | AC 110-220V |
| Dimensions | 160mm (H) x 260mm (W) x 300mm (D); |
| Note | 1mg/L = 1g/m3 = 467PPM. |
| Free warranty | 24 months (mainframe sensor) |
