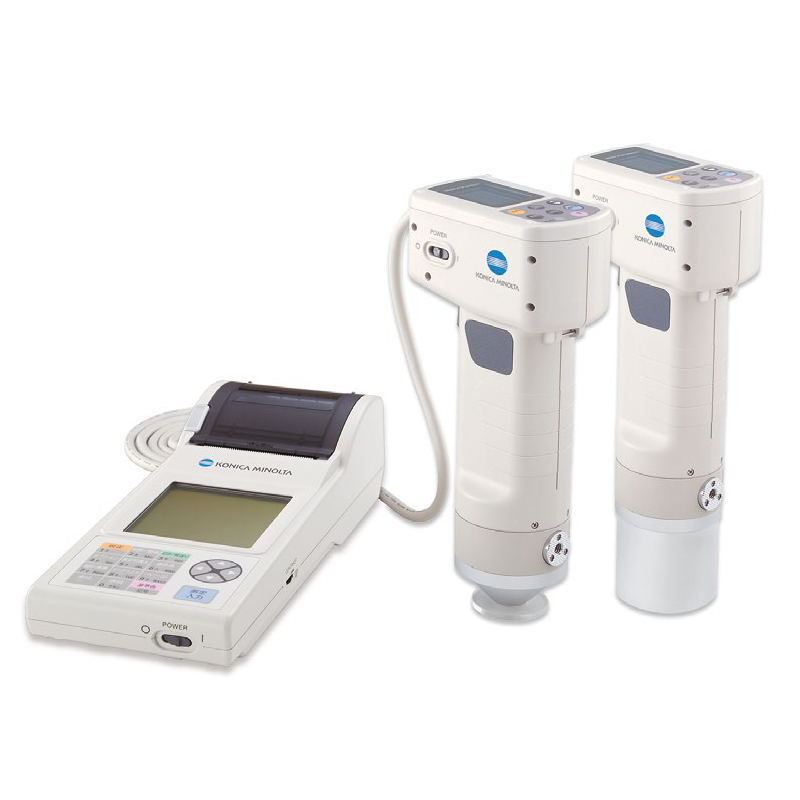

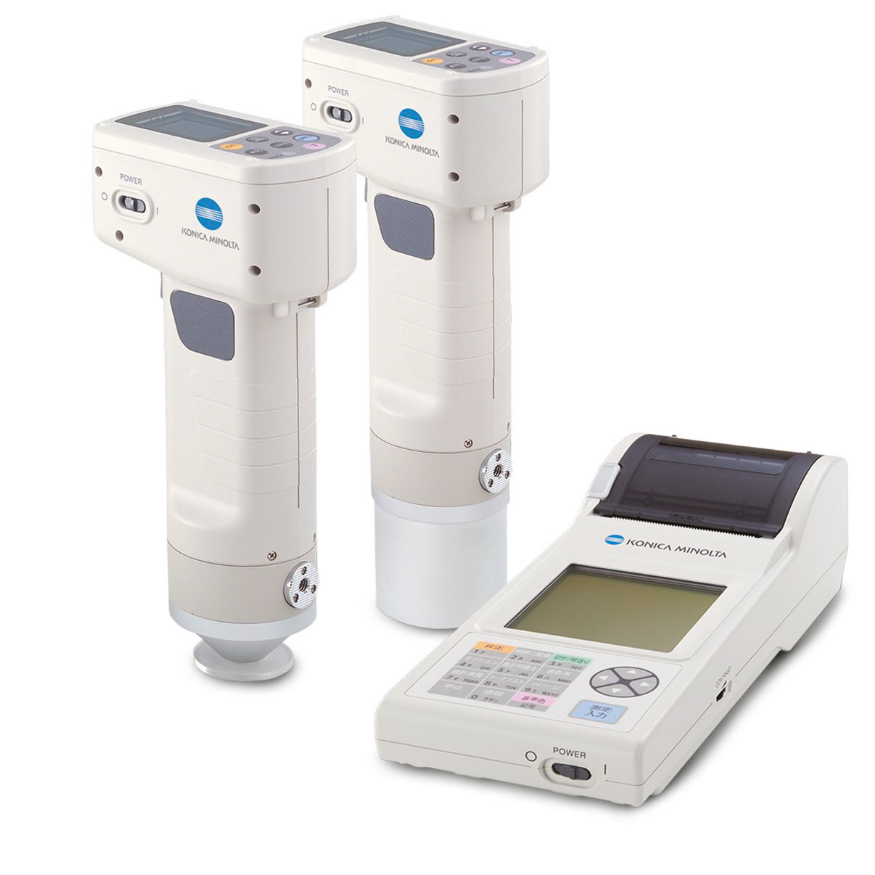

Model | CR-400 | CR-410 |
Illumination / Viewing system | d:0° (diffuse illumination/0° viewing angle; specular component included)
(compliant with JIS Z 8722; including regular reflectance) | Wide-area illumination/0° viewing angle; specular component included) |
Detector | Silicon photocells (6) |
Display range | Y: 0.01% to 160.00% (reflectance) |
Light source | Pulsed xenon lamp |
Measurement time | 1 sec. |
Minimum measurement interval | 3 sec. |
Battery performance | Approx. 800 measurements (when using batteries under Konica Minolta's testing conditions) |
Measurement/ illumination area | Ø 8 mm / Ø 11 mm | Ø 50 mm / Ø 53 mm |
Repeatability | Within ΔE*ab 0.07 standard deviation (when the white calibration plate is measured 30 times at intervals of 10 seconds) |
Inter-instrument agreement | ΔE*ab: Within 0.6
Average of 12 BCRA Series II colours | ΔE*ab: Within 0.8
Average of 12 BCRA Series II colours |
Observer condition | CIE: 2° Standard Observer |
Illuminant condition | CIE: C, D65 |
Tolerance judgment* | Colour difference tolerance (box tolerance and elliptical tolerance) |
Colour spaces / colourimetric data | XYZ, Yxy, L*a*b*, Hunter Lab, L*C*h, Munsell (Illuminant C only), CMC (l:c), CIE1994, Lab99, LCh99, CIE2000, CIE WI/Tw (Illuminant D65 only), WI ASTM E313 (Illuminant C only), YI ASTM D1925 (Illuminant C only), YI ASTM E313 (Illuminant C only), User index (Up to 6 can be registered from computer) |
Languages* (Display) | LCD: English (default), German, French, Italian, Spanish, Japanese |
Storable data sets | 1,000 (Measuring head and data processor save different data) |
Colour-difference target colours | 100 |
Calibration channels* | 20 channels (ch00: White calibration; ch01 to ch19: User calibration) |
Display* | Chroma values; color difference values; PASS/WARN/FAIL display |
Interface / Baud rate* | RS-232 compliant (for data processor/PC)
* Baud rate: 4,800, 9,600, 19,200 (bps); Set at 9600 when shipped from factory |
Power source | Four AAA size alkaline or Ni-MH batteries
AC Adapter AC-A305 AC100 - 240 V 50/60Hz |
Dimensions (W x H x D) | 102 × 244 × 63 mm |
Weight | Approximately 550 g
(including 4 AAA size batteries and not including RS-232C cable) | Approximately 570 g
(including 4 AAA size batteries and not including RS-232C cable) |
Operating temperature/ humidity range | 0 - 40°C, relative humidity 85% or less with no condensation |
Storage temperature/ humidity range | -20 - 40°C, relative humidity 85% or less with no condensation |
Other | LCD backlight ON/OFF function (When on, backlight stays ON for 30 seconds after last key or measurement operation) |
Standard accessories | White Calibration Plate CR-A43; Protective Cap CR-A72; Wrist Strap CR-A73; AC Adapter AC-A305; 4 AAA size batteries | White Calibration Plate CR-A44; Protective Cap CR-A72; Wrist Strap CR-A73; AC Adapter AC-A305; 4 AAA size batteries |

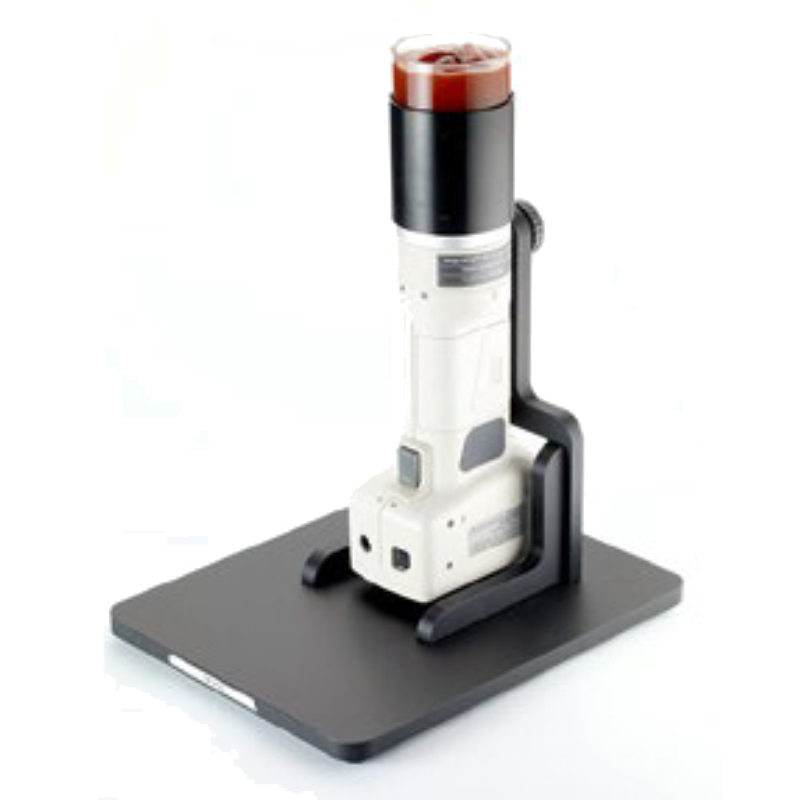

Optional accessories | Hard Case CR-A103; RS-232C Cable CR-A102 (for PC); Granular Materials Attachment CR-A50; CR-400 Utility Software CR-S4w; Color Data Software SpectraMagic NX CM-S100w ; Glass Light-Projection Tube CR-A33a/f; Light-Projection Tube CR-A33c/d; Pivoting Base CR-A12 | Hard Case CR-A103; RS-232C Cable CR-A102 (for PC); Granular Materials Attachment CR-A50; CR-400 Utility Software CR-S4w; Color Data Software SpectraMagicNX CM-S100w ; Glass Light-Projection Tube CR-A33e |
