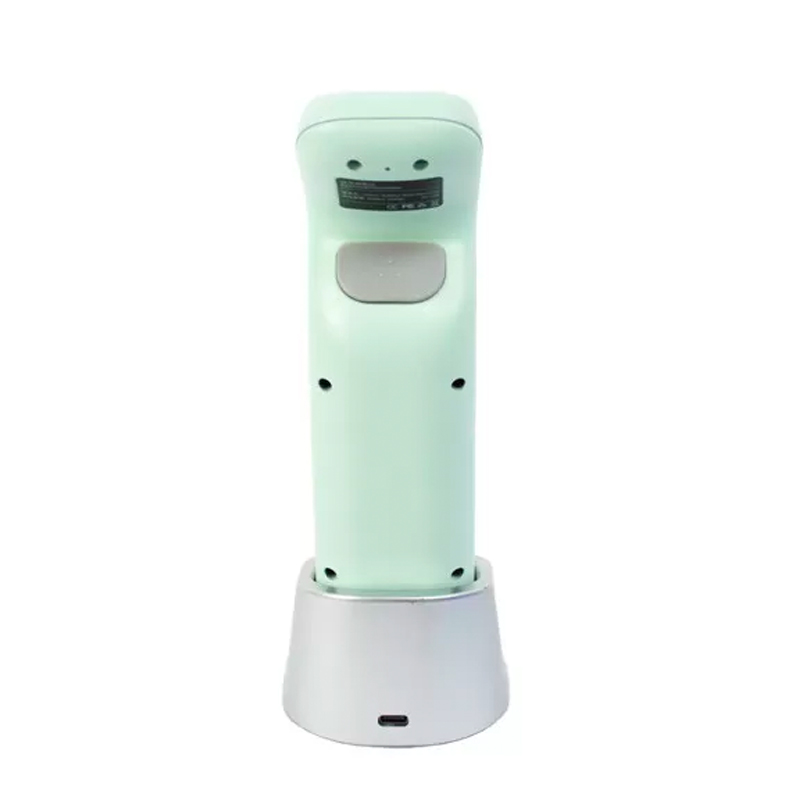

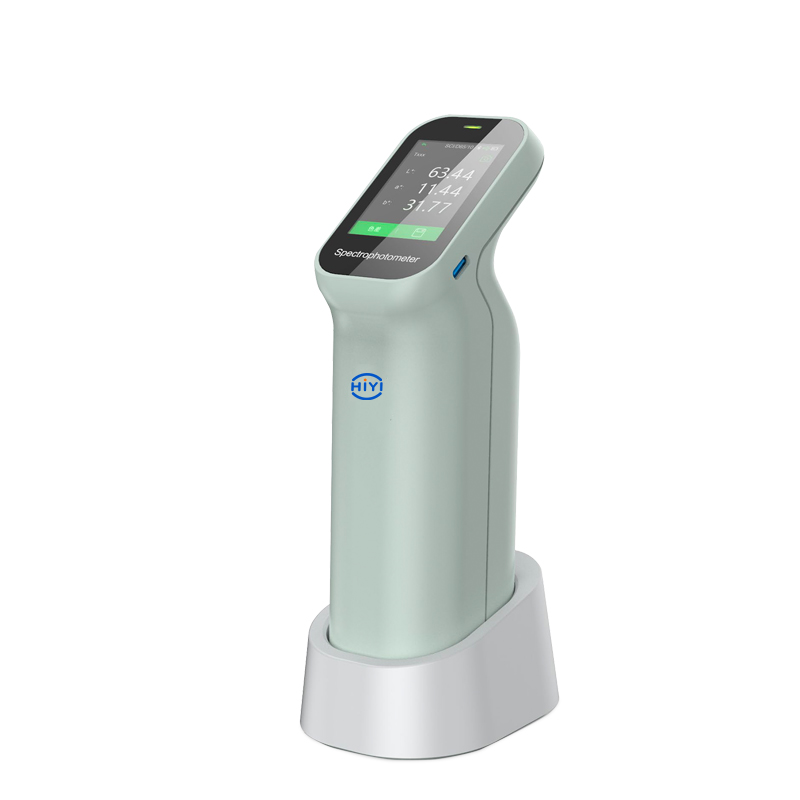

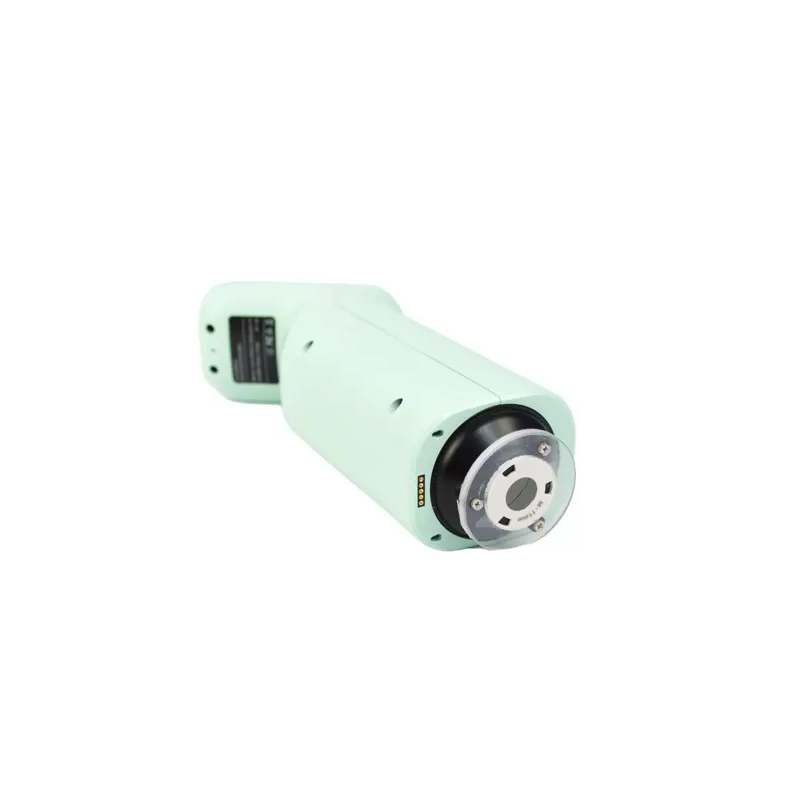

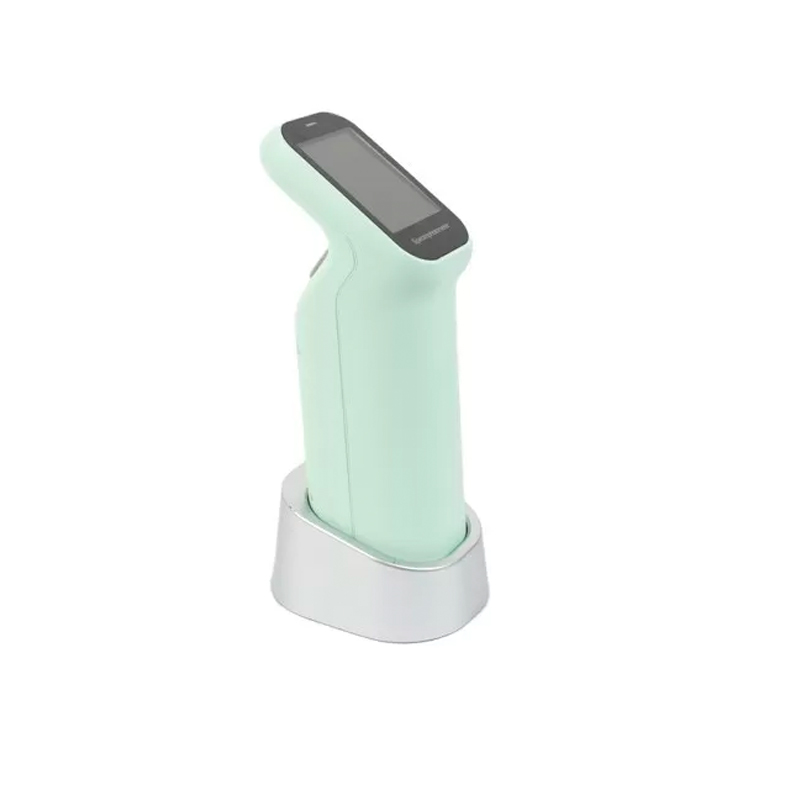

CS410 Spectral Colorimeter

Color

Green

Geometry

D/8 (diffused illumination,8 degree viewing)

SCI (specular component included),SCE (specular component excluded)

Repeatability

Chromaticity Value:

Standard deviation ΔE*ab≤ 0.04

Average : dE*ab≤ 0.05

Max.: dE*ab≤ 0.08

(when a white tile is measured 30 times at 5 seconds interval)

Inter-instrument Agreement

ΔE*ab≤0.4

Display Accuracy

0.01

Test Aperture

Φ8mm

Φ4mm

Φ4mm+8mm

Color Space and Indices

Reflectance, CIE-Lab, CIE-LCh, Hunter Lab, CIE-Luv, XYZ, Yxy, RGB, Color Difference (ΔE*ab, ΔE*cmc, ΔE*94, ΔE*00), Whiteness Index (ASTM E313-00, ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube Berger Stensby), Yellowness Index(ASTM D1925, ASTM E313-00, ASTM E313-73), Blackness Index(My,dM), Staining Fastness, Color Fastness, Tint(ASTM E313-00), Color Density CMYK(A,T,E,M), Metamerism Index Milm, Munsell, Opacity, Color Strength

Illuminants

A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84

Support Color Matching Software

No

Light Source

LED

Camera

NO

Calibration

Auto

Software

Windows

Accuracy guarantee

Pass National Metrology Level I

Observer

2°，10°

Sphere Size

40mm

Standard

Conform to CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7

Spectroscopic Method

Integrated optics

Sensor

CMOS Sensor

Wavelength interval

10nm

Wavelength Range

400-700nm

Reflectance Range

0-200%

Reflectance Resolution

0.01%

Reflectance Resolution

0.01%

Measurement Time

About 1 second

Screen

IPS full color screen ,2.4 inches

Battery

Rechargeable, 8,000 times continuous tests, 3.7V/3000mAh

Light Source Lifetime

10 years, 1 million tests

Language

Chinese and English

Storage

APP Mass Storage
