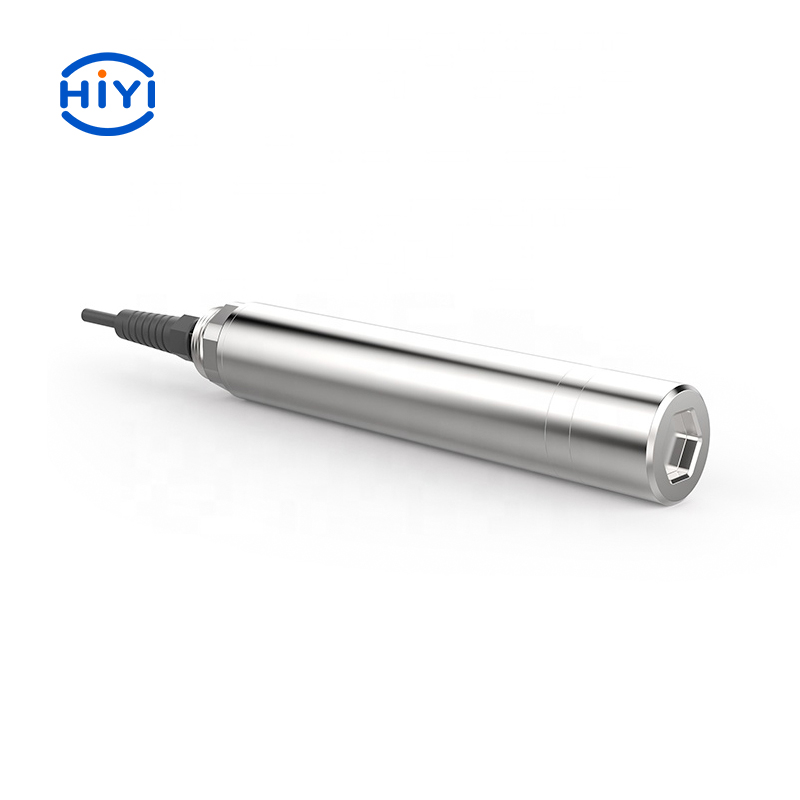

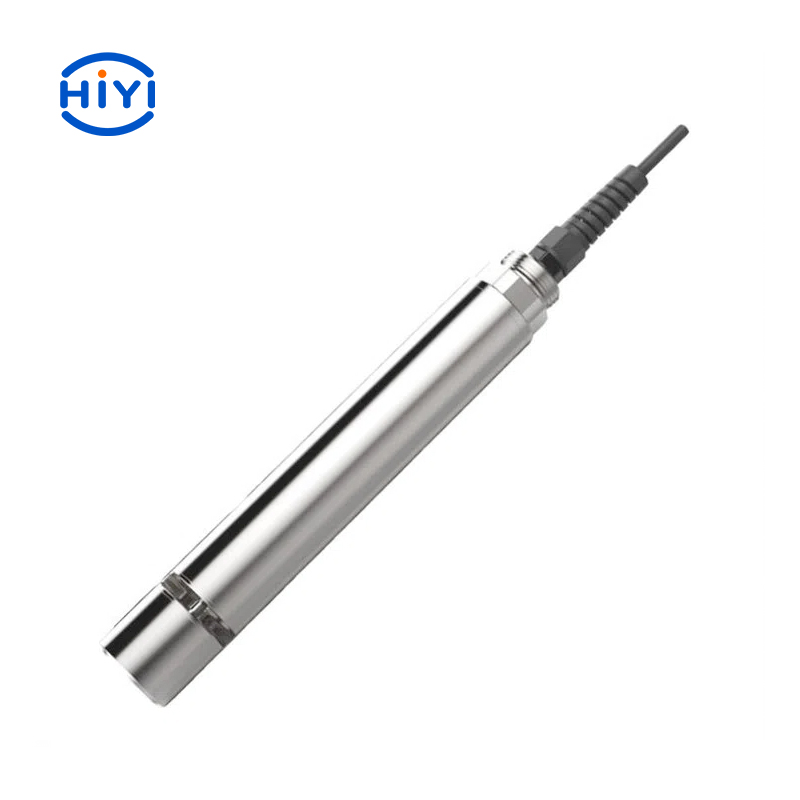

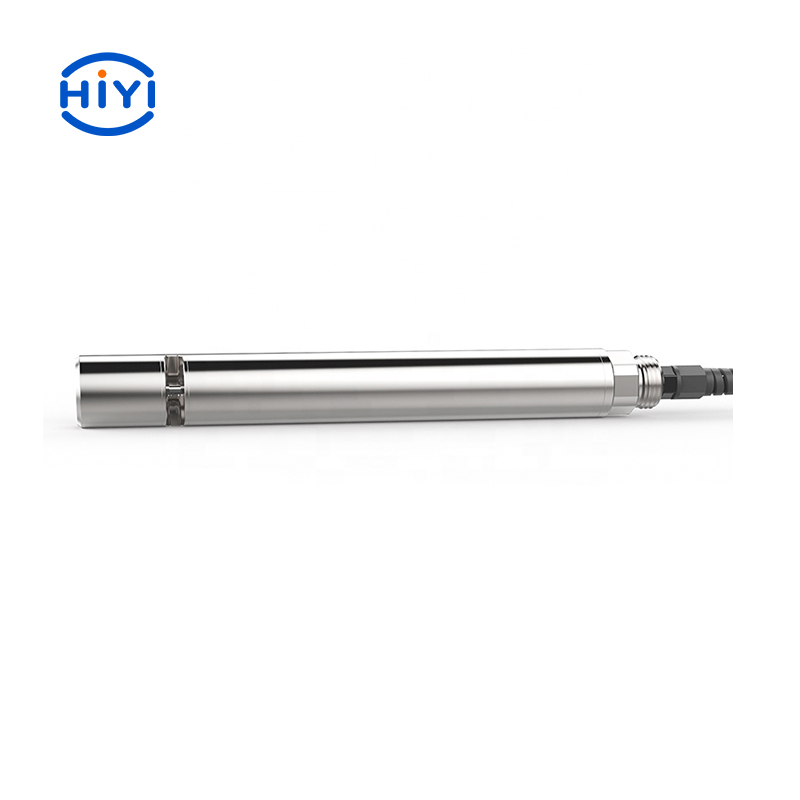

LH-DC18 UV254 Online COD Analyzer

This instrument uses 254nm deep ultraviolet LED, which is small in size and long in life.The 254nm deep ultraviolet beam is absorbed by the organic matter dissolved in the water during the transmission process, and the degree of absorption is proportional to the concentration of organic matter, so that the content of organic pollutants in the sample can be evaluated by measuring the absorbance of the deep ultraviolet beam,The built-in 565nm wavelength light source is used for turbidity compensation, effectively eliminating turbidity interference.

Inquiry
(+86)010-5653 8958
  • Product description
  • Product parameter
  • Product video

LH-DC18 UV254 Online COD Analyzer



Features:

• Optical measurement, no reagents, no pollution.

• Built-in 254nm and 565nm dual optical paths, automatically compensate for turbidity interference.

• Comes with wiper, with automatic cleaning function to prevent biological attachment.

• Imported LED light source, with small drift, fast response, and more accurate measurement.

• The size is small, the installation is more convenient, and the water quality can be monitored online without interruption.

• Digital sensor, RS-485 interface, Modbus/RTU protocol.

Application:


COD range0-600 mg/L equiv.KHP
COD accuracy±5%F.S
COD resolution0.1mg/L
Turbidity range0-300NTU
Turbidity accuracy±5%F.S
Turbidity resolution0.1NTU
Operating5~40°C
Deepest depth10 meters underwater
Digital interfaceMODBUS/RS485
Analog interface4-20mA
Powered by12-24VDC
CalibrationOne or two point calibration
Protection levelIP68
Installation methodFlow cell installation, immersion installation
Size4>34x232mm
Cable length5 meters (default)
