Key Features
• Precise temperature control for heating and cooling
• Flexible adapter selection
• Programmable
• Compatible with various tubes
• Quick interchange of blocks with magnet adhesion technology and without any tools
• Block equipped with a lid for heat preservation

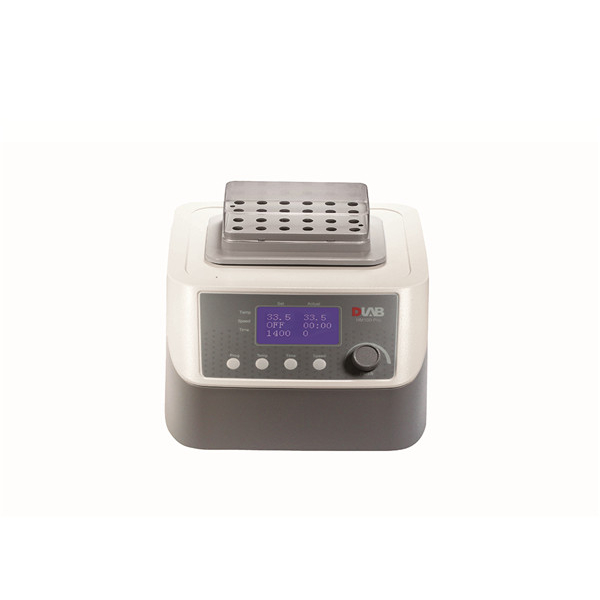

| Specifications | HC110-Pro |
| Functions | Heating & cooling |
| Temperature range | Heating: room temp. - 110°C Cooling: room temp. - below room temp. 25°C |
| Temperature control accuracy[@20–45°C] | ± 0.5°C |
| Temperature uniformity[@20–45°C] | Max.± 0.5°C |
| Max. heating rate | 5.5°C/min |
| Max. cooling rate | 2.5°C /min(100°C-room temp.)
0.5°C/min(below room temp.) |
| Program | 9 |
| Screen | TFT |
| Overheating protection | 150°C |
| Adapter block material | aluminum |
| Voltage, Frequency | DC12V,100–240V,50/60Hz |
| Power | 200W |
Dimension [D×W×H]
( without the heating block ) | 200×235×120mm |
| Weight | 7.3kg |
| Cat. No. | P/N | Descriptions | Power supply |
| 5062102100 | HC110-Pro | LCD digital Thermo Mix with heating, cooling,with 1pcs heating block for free (select a size in the ) | USA plug,100V-120V/50Hz/60Hz |
| Cn plug, 200V-240V/50Hz/60Hz |
| Euro plug, 200V-240V/50Hz/60Hz |
| UK plug, 200V-240V/50Hz/60Hz |
| Cat. No. | P/N | Descriptions |
| 18900238 |
| Heating block, used for 0.5mL tubes, 24 holes |
| 18900237 |
| Heating block, used for 1.5mL tubes, 24 holes |
| 18900239 |
| Heating block, used for 2mL tubes, 24 holes |
| 18900240 |
| Heating block, used for 5mL tubes, 8 holes |
| 18900241 |
| Heating block, used for 15mL tubes, 8 holes |
| 18900242 |
| Heating block, used for 50mL tubes, 4 holes |
| 18900243 |
| Heating block, used for 0.2ml/96 well PCR plate |
| 18900244 |
| Heating block, used for 96/384 microplate |
| New blocks for eppendorf tube |
| 18900353 | Heating block, used for 5mL tubes, 8 holes |
| 18900354 | Heating block, used for 5mL tubes, 8 holes, cone bottom, only for new machine |
| 18900355 | Heating block, used for 15mL tubes, 8 holes |
| 18900356 | Heating block, used for 50mL tubes, 4 holes
|
