Model | YL4560 |
Optical Geometry | 45/0 method(45 ring-shaped illumination, vertical viewing);Conforms to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM
E1164,DIN5033 Teil7,GB 2893,GB/T 18833 |

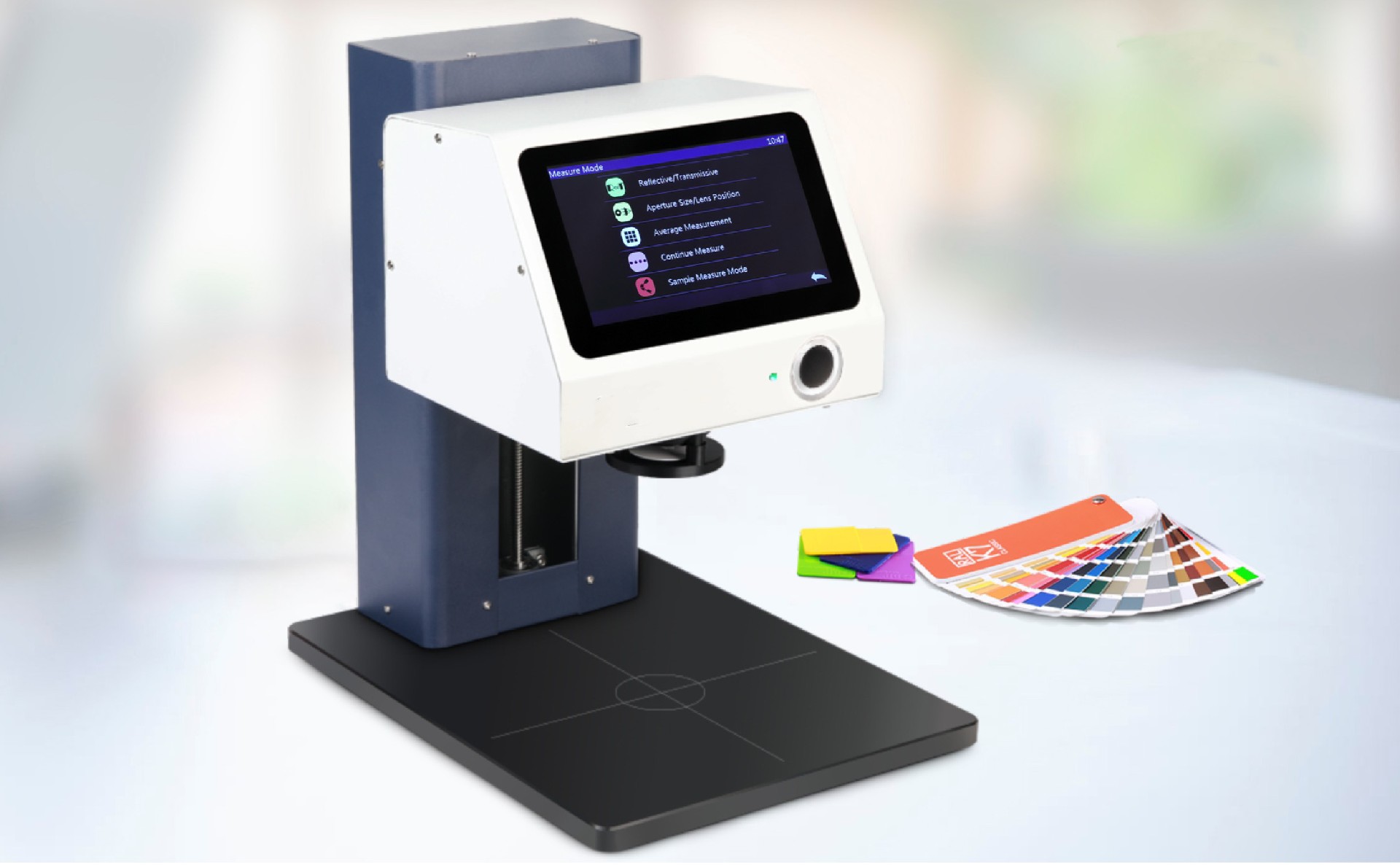

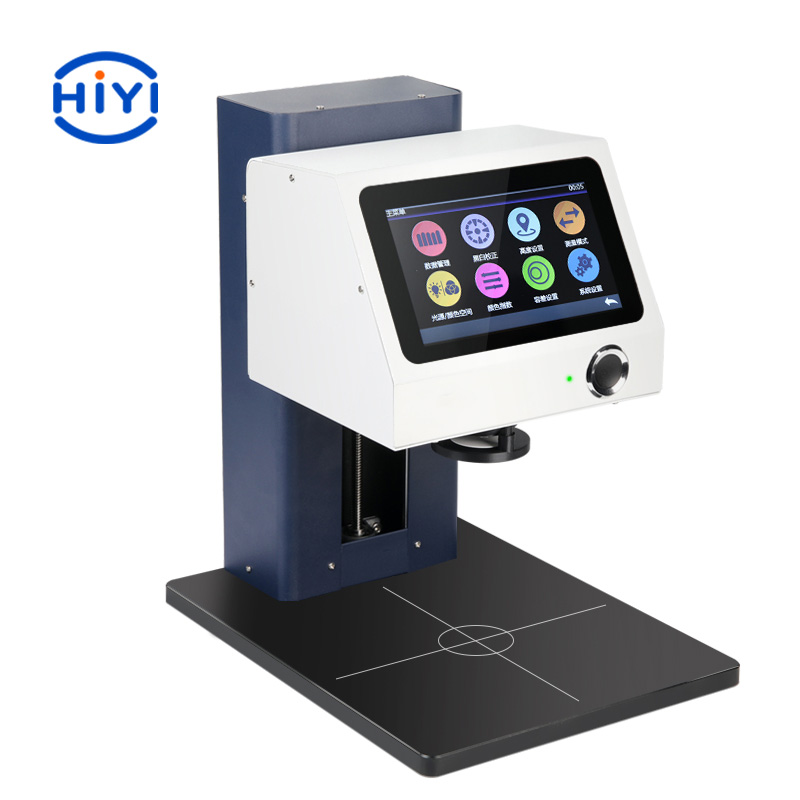

Features | 45/0 non- contact benchtop spectrophotometer can achieve precise non- contact measurement between the measuring probe and the
sample like liquids, sauces, powders, etc. It can be applied for accurate color analysis and transmission In laboratories and R &
D industries; It can also be used for accurate color measurement and quality control of automated production lines; It is widely
used in cosmetics, fruits and vegetables, food hygiene, plastic electronics, paint and ink, printing, ceramics and other
industries, and also for fluorescence sample measurement. |
Light Source | Full spectrum LED light,UV light |
Spectrophotometric Mode | Concave Grating |
Sensor | 256 Image Element Double Array CMOS Image Sensor |
Wavelength Range | 400~700nm/10nm output |
Reflectance Range | 0~200% |

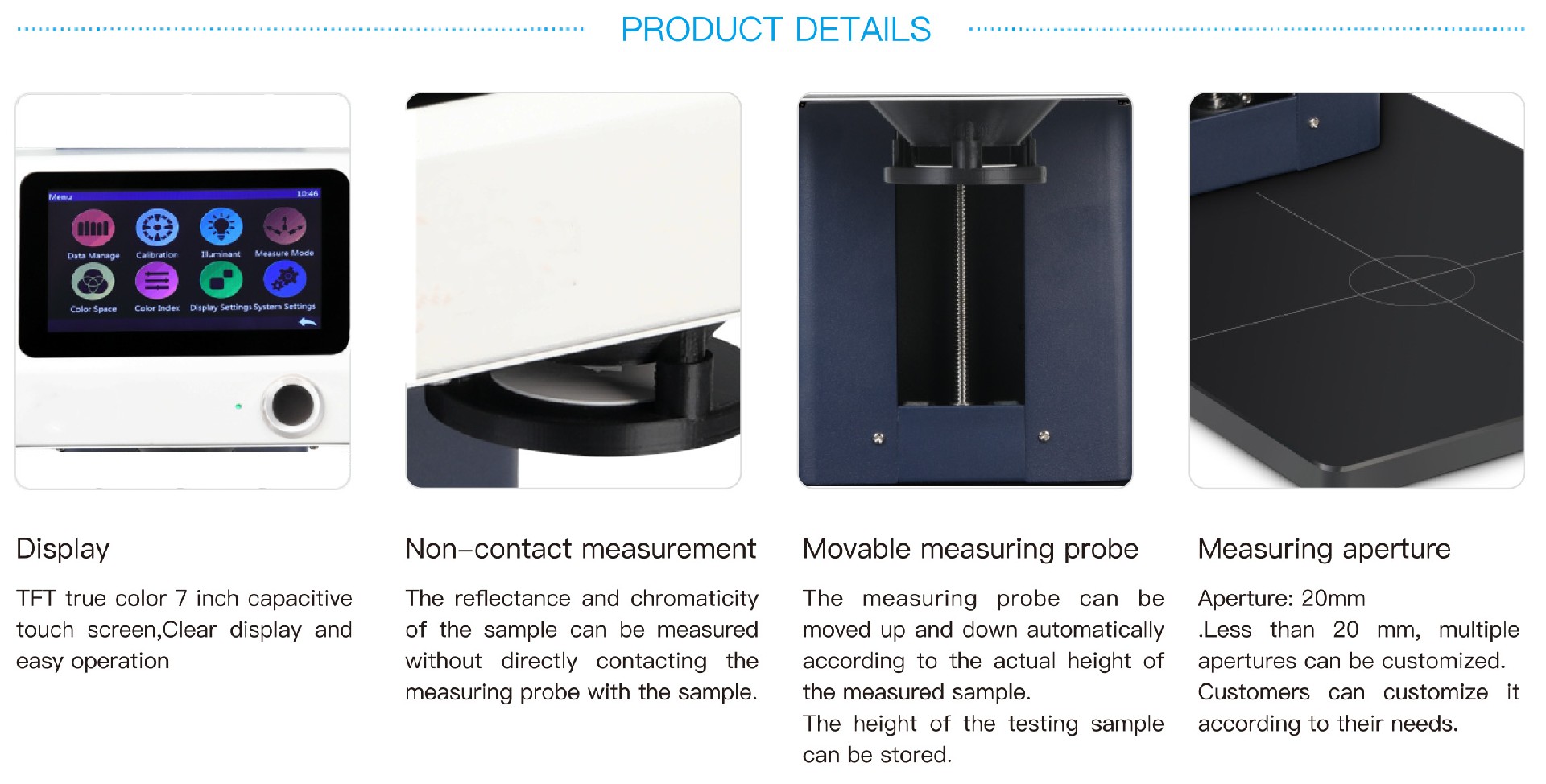

Measuring Aperture | Φ20mm(can be customized <20mm) |
Non-contact Distance | 7.5mm |
Sample Height | 0~150mm |
Distance Adjustment Method | Manual adjustment and automatic adjustment (test height can be stored) |
Measuring mode | Sample mode/QC Mode/Continuous statistics mode |
Locating Method | Camera Locating |

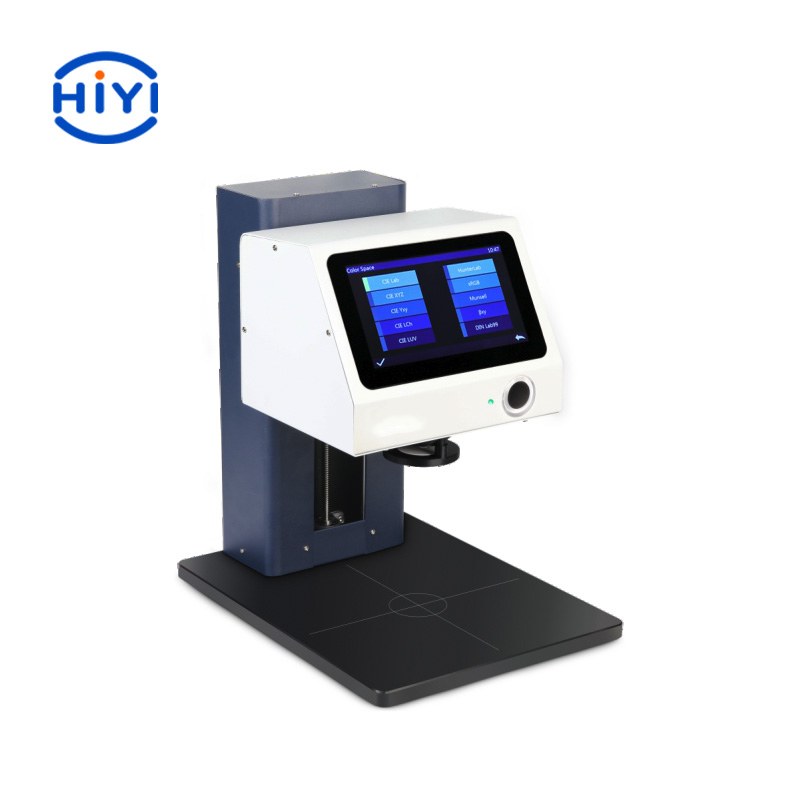

Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB |
Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE(Hunter) |
Other Colorimetric Index | WI(ASTM E313,CIE/ISO,AATCC,Hunter),YI(ASTM D1925,ASTM 313),TI(ASTM E313,CIE/ISO), Metamerism Index MI,Staining Fastness,Color
Fastness,Color Strength, Opacity |
Observer Angle | 2°/10° |
Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30) |
Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, Chromaticity Graph, Color Simulation, PASS/FAIL
Result, Color Offset |
Measuring Time | About 1.5s |
Data Storage | Sample mode + QC mode: 40,000; Continuous statistics mode: 10,000 |
Repeatability
|
Spectral reflectance: Standard deviation within 0.08%
Chromaticity value: Within ΔE*ab 0.03 (When a white calibration plate is measured 30 times at 5 second intervals after white
calibration)
|
Inter-instrument Error | Within ΔE*ab 0.2（Average for 12 BCRA Series II color tiles) |
Measurement Mode | Single Measurement, Average Measurement(2 ~ 99 times) |
Dimension | 330*250*370mm |
Weight | About 10 kg |
Power Supply | DC 24V, 3A Power Adapter |
Illuminant Life Span | 5 years, more than 3 million times measurements |

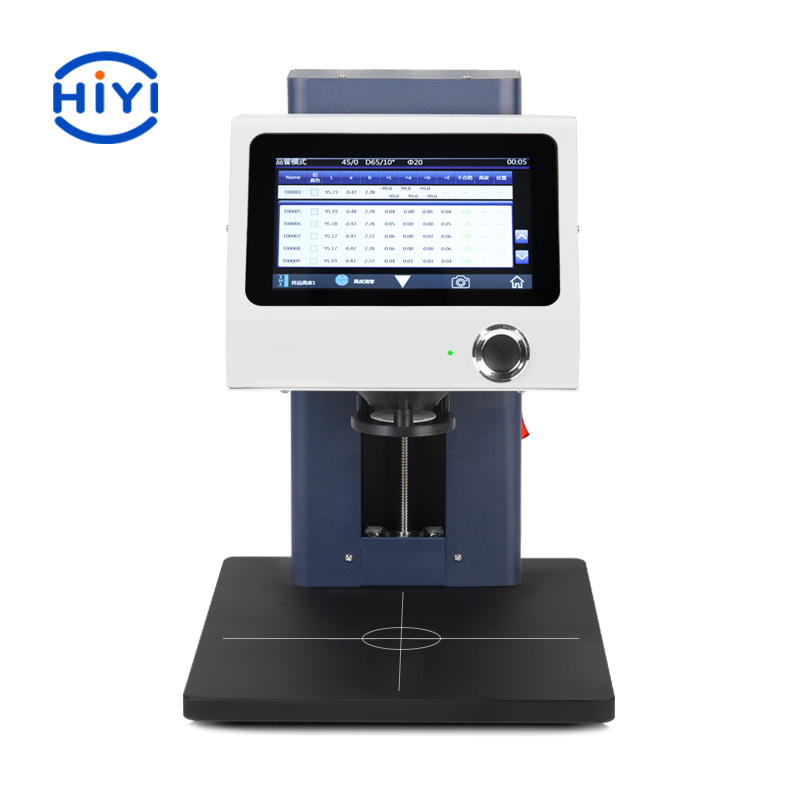

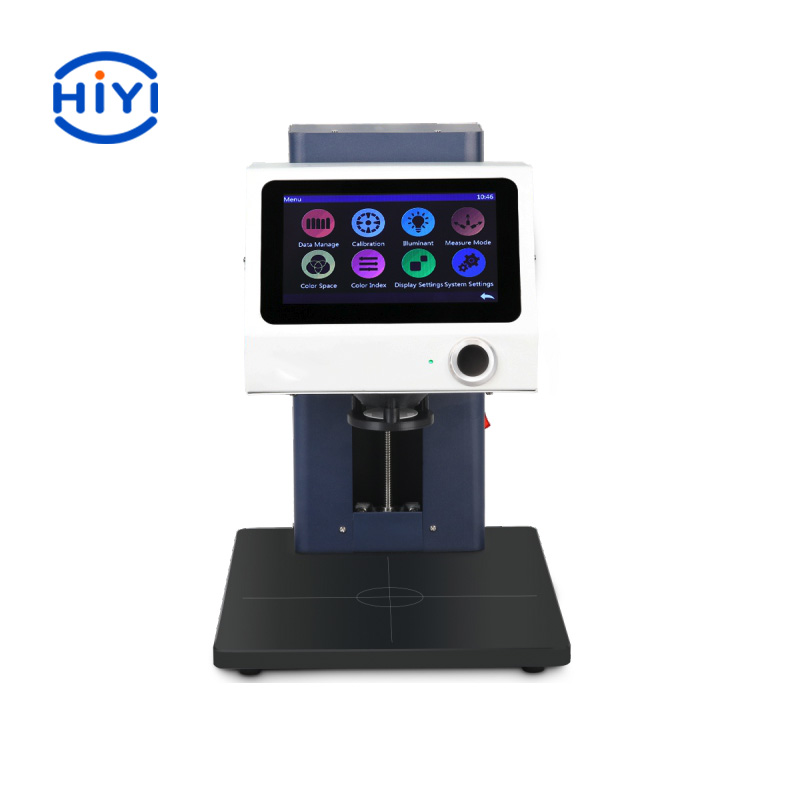

Display Screen | 7" TFT Capacitive Screen-touch Display |
Data Port | USB/RS-232,Bluetooth®4.0 |
Language | Simplified Chinese,Traditional Chinese,English |
Working Environment | Temperature: 0~40℃; Humidity: 0~85% (No Condensation); Altitude < 2000m |
Storage Environment | Temperature: -20~50℃; Humidity: 0~85% (No Condensation) |
Standard Accessory | Power Adapter, User Manual, USB cable, Standard Calibration Board, Black Calibration Cavity, |
Notes | The specifications are subject to change without notice. |
