YS4580 Plus Traffic Spectrophotometer

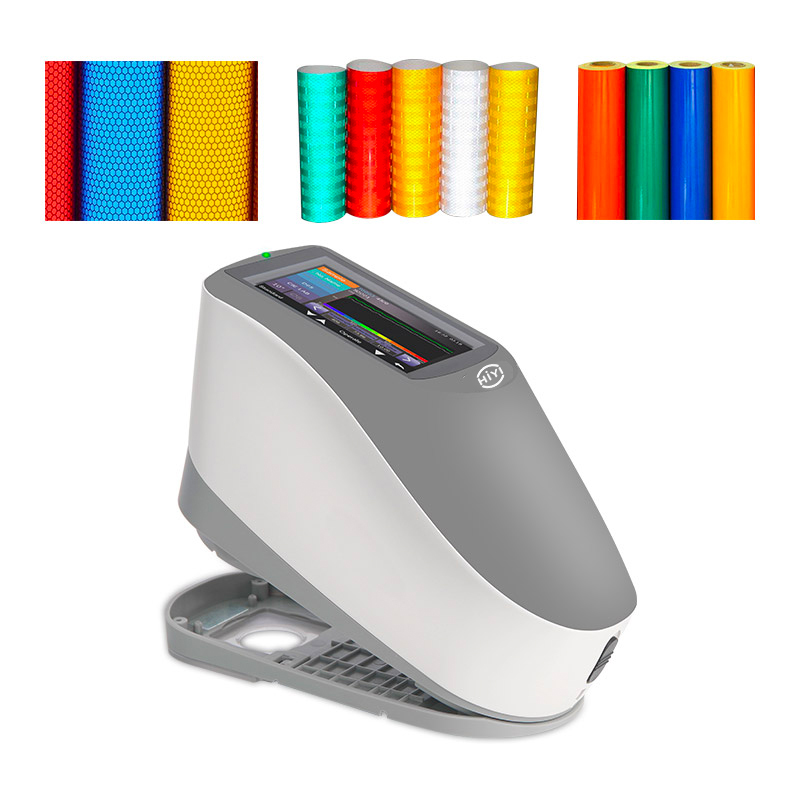

YS4580 Plus spectrophotometer uses 45/0 (45 degree ring illumination, 0 degree reception) geometric optical structure in accordance with CIE No. 15 and adopts concave grating spectrometry to accurately measure sample reflectance and various colorimetric data; Equipped with a large measuring aperture of Φ20 mm for traffic signs, color matching, precise color transfer;Built-in GB2893, GB/T18833 standard color, can be manually customized polygonal rectangle tolerance, one button to realize the measurement of traffic road signs, marking lines, reflective film brightness factor and chromaticity coordinates. For uneven sample with stripes or granular samples, the instrument has high accuracy and high stability.

Inquiry
(+86)010-5653 8958
  • Product description
  • Product parameter
  • Product video


Poster副本.jpgFeatures

  1. Beautiful appearance and perfect combination with ergonomic structure design

  2. 45/0 geometric optical structure, in accordance with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7, GB 2893, GB/T 18833

  3. Adopt high-life and low-power combined LED light source, including UV/excluding UV

  4. Φ20mm aperture adapt to larger samples or uneven samples

  5. Measure sample spectra, accurate Lab data , can be used in color matching and accurate color transmission

  6.  High electronic hardware configuration: 3.5-inch TFT true color screen, capacitive touch screen, concave grating, 256-pixel dual-array CMOS detector, etc

  7. USB/Bluetooth 4.0 (compatible with 2.1) dual communication mode, more adaptable

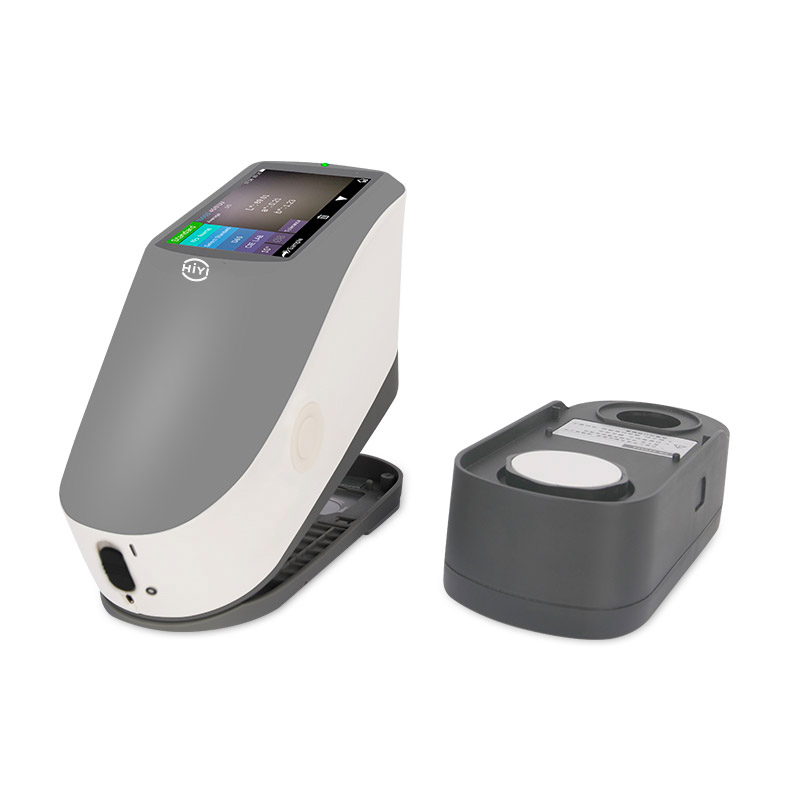

  8. Super stain-resistant and stable standard white calibration plate

  9. Large-capacity storage space, can store more than 30,000 test data

  10. Two standard observers, multiple light source modes, multiple color systems, and a variety of standard colorimetric indicators to meet the needs of various customers for color measurement

  11. PC software has powerful function extensions

  12. Built-in standard polygon tolerance setting and specific traffic sign gamut, especially suitable for traffic signage brightness factor and chromaticity performance judgment




ModelYS4580 PlusYS4560 Plus
Illumination/Observation system45/0(45 ring-shaped illumination, vertical  viewing);
Comply with CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7,GB 2893、GB/T 18833
Integrating Sphere SizeΦ48mm
Light SourceCombined LED Light, UV Light
Spectral separation deviceConcave Grating
Detector256 Image Element Double Array CMOS Image Sensor
Wavelength Range400~700nm
Wavelength Pitch10nm
Half Bandwidth10nm
Reflectance Range0~200%
Measuring ApertureΦ20mmMAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm
Color SpaceCIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB,βxy
Color Difference FormulaΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE(Hunter)
Other Colorimetric IndexWI(ASTM E313,CIE/ISO,AATCC,Hunter),
YI(ASTM D1925,ASTM 313),
MI (Metamerism Index),
Staining Fastness, Color Fastness, Color Strength, Opacity,Supporting Colorimetric Polygon Tolerance
Observer Angle2°/10°
IlluminantD65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
Display DataSpectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset
Measurement TimeAbout 1.5s
RepeatabilitySpectral reflectance: Standard deviation within 0.1% (400 nm to 700 nm: within 0.2%)

Chromaticity value:within ΔE*ab 0.04 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument ErrorWithin ΔE*ab 0.15 (Average for 12 BCRA Series II color tiles)
Measurement modeSingle Measurement, Average Measurement(2-99)
Size(L*W*H)184*77*105mm
WeightAbout 600g
Power sourceLi-ion battery. 5000 measurements within 8 hours
Illuminant Life Span5 years, more than 3 million times measurements
Display3.5-inch TFT color LCD, Capacitive Touch Screen
InterfaceUSB, Bluetooth 4.0
Data memoryStandard 1000 Pcs, Sample 30000 Pcs
LanguageChinese,English
Working EnvironmentTemperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m
Storage EnvironmentTemperature: -20~50℃; Humidity: 0~85% (No Condensation))
Standard AccessoryPower Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website)White and Black Calibration Board, Protective Cover.
Optional AccessoryMicro Printer, Powder Test Box, Universal test components, Locating Plate
Notes: The specifications are subject to change without notice.
