NS800 Spectrophotometer

NS800 Series spectrophotometer is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories. It is equipped with high-end color management software which can connect PC to achieve more extension functions.

Inquiry
(+86)010-5653 8958
  • Product description
  • Product parameter
  • Product video

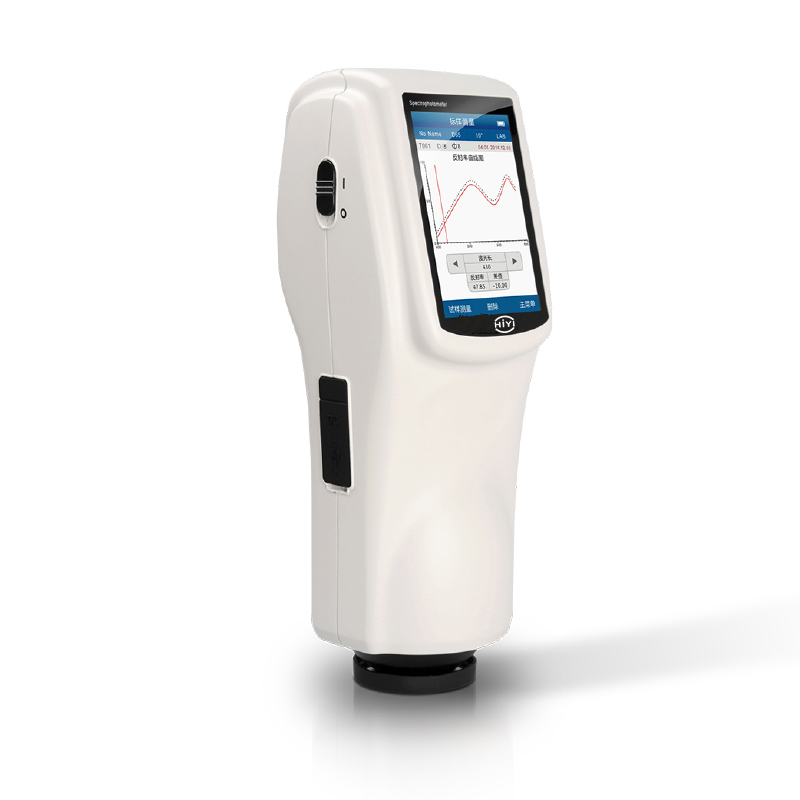

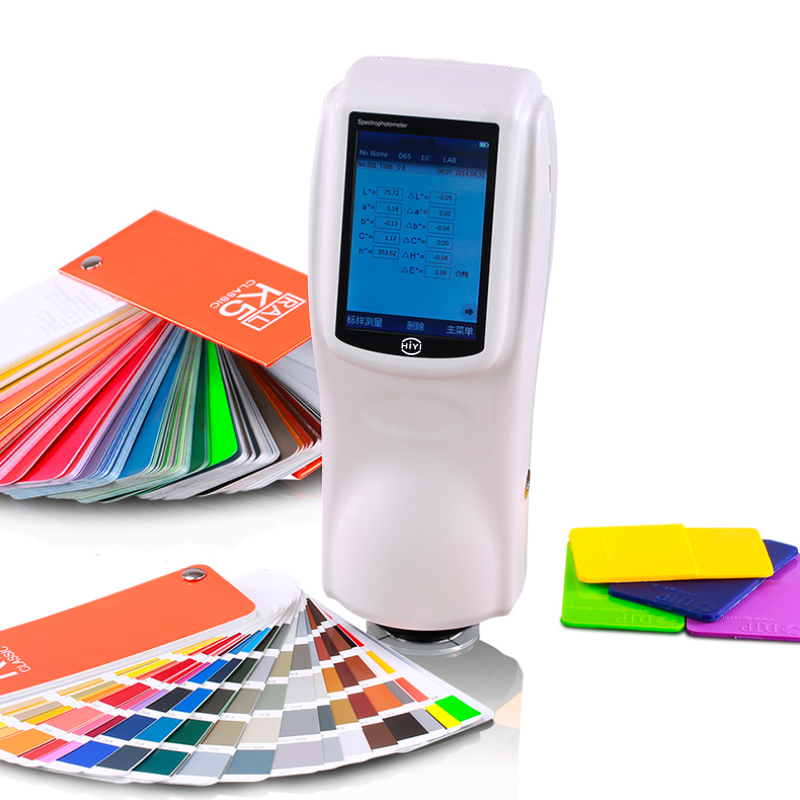

NS800 Spectrophotometer


Overview

NS800 spectrophotometer uses the principle of combination LED precision spectroscopy, separates the light according to a certain wavelength interval, and adopts groups of sensor array to perform sensitive analysis. NS800 spectrophotometer with higher accuracy is very sensitive to any colors. It not only can measure L*ab value and delta E value accurately, but also can display spectral reflectance curve which can realize color matching function and calculate the real parameters of various color formulas.

Our engineers measured various color samples from dark to light, white to black, and other standard color boards provided by ISO (International Standardization Organization). The parameters of test results are integrating with international standards.


Application Industry

NS800 spectrophotometer is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories.  It can measure reflectance spectrum and other color index precisely.

NS800 spectrophotometer not only can help to perform color matching and color management studies, but also can control product quality management accurately. The instrument is equipped with high-end color management software which can connect PC to achieve more extension functions.


Product Features

1. Aesthetic design perfectly combined with ergonomics structure.

2. 45/0 geometrical optics structure, comply with CIE, ISO, ASTM, DIN standard.

3. 3.5 inch large capacitive touch screen.

4. Two standard observer perspectives, multiple light sources modes, a variety of color systems.

5. The repeatability ΔE*ab is within 0.04, the errors between each instrument ΔE* ab is less than 0.2.

6. Large capacity storage, can save more than 10000 data.

7. PC software with powerful extension functions.

8. High hardware configuration with a number of innovative technologies.

9. Oversized integrating sphere, more effective homogenization ray of lights and precise measurement.

10. 15° oblique angle screen, more in line with the human eye observation.


Model NS800
Illumination

45/0 method (45 ring-shaped illumination, vertical viewing), Comply with CIE No.15,

GB/T 3978

 Integrating sphere Size Φ58mm
 Light Source combined LED sources
 Sensor Silicon photodiode array
 Wavelength range 400~700nm
 Wavelength interval 10nm
 Reflectance range 0~200%
 Measuring Aperture Φ8mm
 Color Space CIE LAB, XYZ, Yxy, LCh, CIE LUV
 Color difference Formula ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00
 Other Chromaticity Data

 WI(ASTM E313,CIE/ISO, AATCC, Hunter), YI(ASTM D1925,ASTM  313),

 Metamerism Index (Mt), Color Stain,  Color Fastness

 Observer 2°/10°
 Illuminant D65,A,C,D50,D55,D75,F2,F6,F7,F8,F10,F11,F12
 Display Data

 Spectral Value/Graph, Colorimetric Value, Color Difference  Value/Graph,

 PASS/FAIL Result, Color Offset, Color Simulation

 Measurement Time 1.5s
 Repeatability Spectral Reflectance: standard deviation within 0.1%(400~700nm:  within 0.2%)
 Colorimetric Value

 Standard deviation within Delta E*ab 0.04 (Measurement conditions:  white calibration

 plate measured 30 times at 5 seconds intervals after  white calibration was performed)

 Inter Instrument   Within Delta E*ab 0.2 (Average for 12 BCRA Series II color tiles)
 Dimension L*W*H=90*77*230mm
 Weight 600g
 Battery Li-ion battery. 5000 times within 8 hours
 Lamp Life 5 years, more than 1.6 million measurements
 Display Screen TFT 3.5inch, Capacitive Touch Screen
 Interface USB/RS-232
 Data Memory1000 Standards, 15000 Samples
 Operating Temperature0~40℃(32~104°F)
 Storage temperature-20~50℃(-4~122°F)
 Standard AccessoryPower Adapter, Li-ion Battery, Operating Instruction, CD-ROM  (containing management software), Data Line, White and Black  Calibration Cavity, Protective Cover and Wrist Strap
 Optional Accessory Micro Printer, Universal Test Compon
 Others

 Provide complete spectrum reflectance curve, Input L, a, b value  manually

 Notes The specifications are subject to change without notice


How To Use NS800 To Test Plastic

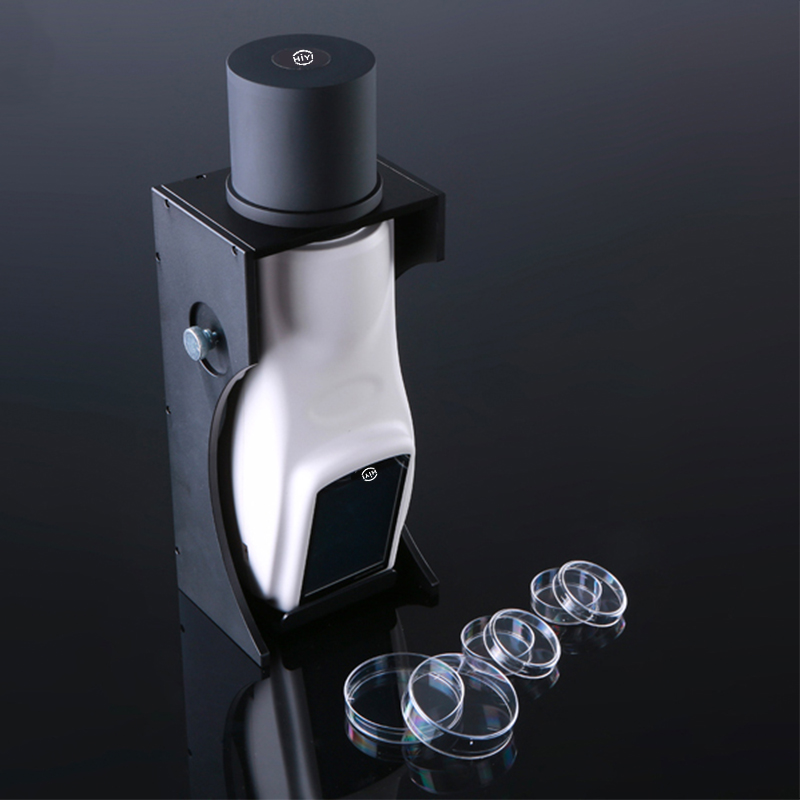

How To Use NS800 To Test Liquid
