TJ-TAS Vibratory Sieve Shaker

The sieve shaker is easy to operate, no rotating parts.The controllable electromagnetic drive offers an optimal adaption for every product.Sharp fractions are obtained even after short sieving times.

Inquiry
(+86)010-5653 8958
  • Product description
  • Product parameter
  • Product video

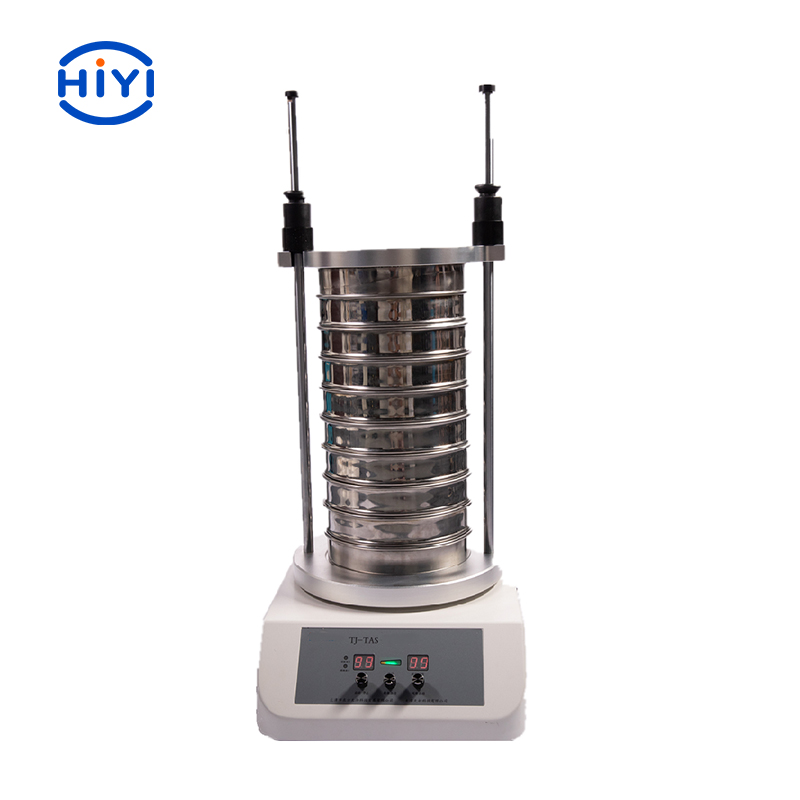

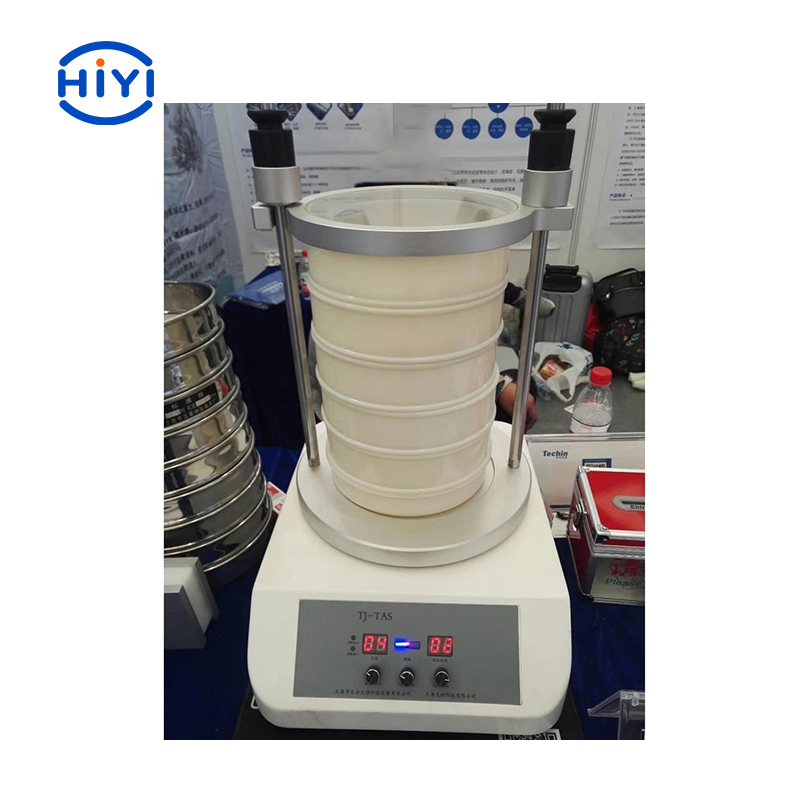

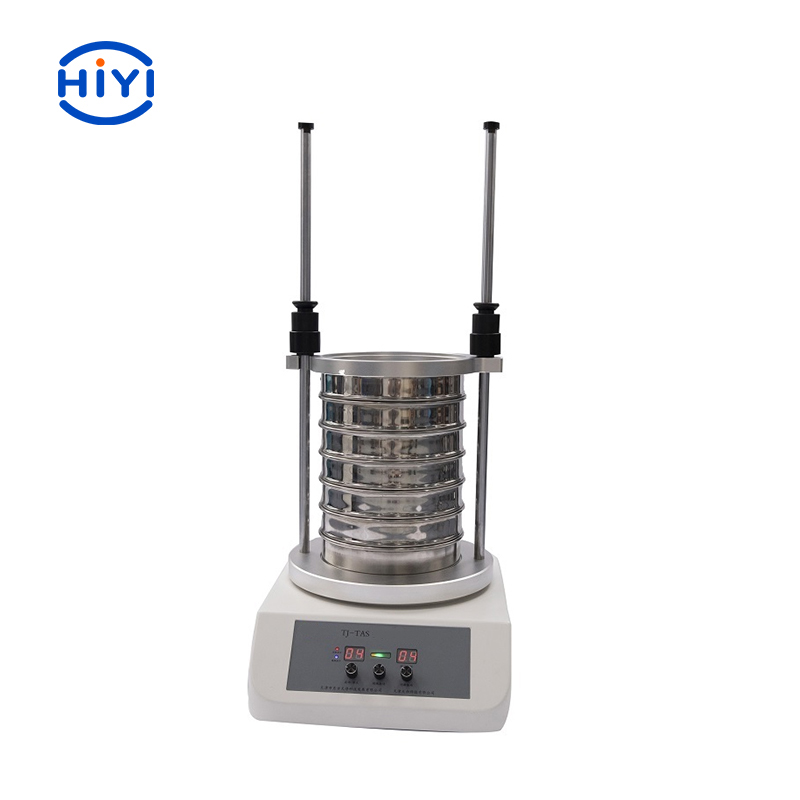

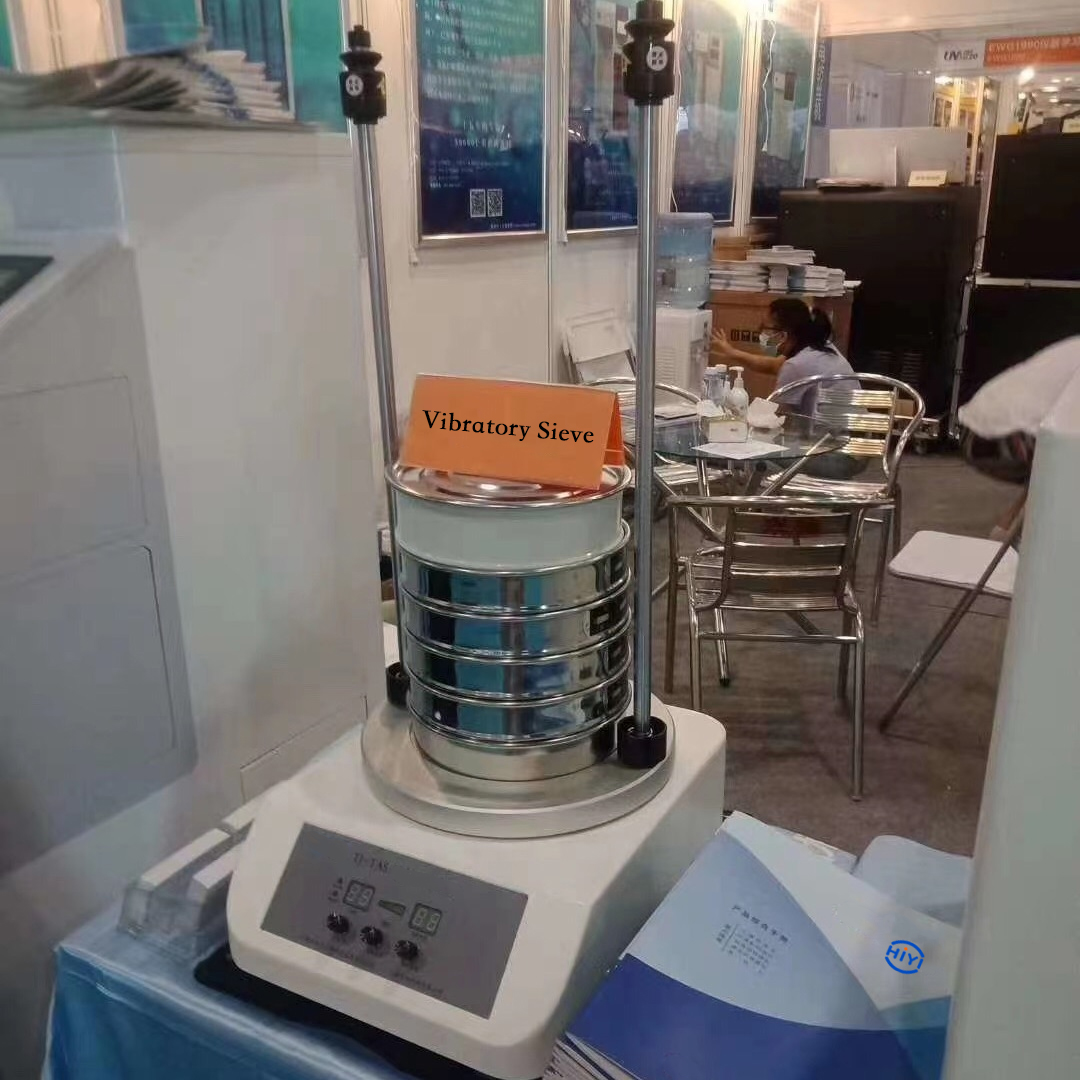

TJ-TAS Vibratory Sieve Shaker




Features:

The  TJ-TAS sieve shaker is the economical alternative of the series . It features digital setting and display of performance and time.

1. Driven by electromagnetic force, the energy is clean and environmental friendly; 2. The instrument is used for three-dimensional throwing screening, and the sample materials are uniformly dispersed;

3. Machine power and amplitude can be adjusted, with low noise;

4. "S" type one-way pressure plate design, which can quickly load and unload the screen;

5. Three vibration modes of "continuous", "subtle" and "intermittent" can be selected to meet different needs;

6. It can be used for dry grinding and wet grinding of samples respectively;

7. It can be equipped with 10 standard screens to obtain samples of different particle sizes;

8. Standard screens of different materials with diameters less than 200mm can be assembled.


Application:

The vibratory sieve shakers of the series TJ-TAS produced used in research & development, quality control of raw materials, interim and finished products as well as in production monitoring of pharmacy, metallurgy, food, cosmetics, food, soil particle analysis of industries.

  • Max. mass of sieve stack:≥3kg

  • Suitable sieve diameters:100 mm / 150 mm / 200 mm / 203 mm (8")

  • Measuring range:20μm~30 mm

  • Vibrational frequency: 3000 times/min,6000 times/min

  • Amplitude: 0mm~3mm continuous adjusted

  • Vibration mode: Subtle , discontinuous , continuous vibration

  • Control mode :Manual control and timing control

  • Time Display:Digital,1~99min

  • Electrical supply data: AC 220V±25V,50Hz±1Hz (different voltages)

  • Net weight: 30kg

  • Max. number of fractions 7

  • Suitable for dry sieving yes
