SP Genevac Centrifugal Evaporators

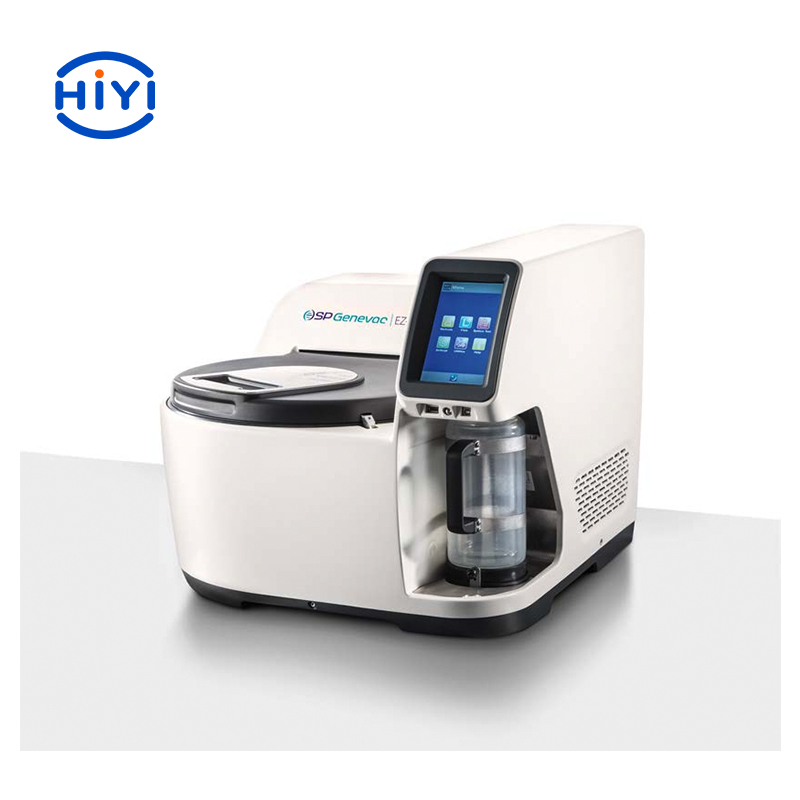

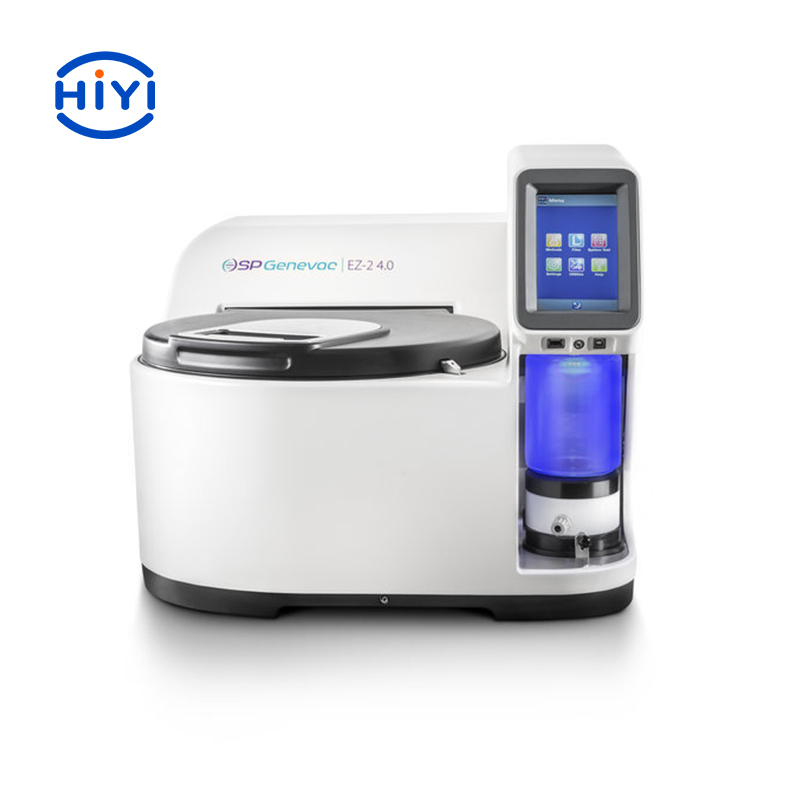

EZ-2 4.0 Series
New high-power lamps increase drying performance, whilst the low Global Warming Potential (GWP) refrigerant, standby mode, and recyclable packaging help reduce environmental impact.
With three models in the SP Genevac EZ-2 4.0 Series, you can be sure there’s an evaporator to suit your needs:
EZ-2 4.0 Standard is recommended for solvents with boiling points up to 120 °C and ideal for evaporating volatiles
EZ-2 4.0 Plus is recommended for solvents with boiling points up to 165 °C and ideal for evaporating HPLC fractions and nitric acid
EZ-2 4.0 Elite is recommended for solvents with boiling points up to 220 °C and suitable for evaporating high boiling point solvents and lyophilizing aqueous based samples

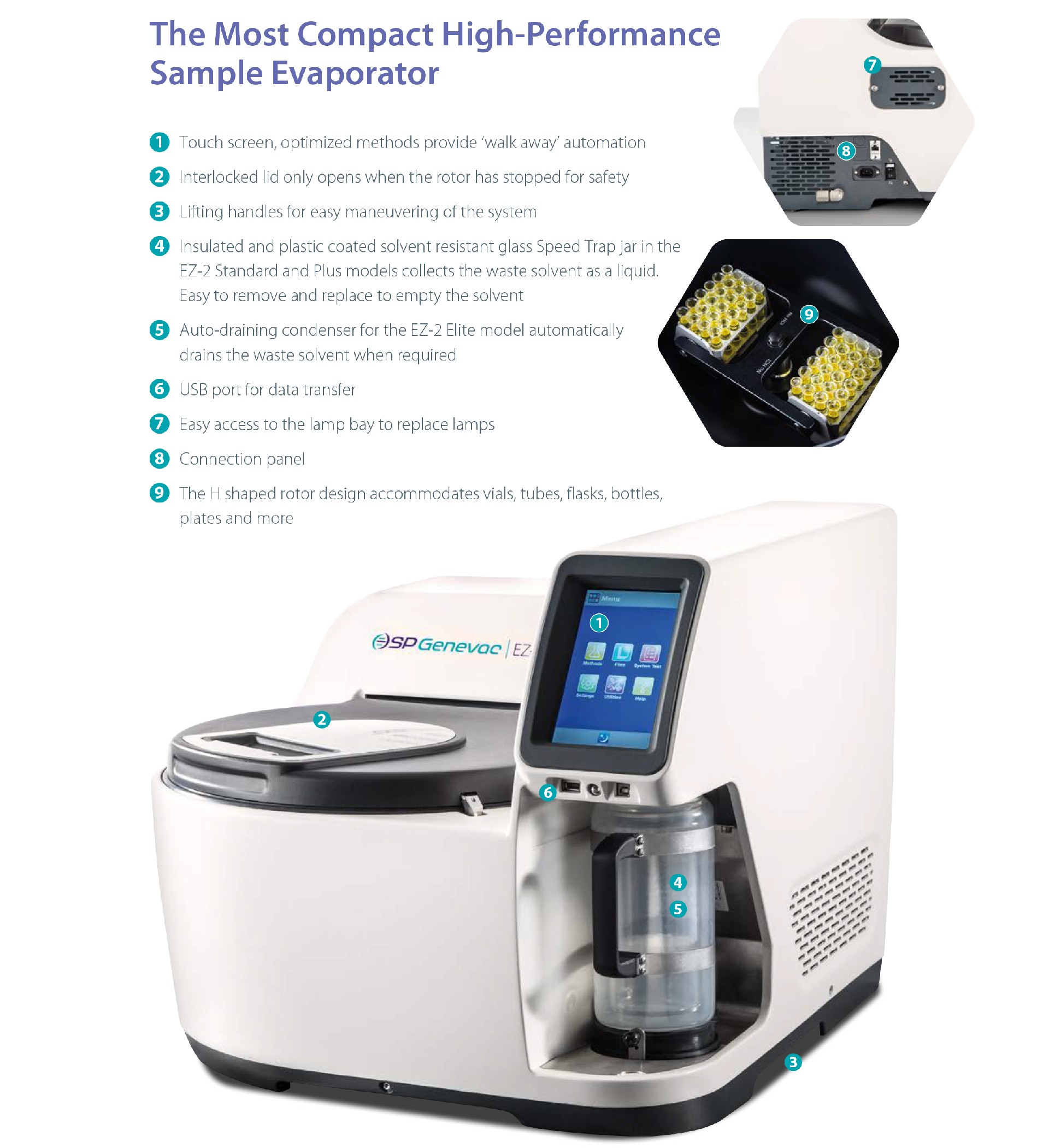

Features:
Unparalleled sample protection - advanced temperature control and Dri-Pure® anti-bumping technology
Touchscreen interface featuring more pre-set methods means you can program with ease, for "day-in, day-out" use
EXALT™ technology enables crystallization studies such as polymorph screening, allowing you to produce crystals with controlled evaporation
Front facing condenser jar for easy visibility and safe removal of solvents
Options for hydrochloric acid (HCl) resistance, Inert Gas Purge (IGP), and EXALT™ controlled crystallization
Variety of sample holders - able to accommodate any type of vial, tube, flask, 96-well plates and our revolutionary SampleGenie™ flasks
Simplified data transfer – upload/download data via USB key

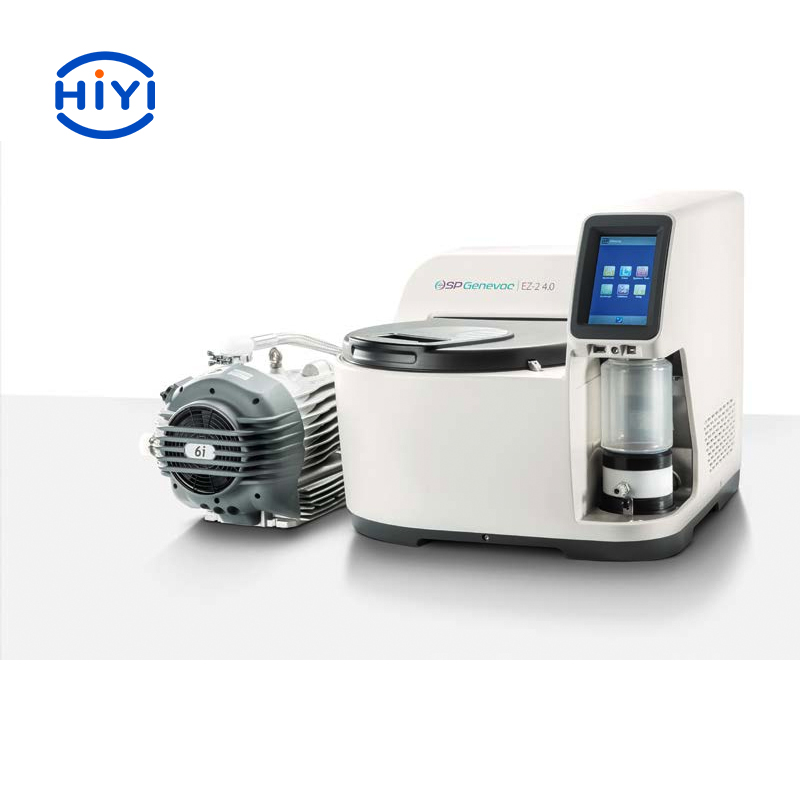

Space-saving design - limited bench space need no longer be a problem. A compact design with integrated condenser and dry diaphragm pump in the Standard and Plus models , Elite with an external scroll pump.
Application:
PROTACs
Medicinal Chemistry
Oligo Synthesis
Synthetic Biology
RNA Therapeutics
Proteins & Peptides
Post Purification Sample Handling
Environmental Analysis
Clinical & Diagnostic Testing
Food & Beverage
Metabolism & Toxicology Studies
Natural Products Research
Parallel Chemistry
Oils, Fuels and Fats
Crystallography
Forensic
| Evaporator | Emissions |
Max. rotor speed 1920 rpm
Max. load per swing 1.5 kg
Max. operational imbalance 80 g
Dimensions (W x D x H) 620 x 620 x 580 mm
Weight (approx) 1 90 kg | Noise (@ 1 metre) 65 dB(A)
Exhaust hose (supplied) 6 mm ID / 8 mm OD |
| Elite vacuum pump - external | Electrical |
Type Oil-free scroll
Ultimate system vacuum <0.4 mbar
Dimensions (W x D x H) 432 x 282 x 302 mm
Weight 26.2 kg
Vacuum hose/control cable 2 m | Supply 230V 50 Hz
220V 60 Hz
120V 60 Hz
100V 50 Hz
100V 60 Hz
Max supply input 1500 A |
| Plus / Standard vacuum pump - internal | Storage/transportation environment |
Type for standard Diaphragm pump
Ultimate system vacuum < 8 mbar
Type for Plus Diaphragm pump
Ultimate system vacuum <3 mbar | Ambient temperature 0 ºC - 40 ºC 3
Relative humidity 10-80% non-condensing
Store upright at all times |
| Condenser | Operational environment |
Type Single-stage
vapour condensation
Refrigerant gas R1270
Refrigerant charge 28 g
Refrigerant GWP 2
Refrigerant CO2e < 0.1 tonnes
Ultimate low temperature 2 -50 ºC
Max pressure (PS) 30 bar | Ambient temperature 15 ºC to 30 ºC
Relative humidity 10-80% non-condensing
Altitude Sea-level to 1600 m
Min. ventilation air-gap 50 mm
Installation environment Indoor only
Static-dissipative laboratory or similar |
| Inert gas supply requirements | Solvent capacity and ACC range |
Max. pressure 2 bar g (3 bar absolute)
Max. consumption (purge) 250 litres approx.
Min. Pressure 1.5 bar g (2.5 bar absolute)
Max. consumption (blanket) 50 litres/hour approx.
Flow rate (max.) 50 litres/min @ STP 4
Connector type 3/8 BSP female
Hose length 2.5 m | Max. solvent capacity 750 ml
Refrigeration ACC range 110 ºC |
