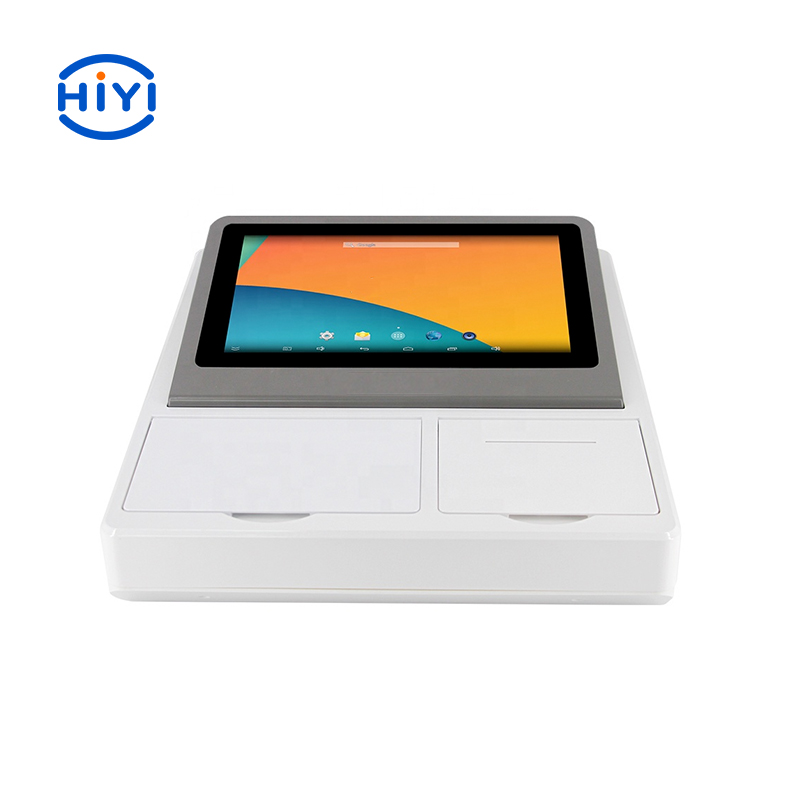

PR12 Rapid Pesticide Detector
overview：
The pesticide detection is based on the inhibition of Acetylcholinesterase (AChE) activity by organophosphorus (OP) and carbamate (CM) pesticides, and inhibition rate is positively correlated their concentration. So, inhibition rate was recognized to be a marker whether there are OP and CM pesticide residues in the sample.
PR12 Rapid Pesticide Detector contains three modules: spectrophotometer, digital management, and wireless communication. Combined used with FSTest Pesticide Residues Rapid Detection Kit, it can provide an accuracy and reliability solution to testing OP and CM pesticide residues in fruits, vegetables, tea and produce.
Feature：
CPU | Arm 4-core Processor |
RAM | 1GB,DDR3 |
ROM | 16G,MicroSD(TF)Card Memory Expansion available |

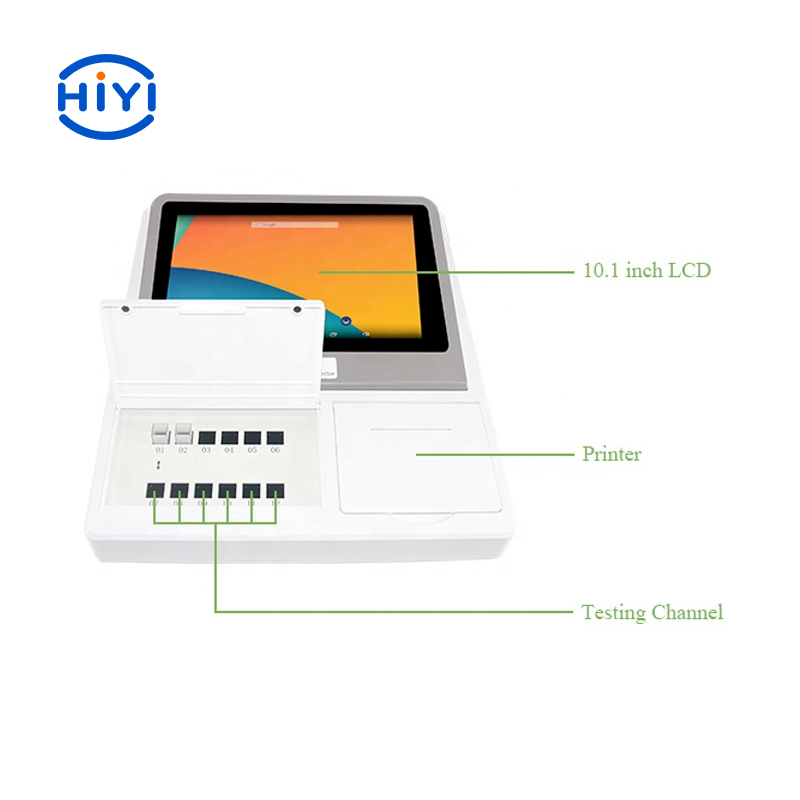

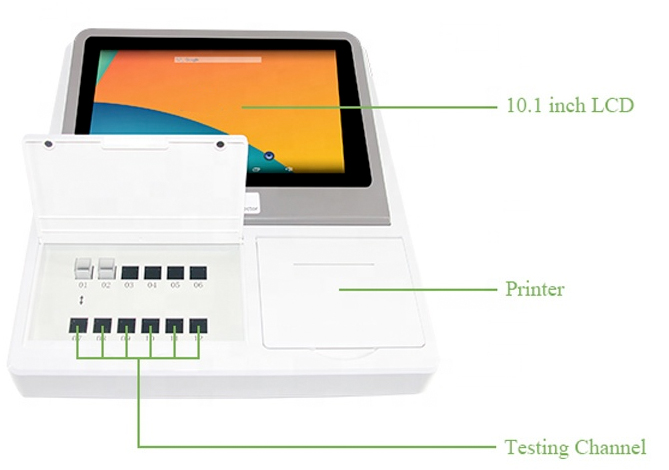

Screen | 10.1 inch LCD 1280×800 |
USB | 4x USB Type-A, 1x USB Type-B |
Wireless communication | WiFi and Bluetooth4.0 |
Operating system | Android 4.4 |
Printer | Thermal printer |

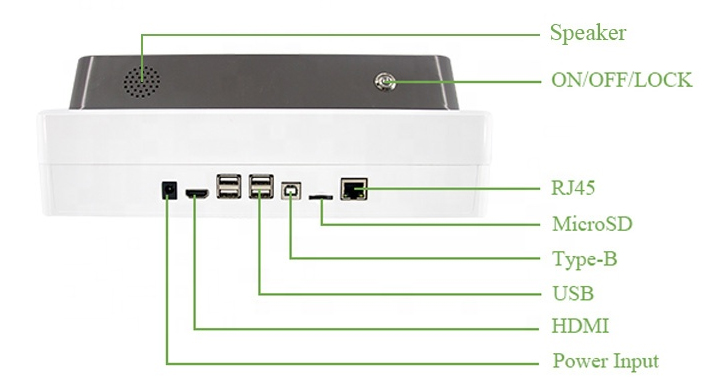

Interface | USB,HDMI,RJ45,MicroSD,DC12V input |
Operation mode: | Touch, Mouse, Keyboard |
Light source | LED, wavelength at 410nm |
Number of Channels | 12 channels, 1cm light path |
Transmittance repeatability | ≤0.5 % |
Photocurrent drift | ≤±1% |
Transmittance error | ≤±2.0% |
Working temperature | 10-40℃; Relative humidity ≤ 70% |
Storage | -20℃-55℃; Relative humidity ≤ 80% |
Net Weight | 2.5kg |

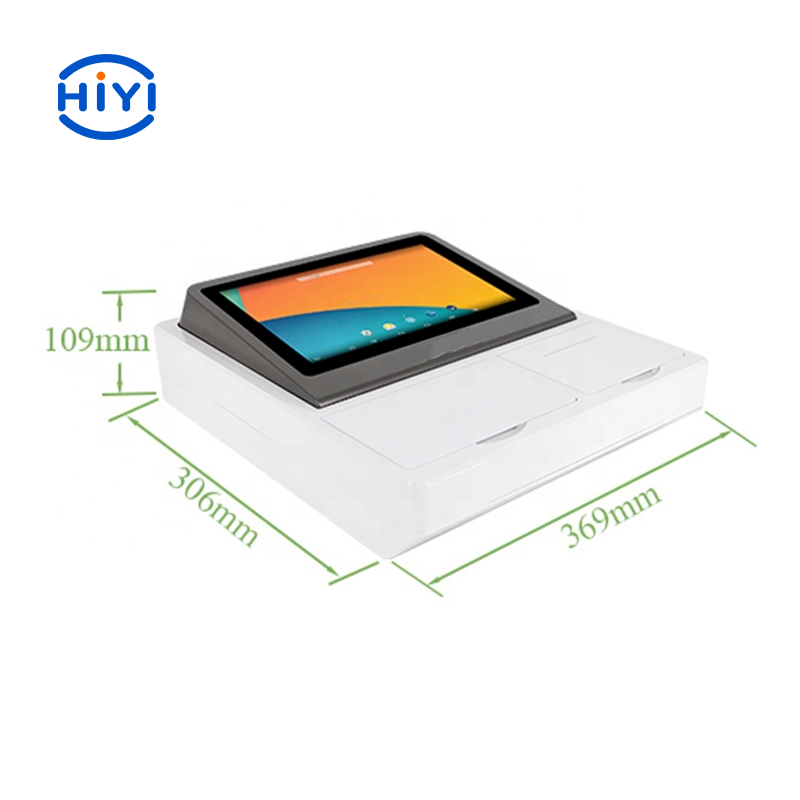

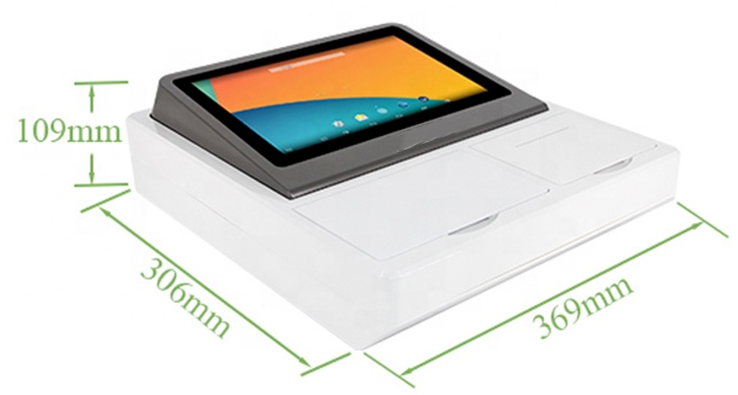

Dimension | 306mm (L) x369mm (W) x109mm (H) |
