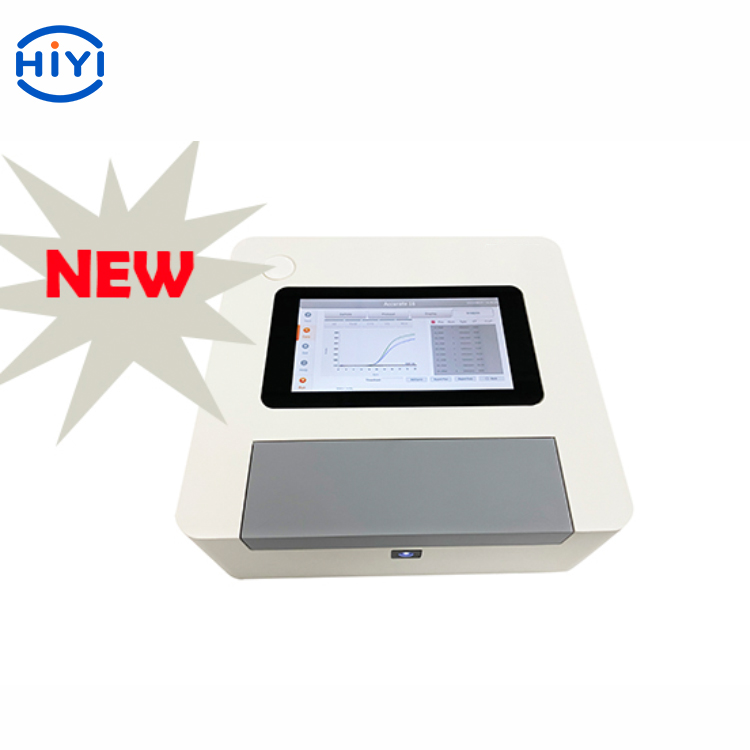

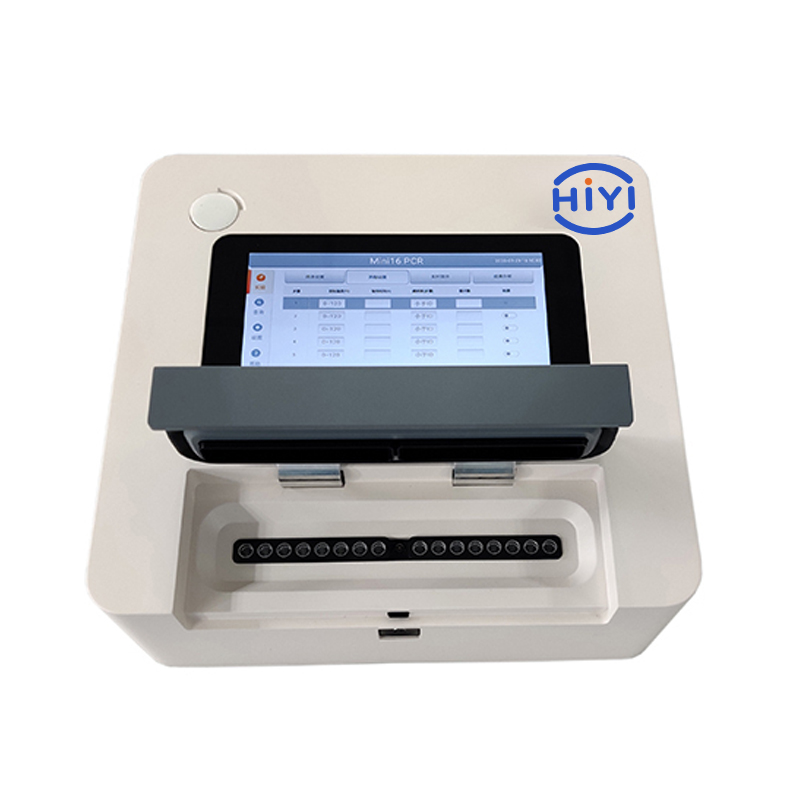

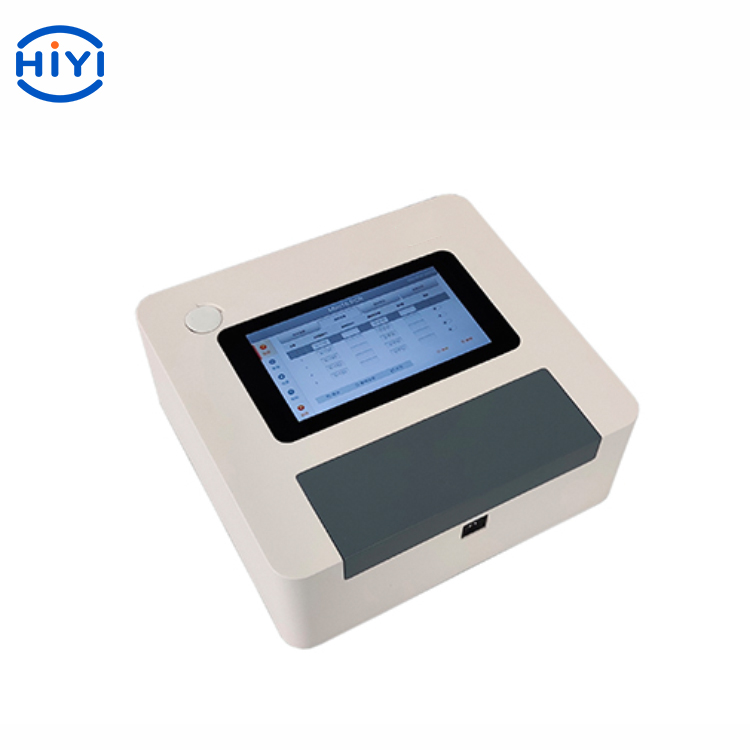

Accurate 16-T

On board software with large screen panel, easy for use:7-inch color touch screen shows all parameters, test results and real time testing curve.
Portable and light : the weight is only 4kg. It can be used with vehicle power supply for immediate on-site detection.
Sensitive and efficient optical signal detection system, multi-channel fluorescence without crosstalk: based on unique Fresnel lens, high-efficiency PMT and maintenance-free LED. 16-hole scanning takes only 1s.
Ultra-fast temperature control system: unique liquid circulation refrigeration.
Compatible with 0.2mL PCR transparent tubes or eight stripes, can measure 16 samples at a time.
Software functions can be customized.
4G data memory. Testing results can be exported with USB or printed.

Inquiry
(+86)010-5653 8958
  • Product description
  • Product parameter
  • Product video

Accurate 16

  • On board software with large screen panel, easy for use:7-inch color touch screen shows all parameters, test results and real time testing curve.

  • Portable and light : the weight is only 4kg. It can be used with vehicle power supply for immediate on-site detection.

  • Sensitive and efficient optical signal detection system, multi-channel fluorescence without crosstalk: based on unique Fresnel lens, high-efficiency PMT and maintenance-free LED. 16-hole scanning takes only 1s.

  • Ultra-fast temperature control system: unique liquid circulation refrigeration.

  • Compatible with 0.2mL PCR transparent tubes or eight stripes, can measure 16 samples at a time.

  • Software functions can be customized.

  • 4G data memory. Testing results can be exported with USB or printed.


Sample capacity2×8 0.2ml tube/strips,clear
Reaction volume10-50μl
Touch screenYES
Thermal cycle technologyPeltier, liquid circulation refrigeration
Max. Heating/Cooling rate6.0°C/s
Heating temperature range4 – 100 °C
Temperature accuracy±0.2°C
Temperature uniformity±0.2℃ @60℃ ±0.3℃ @95℃
Excitation light sourceMonochrome high efficiency LED
Detection devicePMT
Detection modeFast hole-by-hole scanning
Fluorescent channelsStandard:FAM/ SYBR, VIC/HEX/ TET              Optional:ROX,CY5/TAMRA
SensitivitySingle copy gene
Dynamic range10 orders of magnitude copies
Analysis modeCT value analysis, absolute quantitative analysis
Dimension [W×D×H]205×190×98mm
Power Supply100-240V or Optional 12V, 10A mobile power
Weight4kg
