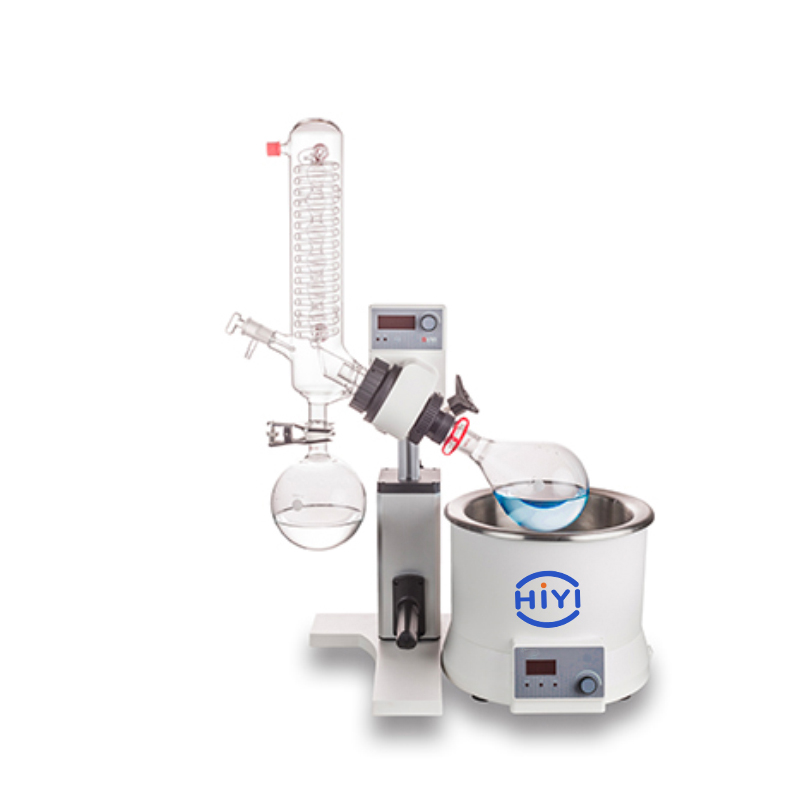

RE100-S

Inquiry
(+86)010-5653 8958
  • Product description
  • Product parameter
  • Product video
Features:

• 5L heating bath with a wide temperature range (room temp.to180°C), independent temperature control,make it can be used separately. Water/oil heating mode can be changed only through a switch.
• Manual lift combined with auxiliary lift for precise positioning of the glassware.
• PID control ensures high temperature accuracy at ±1C (water).
• Overheating protection temperature at 220°C
• Boil-dry protection, automatically power off if heating without water/oil in the heating bath.
• Speed range from 20 to 200rpm, timing interval operation in clockwise and anticlockwise directions for drying process.
• Patented condenser (cooling surface 1200/1700cm² for selection), double helix condensing tube +center circular arc design to speed up the       flow rate of liquid with excellent cooling effect.
• Ejection mechanism ensures easy exchange of evaporating flask
• Adjustable immersion angle
• Patented double spring sealing ring which is made of PTFE provides an excellent sealing performance
• Remote function provides PC control and data transmission.
• Compatible with the entire range of RE100-Pro glassware.


SpecificationsRE100-S
Motor Type Brushless DC motor
Speed Range20-200rpm
Display LED (speed, temperature, time)
Clockwise and Anti-clockwise Yes
Heating Temperature Range Room temp. to 180℃
Control Accuracy water: ±1℃ oil: ±3℃
Heating Power 1010 W
Stroke Displacement Manual 110mm + auxiliary100mm
Interval Time Setting Range1~999s
Dimension [D×W×H]
Main Unit: 440×320×450mm
Heating Bath: 300x300x240mm
Weight Main Unit: 7kg Heating Bath: 3kg
Permissible Ambient Temperature5~40 ℃
Permissible Relative Humidity80%RH
Protection Class IP20
USB InterfaceYes
Voltage/Frequency100~120/200~240V 50/60 Hz
Power  1100 W
