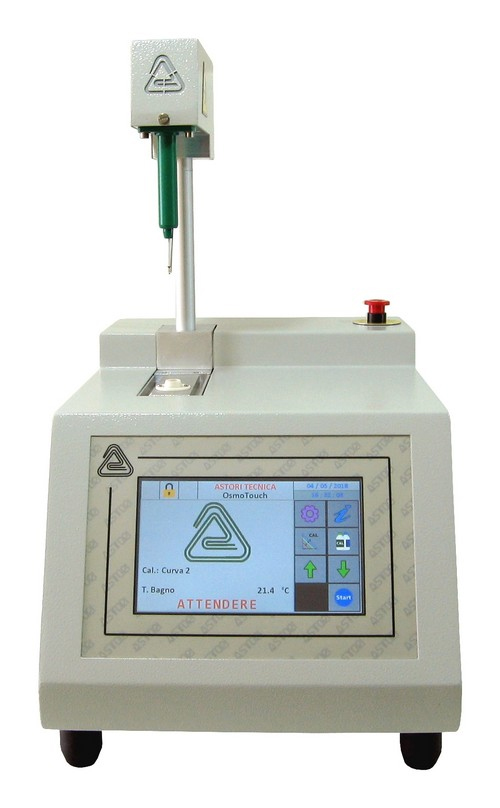

OsmoTouch 1 Single-sample osmometer

OsmoTouch 1 is a single-sample automatic osmometer for the rapid determination of the cryoscopic point variation (osmolality) in biological fluids, pharmaceutical samples and other solutions.

Inquiry
(+86)010-5653 8958
  • Product description
  • Product parameter
  • Product video

OsmoTouch 1 Single-sample Osmometer


OsmoTouch 1-内容.jpg

Overview:

This next generation osmometer includes a lot of useful features that the most recent technology allows: a full colour 7” touchscreen display, realtime visualization of the freezing curve, stable memory for more than 4,000 results, a PC software for data handling, a USB port for downloading all data to a pen drive and much more.

In particular, all OsmoTouch model are designed with characteristics in compliance with FDA norm 21 CFR Part 11, such as the set up of two different password levels, results including date, hour and username, without any possibility to modify them.

Compact and sturdy, OsmoTouch 1 can work with room temperatures up to 36°C.


Features:

  • Full colour 7” touchscreen display

  • Real-time graph of the sample temperature during each analysis

  • An alphanumeric ID code can be added to each sample, easily

  • Optional barcode reader for a quick sample identification (with an additional RS232 port to be requested when ordering)

  • Results shown in different colours for a quick identification of anomalies or critical values

  • Features in compliance with the FDA norm 21 CFR Part 11: set up of two different password levels (administrator and user), results with date, hour and username (electronic signature) and unmodifiable results to avoid any fraud

  • Stable memory for 3 different calibration curves based on the favorite analytical ranges

  • Stable memory for up to 4,000 results

  • Easy download of test results to a USB pen drive

  • Real time PC monitoring or quick download of test results to a PC with CryoSoft Touch data handling software

  • Immediate visualization of error messages

  • Bath with Peltier cells controlled by software

  • Automatic calibration

  • Lash and agitation width controlled by software

  • USB port for data downloading to a pen drive

  • 2 x RS232 ports for connecting an optional thermal printer and a PC

  • An additional RS232 port can be added for connecting an optional barcode reader, upon request


Application:

It is perfect for pharmaceutical/cosmetic/homeopathic applications and for uses in hospitals and R&D laboratories. Excellent for analysis of semiviscous samples.


Accessories:

  • Code no. 63225/OSM Check standard, 323 mOsm, 250 ml

  • Code no. STD2101 Calibration standard, 100 mOsm, 125 ml

  • Code no. STD2109 Calibration standard, 900 mOsm, 125 ml

  • Code no. STD2120 Calibration standard, 2,000 mOsm, 125 ml

  • Code no. STD2125 Calibration standard, 2,500 mOsm, 125 ml

  • Code no. STD2130 Calibration standard, 3,000 mOsm, 125 ml

  • Code no. 67210 Cooling liquid, 1 liter

  • Code no. 67200 Cooling liquid, 250 ml

  • Code no. 2030N500 Disposable sample tubes, volume from 50 µl, 500 pieces

  • Code no. 563 100-place sample tubes holder, in plastic, for plastic tubes

  • Code no. EP-50 EP-50 thermal printer

  • Code no. 67219 Thermal paper roll for EP-50 printer

  • Code no. 9042401009 Automatic micropipette, 10 – 100 µl adjustable volume

  • Code no. 9042401322 Automatic micropipette, 100 – 1,000 µl adjustable volume

  • Code no. 37460 Yellow disposable tips, 1,000 pieces

  • Code no. 37465 Blue disposable tips, 1,000 pieces

Capacity: single sample

Sample volume: from 50 to 200 μL

Test duration: about 2-3 minutes/sample (from 0 to 900 mOsm/Kg)

Operating ambient temperature: +5°C to 36°C

Warm-up time of the equipment: about 5 minutes

Analytical range: from 0 to 3,000 mOsm/Kg - Resolution: 1 mOsm/Kg

Repeatability and reproducibility: ±2.5 mOsm/Kg (from 0 to 600 mOsm/Kg) or ±0.5% of the value (from 600 to 3,000 mOsm/Kg)

Dimensions and weight: 285x485x360 mm (wxdxh, with head down) - 16.1 Kg

Power supply: 110/220 V – 50/60 Hz – max. 150 W
