An automatic device for routine testing of milk components.
Since 1904, Funke-Gerber has been an important player in dairy farming, both at home and abroad. The production of laboratory apparatus for the testing of milk and foodstuffs is among its crowning achievements.
The manufacture of centrifuges together with butyrometers and other appliances for fat determination according to Dr.N.Gerber continues to occupy a central place in the company´s business activity. Over and above this classical field, the company develops and produces the most modern electronic devices for milk analysis.
A new era in routine laboratory analysis has been opened by the new "LactoStar" and "LactoFlash" appliances.
The application of know-how and continuous further development make Funke-Gerber an important player in dairy farming.

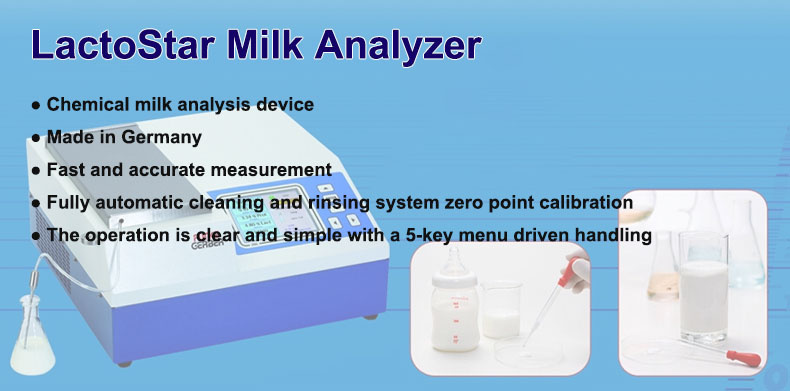

LactoStar Milk Analyzer
Instrument for the analysis of milk
The milk sample is sucked into the measuring cells by means of a pump. Both the fat content as well as the SNF are determined by using thermal measurement effects (RedBox).
Protein, lactose, density and minerals are determined in addition with the aid of a second measuring cell that is equipped with a combined impedance / turbidity sensory technology by using 4 different optical wavelengths (BlueBox). The freezing point is calculated on the basis of the measured values that are ascertained.
Appliance characteristics Calibration
The devices can store 20 different sets of calibration data. Various types of milk, e.g. full-cream milk, skim milk, cream, etc. can be analysed. You can change from one product to another without having to undertake a new calibration.
Parallel interface (Printer connection), Serial interface (PC connection, software is included in the delivery)
0.00% ... 40.00%
0.00% ... 10.00%
0.00% ... 10.00%
0.00% ... 15.00%
|Minerals||0.00% ... 5.00%|
|Freezing point||Calculated value||± 0.002 °C|
* The repeatability in the range of 0 to 8% fat amounts to ± 0.02%.
* In the higher measuring range of 8 to 40% fat, the repeatability amounted to ± 0.2%
