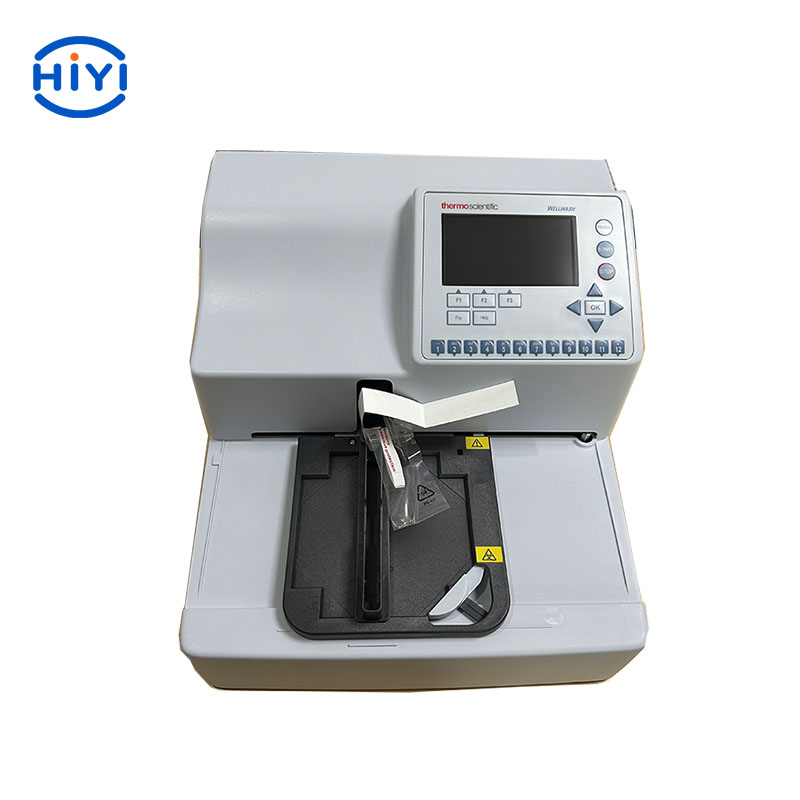

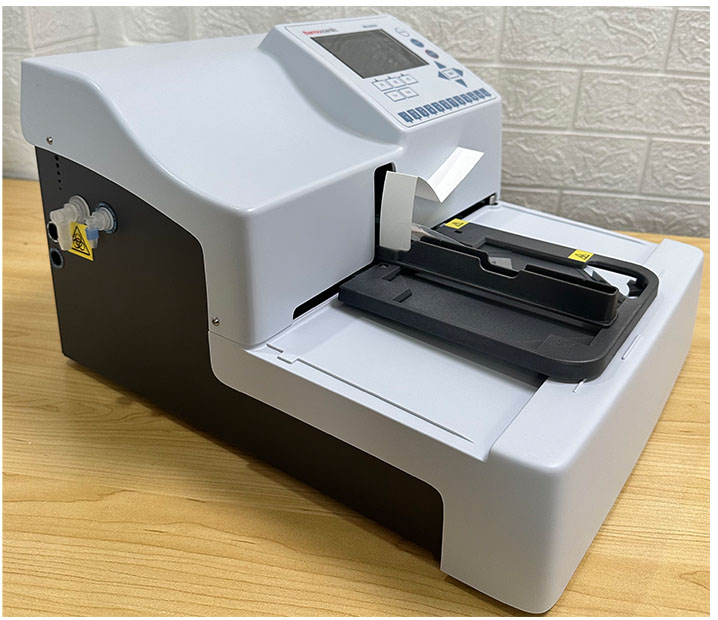

Thermo Scientific Wellwash and Wellwash Versa Microplate Washer

The Thermo Scientifi c™ Wellwash™ Microplate Washer is the basic model for washing 96-well plates. It is intended for use when only a few similar assays are run routinely. The Thermo Scientifi c™ Wellwash™ Versa Microplate Washer is the advanced model for 96-well plates that can also wash cells and 384-well plates, off ering the enhanced fl exibility needed for research use.

Inquiry
(+86)010-5653 8958
  • Product description
  • Product parameter
  • Product video

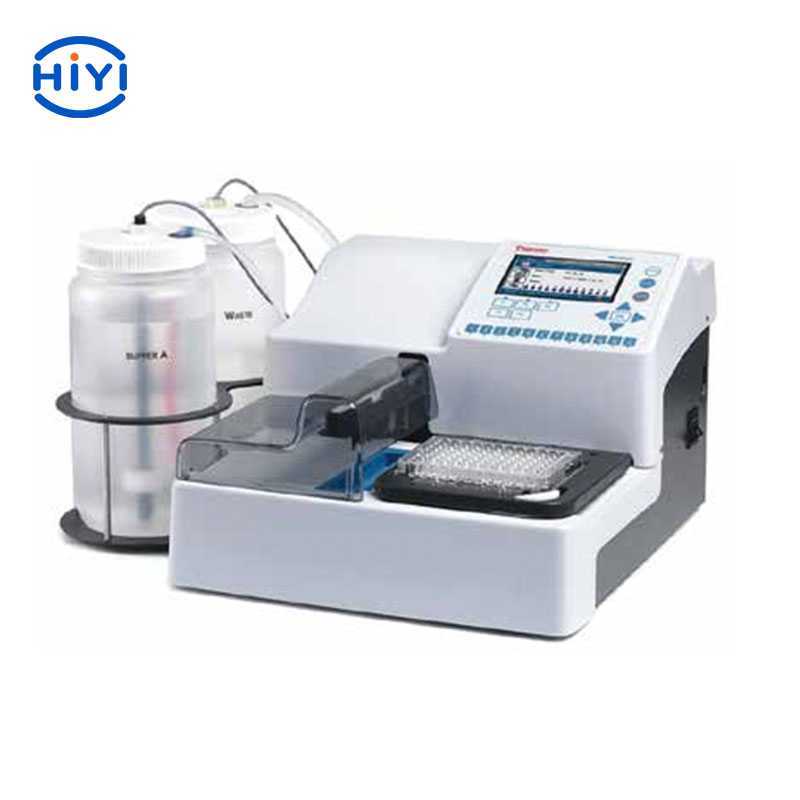

Wellwash and Wellwash Versa Microplate Washer


Reliable and easy-to-use Thermo Scientifi c™ Wellwash™ microplate strip washers provide secure washing performance for routine and research ELISA applications. Wellwash washers feature a large color display with graphical user interface, local language versions, and non-pressurized bottles for optimal ease of use, convenience, and safety.




Features:

Wellwash and Wellwash Versa washers offers:
• Easy setup of wash protocols through a large color screen and a visual user interface
• A sweep mode to ensure an extremely low residual volume in the well, resulting in excellent washing performance and reliable ELISA results
• Adjustable wash parameters, such as dispense and aspiration height and aspiration speed, for optimal washing performance
• A USB port for transferring protocols between several washers and for printing reports and log files

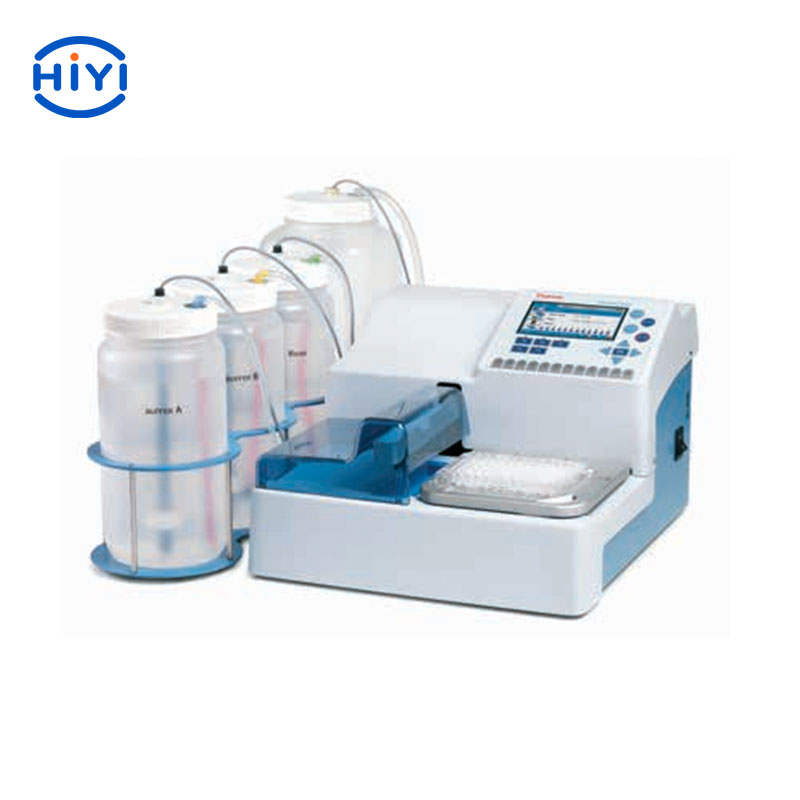

In addition, the Wellwash Versa washer offers:
• Very fast and simple instrument setup and use with color-coded tube fi ttings and liquid-level sensor cables
• Wide selection of wash heads for 96-well plates and 1 x 16 wash head for 384-well plates
• Specially designed 2 x 8-cell wash head for gentle washing of cells in a 96-well plate
• Two wash bottles and one rinse bottle for increased fl exibility
• Easy connection to automation systems



Application:



ItemWellwashWellwash Versa
Number of wash buffer channels1 pcsUp to 3 pcs
Bottle2 litre wash bottle, 2 litre waste bottle2x2 litre wash bottles, 1x2 litre rinse bottles, 4 litre waste bottles
Head wash configuration1x8 and 1x12 wash heads1x8, 1x12, 2x8, 2x12 and 1x16 wash heads, 2x8 cell wash heads
Plate type96 well plate96, 384 well plates
Pump typePeristaltic pumpPeristaltic pumps
Wash volume50-1000µL50-1000µL (96), 20-300µL (384)
Pre-wash volume5-100mL5-100mL
Rinse volume5-100mL5-100mL
Volume of dispensing liquid50-400µL50-400µL (96), 20-120µL (384)
Residual volume<1.5µL<1.5µL
Display screenResolution 480x272 / High contrast colour displayResolution 480x272 / high contrast colour display
Data connectionUSB portUSB port
Automation compatibleNoYes (RS-232C)
Dimensions (H x W x L)345x385x240mm/13.6x15.2x9.4in.345x385x240mm/13.6x15.2x9.4in.
Weight9kg(20 lbs.)9kg(20 lbs.)
