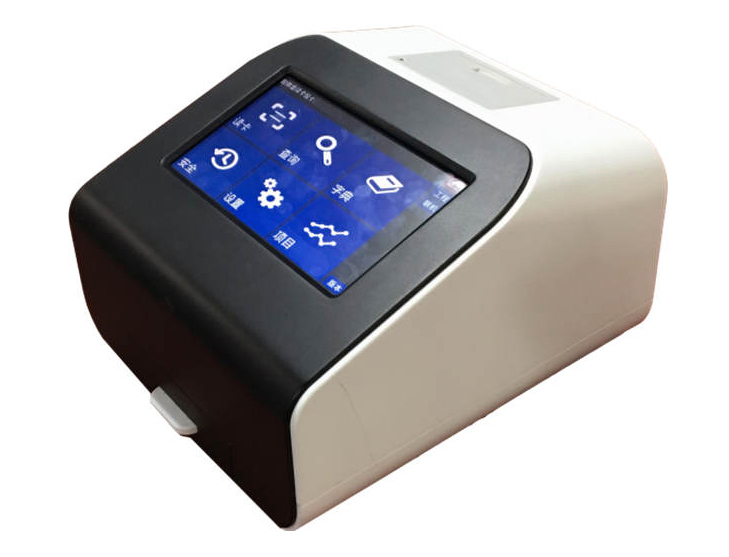

CGTM Colloidal Gold Food Safety Analyzer
Features:
1. Streamlined appearance design of the instrument, strong and durable.
2. large screen LCD display, reading intuitive.
3. light source using light-emitting diodes, energy saving, environmental protection, long life, fast response and other advantages.
4. large capacity memory.
5. Internal microprocessor self-diagnosis of power supply, light source, etc.
6. the instrument is equipped with two USB interfaces, which can be used for data processing and statistical analysis through the instrument itself.
7. strong monitoring network information function, can effectively implement remote monitoring and management.
8. The instrument is composed of switching power supply, optical path system, Android system and sample transmission system.
9. Comprehensive Chinese report output in various forms, supporting built-in thermal printer.
| Operating System | Android 4.0 |
| Input method | Capacitive touch screen |
| Display | Adopt 7-inch industrial screen grade capacitive touch screen with 1024*600 resolution |
| Image processing performance | Adopt CMOS complementary metal oxide conductor sensor for dynamic image processing and analysis |
| Detection port | Single-link card, triple-link card and dual card detection port with interchangeable compatible slots |
| Data transmission | A.Wireless WiFi function (support IEEE 802.11 b/g/n) |
| B.10/100M wired network (support IEEE 802.11 b/g/n) |
| Bluetooth module 1pc |
| External Interface | USB interface 2 pcs |
| RS232 DB9 standard serial port, 1pc |
| Printer | Adopt micro printer, replaceable paper |
| Detection repeatability | CV≤3% |
| Detection time | The single sample detection time of the detector is about 5 seconds |
| Storage | 16G large capacity memory, can store and measure multiple test items |
| It can store more than 500 test items, more than 2 million test data (expandable), and has the function of data browsing and searching. |
