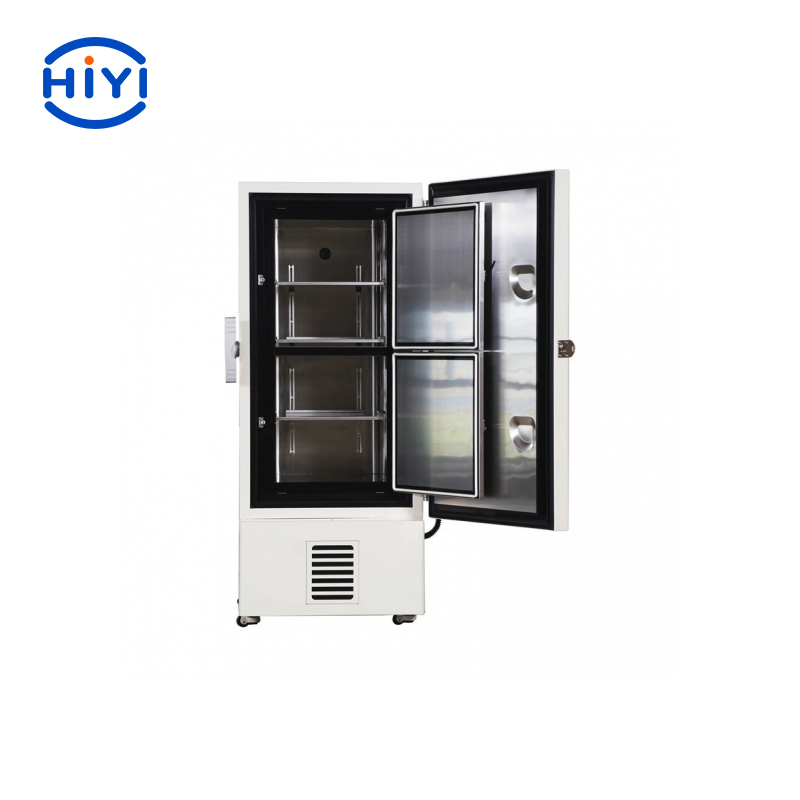

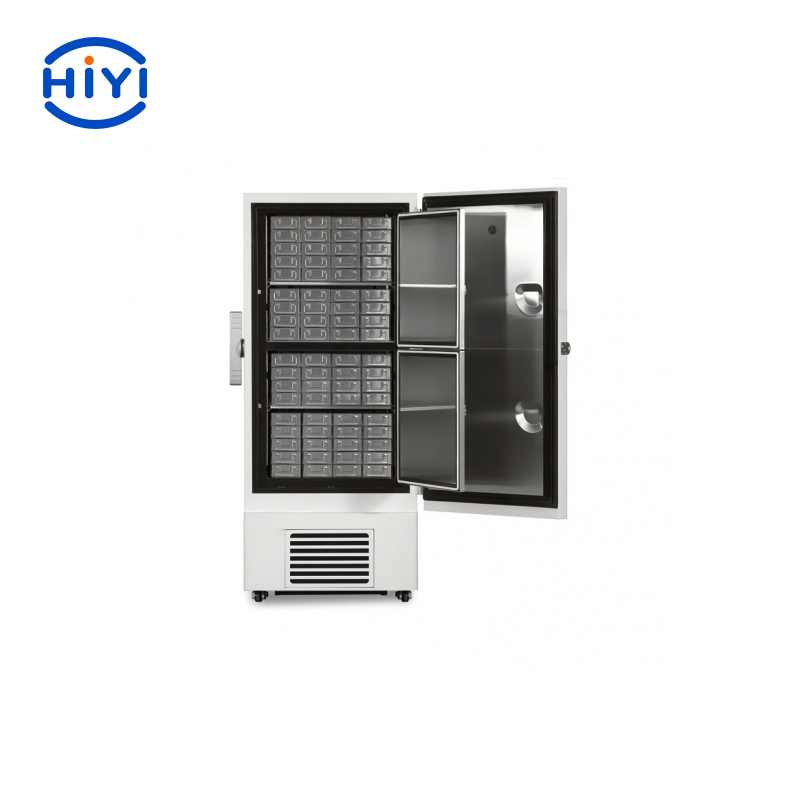

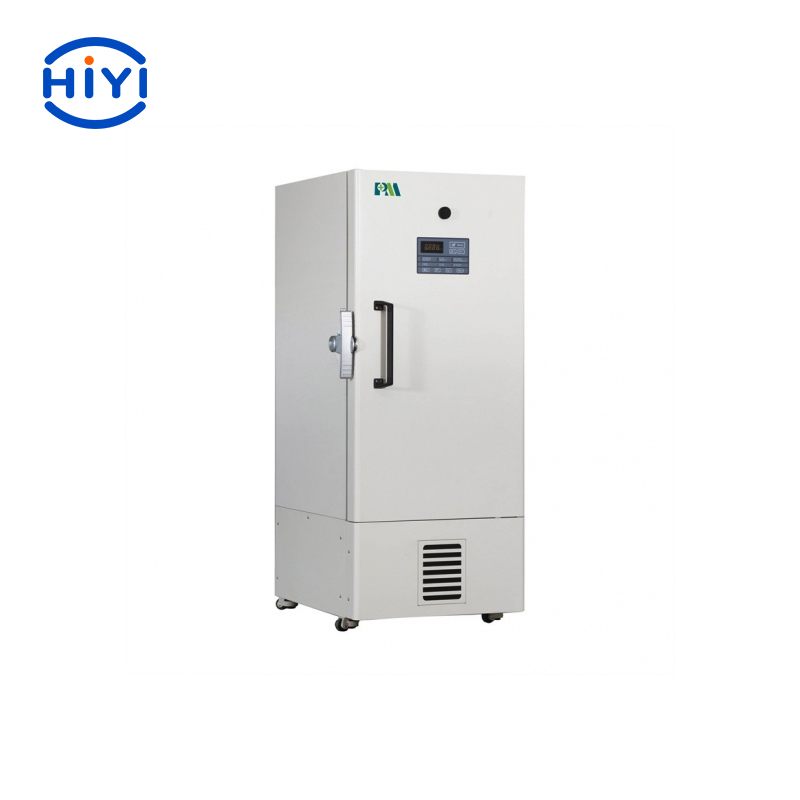

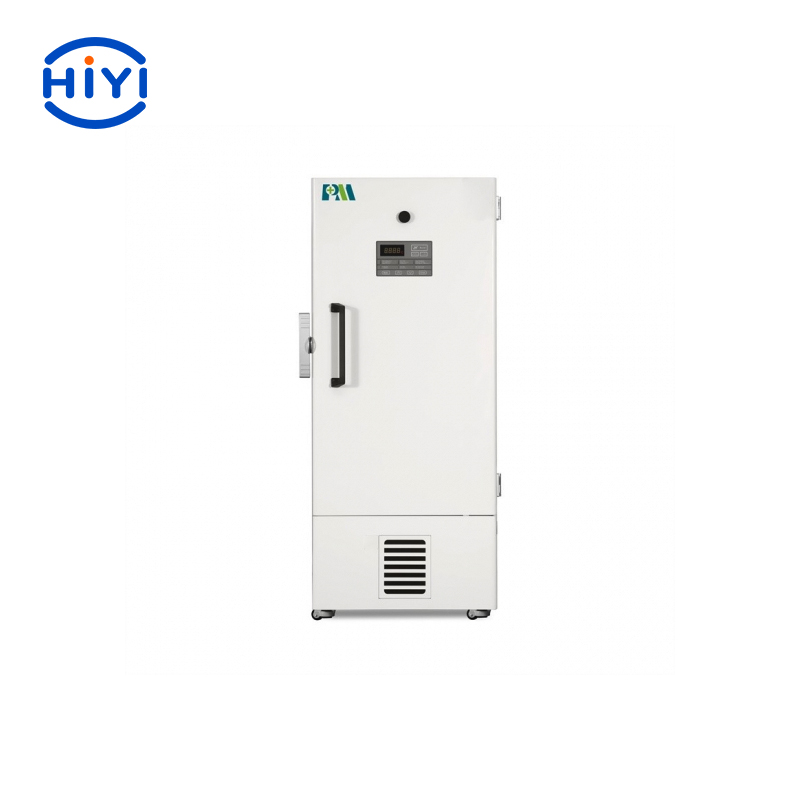

Automatic Cascade System Ultra Low Temperature Freezer
MDF-86V-E Series
Features:
Large LED Display
Big LED Display is good for people who can control this ultra low freezer ,also monitor all data during the running .
10 Types of Alarm
high and low temperature alarm, power failure alarm, high and low voltage alarm, sensor failure alarm, low battery alarm, condenser heat dissipation alarm, system failure alarm, etc, to ensure the safety of stored samples. Start-up delay and shutdown interval protection functions ensure reliable operation.
Eco-Friendly
CFC Ultra-low power consumption, down to less than 10kWh/day, ensuring a world leading environmentally friendly performance
Energy Saving
The ultra-low temperature freezer adopts the unique secondary foaming technology, and the ultra-thick VIP insulation layer greatly improves the insulation effect; the VIP vacuum insulation board tightly locks the cold air to ensure the insulation effect.

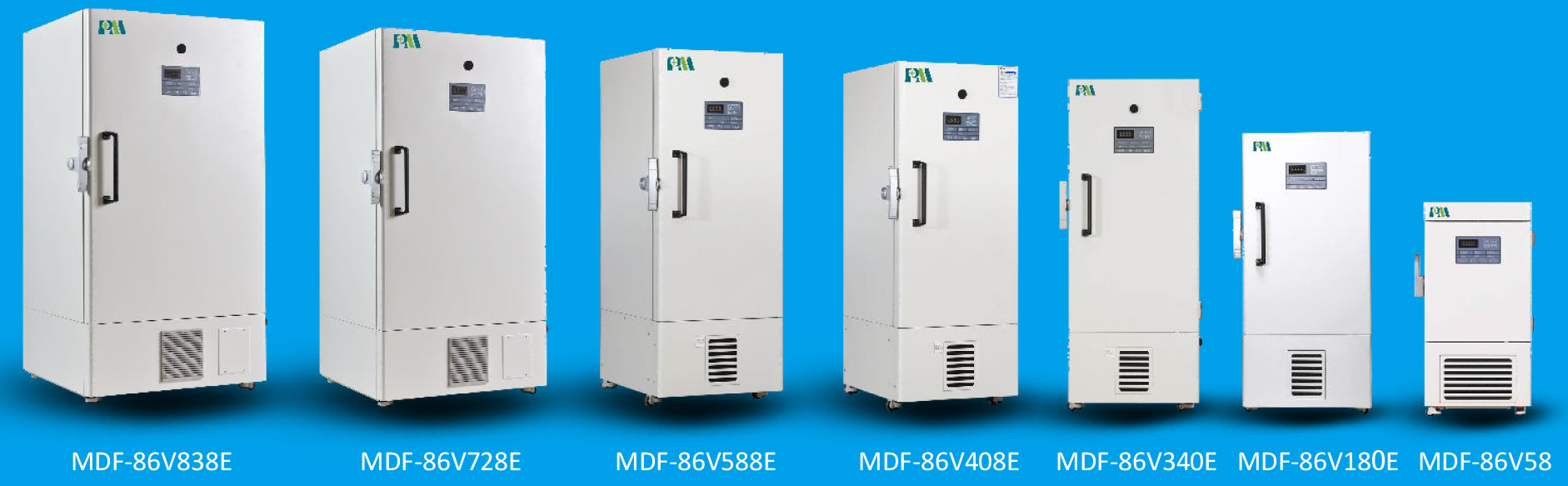

| Model | Shelf/Drawer QTY | Capacity（L/cu.ft) | Measurement(W*D*H)(mm) | Insulation | Racks | Boxes (2 Inches) | Samples Loading QTY(2ml) |
| MDF-86V180E | Stainless steel shelf/2 | 188/6.63 | 850*930*1595 | PURF | 9(4X3) | 108 | 10800 |
| MDF-86V340E | Stainless steel shelf/3 | 340/12 | 875*980*1900 | PURF | 12(4X4) | 192 | 19200 |
| MDF-86V408E | Stainless steel shelf/3 | 408/14.40 | 890*930*1945 | PURF | 16(5X4,4X4) | 288 | 28800 |
| MDF-86V588E | Stainless steel shelf/3 | 588/20.76 | 880*1090*1995 | VIP plus PURF | 16(5X5) | 400 | 40000 |
| MDF-86V728E | Stainless steel shelf/3 | 728/25.7 | 1229*1012*1994.5 | VIP plus PURF | 24(5*4/6*4) | 504 | 50400 |
| MDF-86V838E | Stainless steel shelf/3 | 838/29.59 | 1175*1075*1990 | VIP plus PURF | 24(5X5) | 600 | 60000 |
| Brand: | PROMED |
| Temperature Range: | -40℃~-86℃ |
| Capacity: | 180L,340L,408L,588L,728L,838L |
| Cooling Type: | Direct cooling |
| Display: | LED display |
| Temp. Controller: | Microprocessor |
| Ambient Temperature: | 10℃~32℃ |
| Power Supply: | 220V/50Hz or 110V/60HZ |
