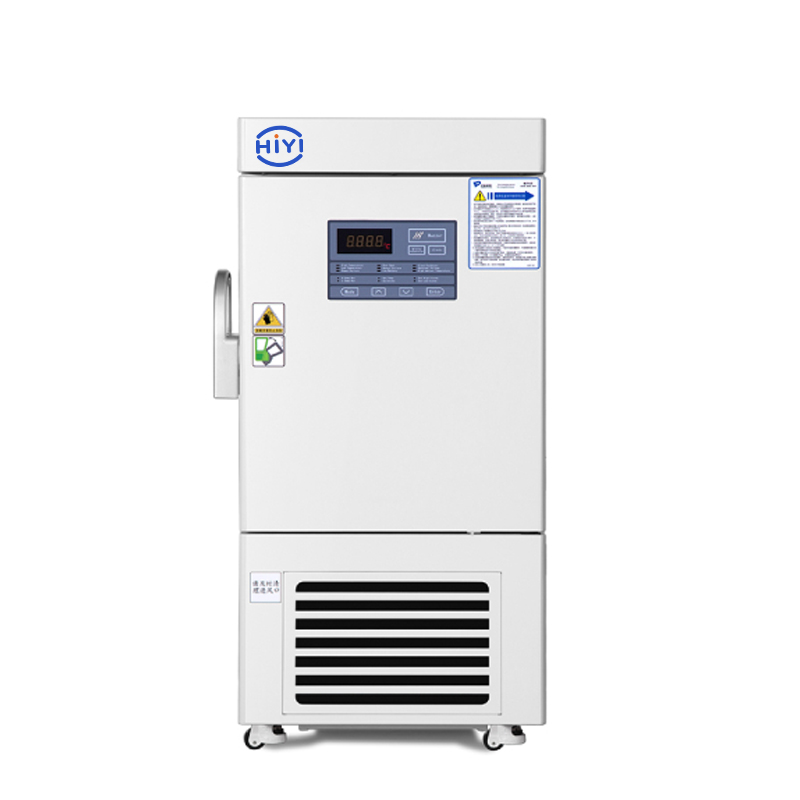

-86℃ ULT freezer MDF-86V588

Low Noise
Silent design,suitable for quite environment
Convenient Use
Precised temperature control,safety lock design
Stable Performance
The lowest temperature inside can be to -86℃

Inquiry
(+86)010-5653 8958
  • Product description
  • Product parameter
  • Product video

UIT Freezer

This product is specially designed and manufactured for long term storage of various biological product,including viruses, germs. erythrocytes, leucocytes and cutis. Applications can be found in blood banks, hospitals, epidemic prevention services, and research institutes, laboratories in electronic and chemical plants. bio-logical engineering institutes and marine fishery companies.



Filed proven reliability

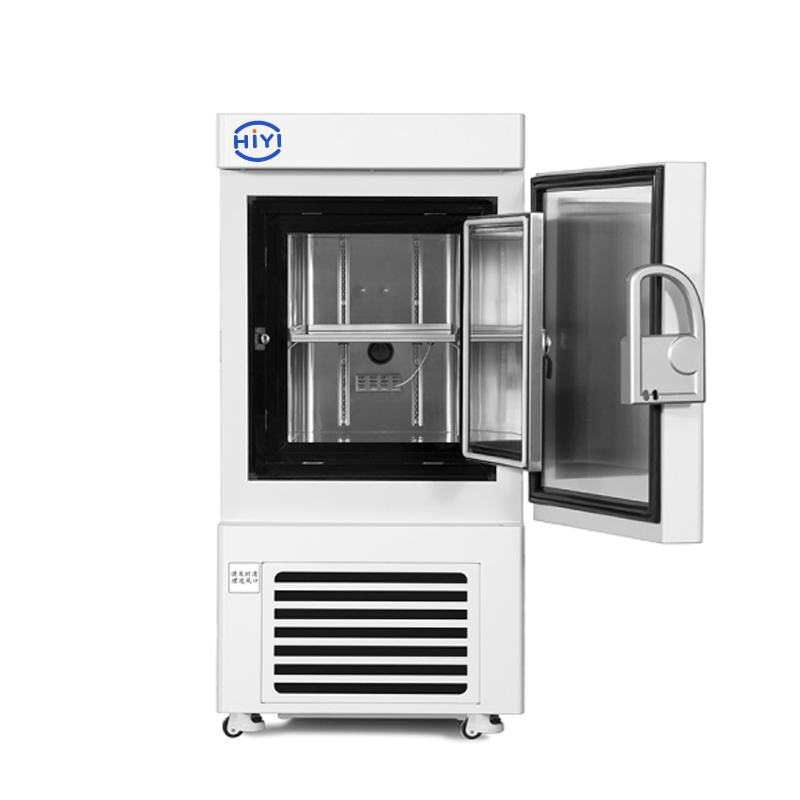

Unique insulated inner door design for four separate storage compartments to minimize frost buildup inside the chamber.

Specialized control system design for a well-balanced operation of cascade refrigeration system.

Positive filed proven reliability record.



Safety

Malfunction alarms including high and low temperature, power failure, sensor error, clean-filter, and extremely high ambient.

Capable of producing two types of alarm outputs: audible buzzer and visible flashing light.

Door open feature standard and USB port for temperature date downloading standard on upright models.

Remote alarm contacts.



Installation and Application

Wide rage operating voltage system from 185V to 260v designed to allow units installed in areas with poor voltage condition

Suitable for 10℃to 32℃ambient temperature



Energy saving

Unique door seal design for the minimum loss of cold temperature during a door opening.

High performance VIP insulation panels to minimize cabinet heat gain and to improve temperature stability.



Key design features

Microprocessor-controlled system designed for controlled rage of -40℃to -86℃for cabinet space with 1℃increment

Settable high temperature and low temperature alarms.

Automatic clean-filter alarm and sensor error alert.

 Adjustable storage shelf height

 Optional temperature recorder. storage racks and storage box

  •


Technical Data
Type-86℃ ULT Freeer
Cabinet TypeVertical
Climate ClassN
Cooling TypeDirect Cooling
Defrost ModeManual
RefrigerantHC
Performance
Cooling performance(℃)-86
Temperature Range(℃)-60~-86℃
Electrical Data
Power Supply220/50Hz
Power(W)815W
Dimensions
Capacity(L)588
Net/Gross Weight(kg)249/275
Internal Size(W*D*H)mm606×738×1310
External Size(W*D*H)mm872×1100×1994.5
Packing Size(W*D*H)mm970×1140×2190
Functions
AlarmsHigh and low temeprature alarms
AccessoriesCaster
OptionalTemperature Recorder
CertificateISO.CE
