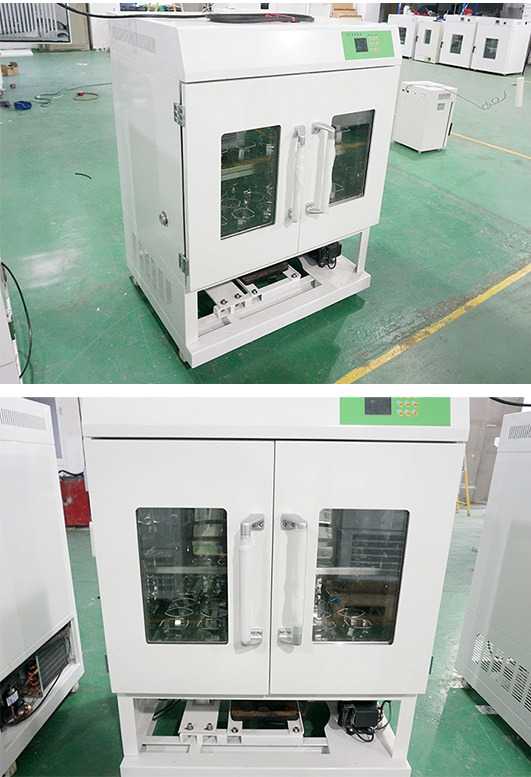

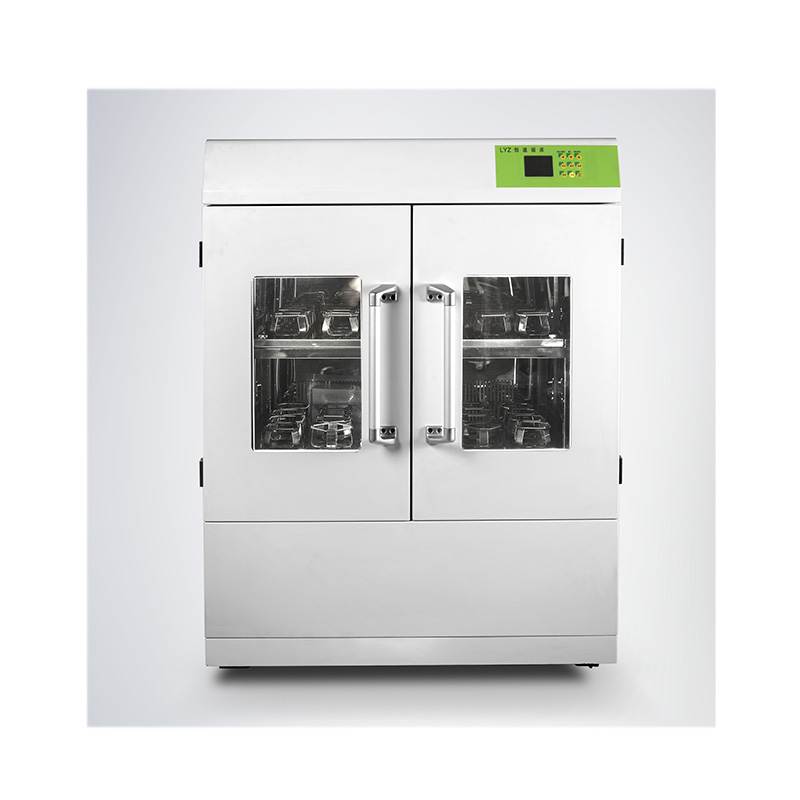

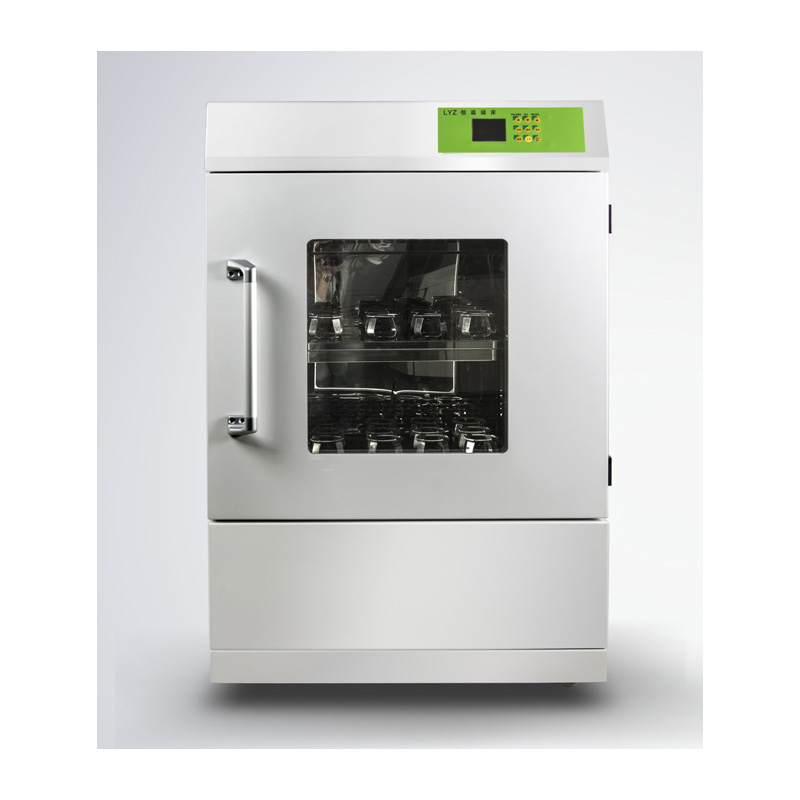

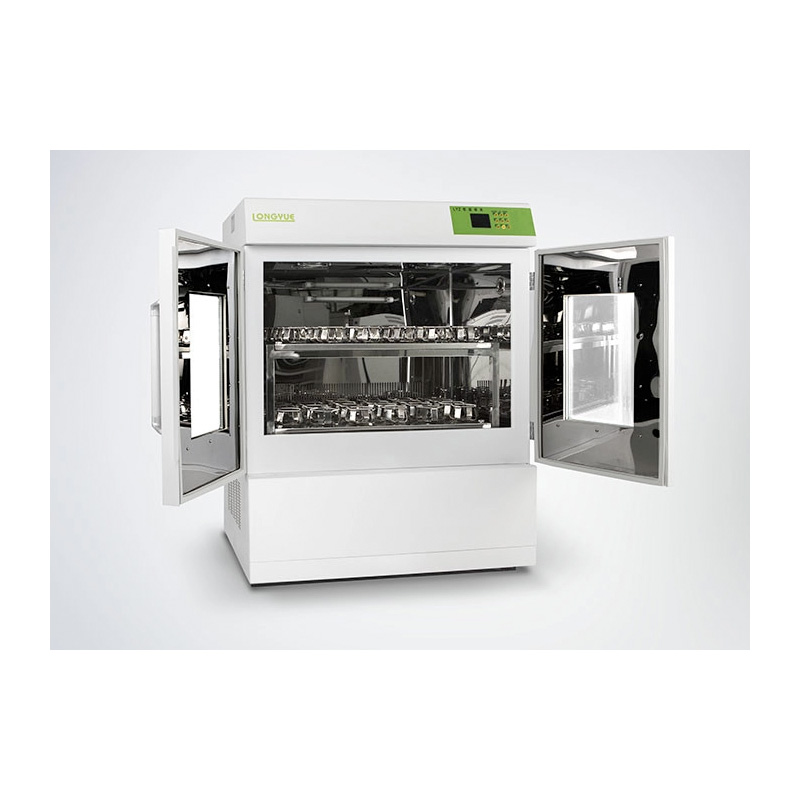

LYZ Series LCD Orbital Shaker Incubator Single Door 2 Tray Orbital / Double Door & Double Layer

These Stackable models deliver all the features of the Benchtop and Floor Model Shaking Incubators, with even greater load capacity. The unit performs from 30-400 RPMs with a smooth, quiet oscillation. The door of these are designed with hydraulic pistons making it easy to lift during loading and unloading. These state of the art orbital shaking incubators feature a universal lift-out shaker platform, which accommodates a wide range of flask clamps, test tubes racks and micro titer plate clamps. To better support the load over years of use, we utilize four load-bearing positions for optimal weight distribution. For maximum load flexibility, the unique counter-balanced weighting system is adjustable to accommodate off-center loads and varying capacities.

Inquiry
(+86)010-5653 8958
  • Product description
  • Product parameter
  • Product video

LYZ Series LCD Orbital Shaker Incubator Single Door 2 Tray Orbital /Double Door & Double Layer



  • Integrated with incubator and shaker to save space and cost.

  • High quality steel shell, polished stainless steel chamber.

  • Unique slope design panel with large LCD display, better visual effect.

  • With operation data memory and password locking function to eliminate faulty operation.

  • Non-volatile memory saves settings during a power outage and automatically restarts the unit as originally programmed after power is restored.

  • When the measured temperature deviates from set temperature by 3Ȣ (can be set arbitrarily) will automatically stop heating and send out audible and visual alarms.

  • LYZ-2102C, LYZ-2102, LYZ-2112B equips with strong and fast refrigeration system for instant cooling requirements, automatic defrost.

  • The most advanced large torque motor to ensure continuous work without maintenance.

  • With large view window and built-in lighting for easy observation.

  • Low noise , luxury and beautiful appearance.

  • Equipped with leakage protection.

  • Options: 1. Universal Tray 2. Stainless steel fask clamp (50ml,100ml,250ml,500ml,1000ml,,2000ml,3000ml,5000ml available)

Model

LYZ-2102C

(Single door)

LYZ-1102C

(Single door)

LYZ-2102

(Double door)

LYZ-1102

(Double door)

LYZ-2112B

(Double door)

LYZ-1112B

(Double door)

Shaking Speed(rpm)40-300
Speed Accuracy(rpm)±1
Swing Amplitude(mm)Φ26
Standard Configuration250ml×24250ml×35 or 500ml×24250ml×45 or 500×37
Maximum Capacity100ml×48 or 250ml×24 or 500ml×18 or 1000ml×12

250ml×70 or 500ml×48

or 1000ml×24 or 2000ml×8

250ml×90 or 500ml×74

or 1000ml×36 or 5000ml×8

Tray Size(mm500×350740×460970×760
Power Rating(W)55038075055014201150
Temperature Range(℃)4-60RT+5-604-60RT+5-604-60RT+5-60
Temperature Accuracy (℃)±0.1
Temperature Uniformity(℃))±1
Timing Range1-9999min
DisplayLCD
Power SupplyAC220V~240V±10% , 50~60HZ
Tray Included2
Volume W×D×H(mm)66×44×65(170L)84×52×64(280L)109.5×62.5×85(582L)
Exterior Size(W×D×H)mm70×56×12695×70×126120×82×160
Net Weight(kg)165140240220425456
