LDS Series Medicine Stability Test Chamber

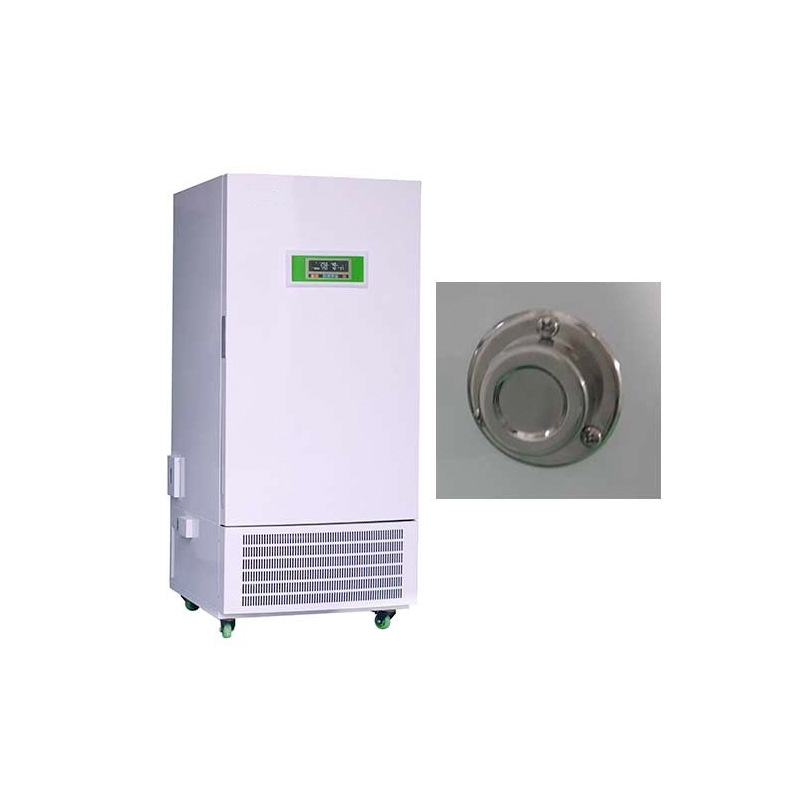

Microcomputer controller, stable, accurate and reliable. 304 stainless steel chamber, semicircular arcs at corners for easy operation. Unique air duct system ensures wind equally distributed in the chamber. A test hole is at the left of the cabinet, with a diameter of 25mm. Quality Guarantee: Temperature and humidity controller, compressor, circulating fan and other key components are all from abroad. Operate stably, safe and reliable. Safety Function: ·Independent alarm system for temperature-limiting, automatically interrupt operation when exceeding or under the limit. Ensure the safety of the experiment. Ultraviolet Sterilization System (optional) Programmable Touch Screen Controller (optional) Illumination Auto Monitor and Control (optional) The temperature storage units allow pharmaceutical products such as medicine, blood samples and vaccines to be stored under precise temperature ranges and then tested.
Testing under controlled temperatures such as those in chambers means that p

Inquiry
(+86)010-5653 8958
  • Product description
  • Product parameter
  • Product video

LDS Series Medicine Stability Test Chamber


  • Dual refrigeration system.

  • Imported compressor with self-developed compressor cooling system, extend service life of the compressor.

  • Imported humidity sensor, ensuring high accuracy of humidity.

  • PID control for temperature and humidity, more accurate,easy menu operation interface.

  • Over-temperature alarm system:automatically stop working when exceeded the limit temperature and send out audible and visual alarm,ensure experiments run safely.

  • Large LCD screen to display more data at same time.

  • Newest multi-segment programmable control technology for temperature and humidity, high precision.With multiple programs and multiple cycles, each cycle is divided into 30 segments, each segment contains 99 hours and 99 minutes of cycle steps, it can happily meet almost all the complicated experiment process.

  • Equipped with JAKEL circulation fan ,unique designed air duct for good air circulation, ensuring good temperature uniformity inside.

  • Equipped with built-in stainless steel water tank at the bottom of equipment to supply water by pump for the humidifcation tank.

  • Equipped with spare temperature control which ensures the product work normally even the main temp.control failed(for heating).

  • Equipped with printer which can record and print the operating parameters at any time.

  • Mirror stainless steel chamber, adjustable shelf.

  • The chamber is equipped with a power socket and UV lamp for sterilization.

  • Double door design. Tempered glass inner door for clear observation. The outer door adopts magnetic seal design, good sealing performance.


This equipment provide a long time stable environment of temperature, humidity and illumination for the Pharmaceutical industry medicine invalidation evaluation. It’s applied in the medicine accelerating test, growth test, high humidity test and high illuminance test.

A Stability Testing Chamber allows for the conduct and monitoring of chemical, biological, and microbiological tests.
Within the chamber, products can be tested to see if factors such as humidity, light and temperature influence products whilst they are being stored.




Model


LDS-175Y-N/ LDS-175T-N

LDS-275Y-N / LDS-275T-N

LDS-375Y-N / LDS-375T-N

LDS-475Y-N / LDS-475T-N

LDS-800Y-N / LDS-800T-N

LDS-1075Y-N / LDS-1075T-N

LDS-175GY-N / LDS-175GT-N

LDS-275GY-N / LDS-275GT-N

LDS-375GY-N / LDS-375GT-N

LDS-475GY-N / LDS-475GT-N

LDS-800GY-N / LDS-800GT-N

LDS-1075GY-N / LDS-1075GT-N

LDS-175HY-N

LDS-275HY-N

LDS-375HY-N

LDS-475HY-N

LDS-800HY-N

LDS-1075HY-N

Temperature & HumidityTemperature & Humidity & LightTemperature & Light
Temperature Range(℃)0~65

Without Illumination:4~50

With Illumination:10~50

Temperature Fluctuation±0.5
Temperature Uniformity (℃)±2
Humidity Range(RH)30~95%None
Humidity Stability(RH)±3
Temperature Resolution(℃)0.1
Illumination(LX)None0~6000 adjustable
Illumination Difference((LX)
≤±500
Timing Range1~99 hours/period
Temp.and Humidity adjustingBalance temperature and humidity adjustingBalance temperature adjusting
Cooling SystemImported compressor
Controller

Y: Programmable (LCD display)

T: Programmable (touch screen)

GY: Programmable (LCD display)

GT: Programmable (touch screen)

HY:Programmable (LCD display)
Sensor

PT100

Capacitance sensor

PT100
Ambient TemperatureRT+5~30℃
Power SupplyAC 220V±10% ,50HZ
Power Rating(W)1400/1950/2600/2800/3000/32001650/2200/2700/2900/3100/33001300/1750/2400/2600/2700/2800
Chamber Volume(L)175,275,375,475,800,1075
Chamber Size(W×D×H)mm

450×420×930

580×510×935

590×550×1160

700×550×1250

965×610×1370

950×700×1600

Shelf3
PrinterYes
Safety DeviceCompressor overheating and over pressure protection,Fan overheating protection, Over temperature protection, Overload protection,water shortage protection
