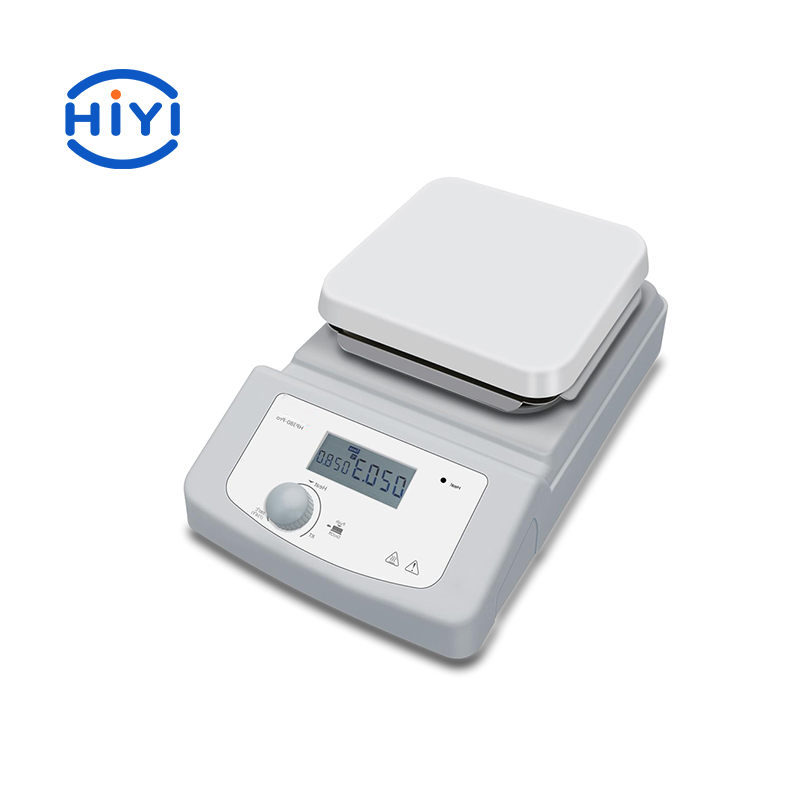

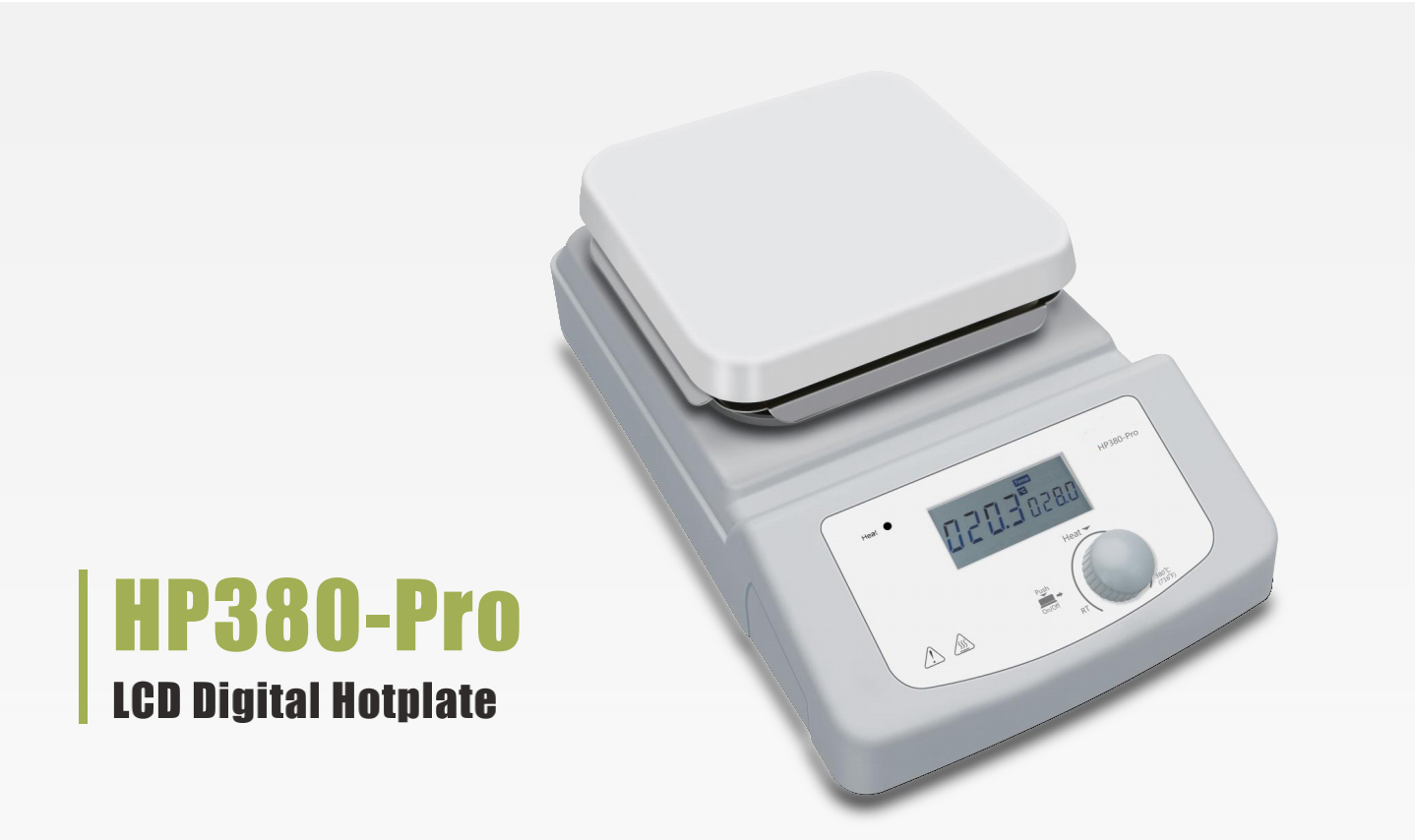

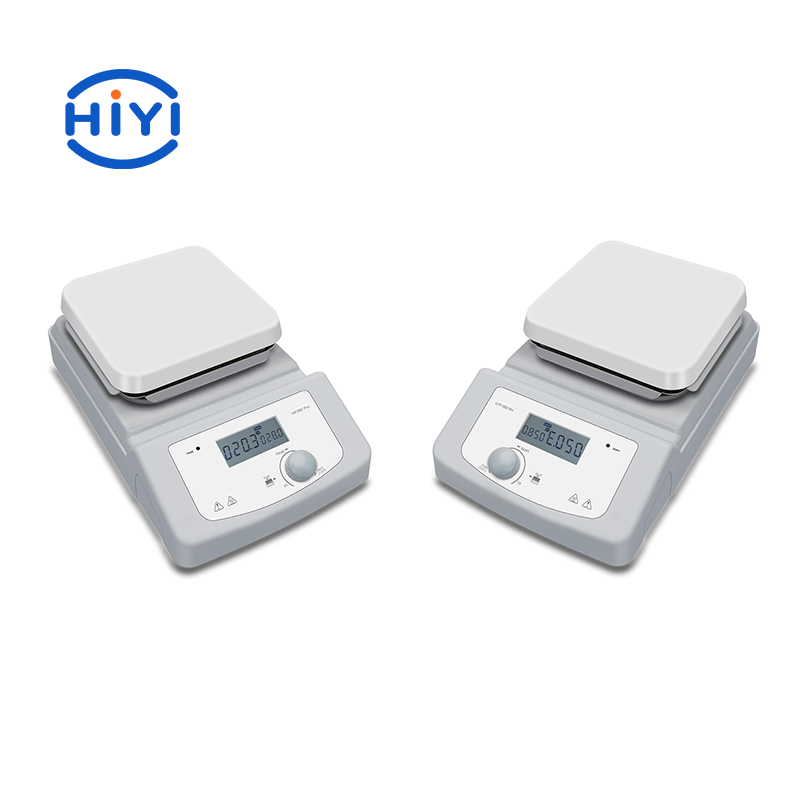

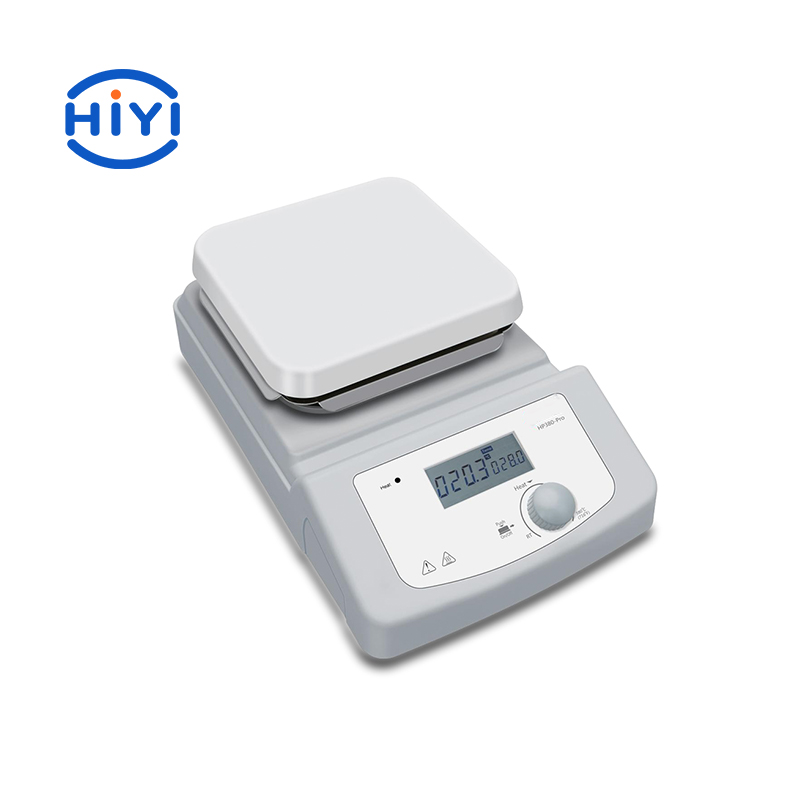

HP380-Pro LCD Digital Hotplate
Features:
• Max. heating temperature is 380°C
• High resolution LCD displays actual temperature
• Brushless DC motor is maintenance free
• Aluminum cover with ceramic work plate, allows for immediate heat transfer
• External temperature control is possible with temperature sensor PT1000
• Digital temperature control with max. temperature at 380°C
• Max. stirring quantity of H2O at 5L
Application:
Magnetic hotplate stirrers are used for low viscosity liquids or solid mixing, chemical synthesis, physical and chemical analysis, bio-pharmaceuticals etc.
| Specifications | HP380-Pro |
| Work plate Dimension | 140x140mm |
| Work plate material | Aluminum cover with
ceramic coating |
| Power | 510W |
| Heating output | 500W |
| Voltage | 100-120/200-240V 50/60Hz |
| Temperature display | LCD |
| Heating temperature range | Room temp.+5°C - 380°C |
| Over heat Protection | 420°C |
| Temperature display accuracy | ±1°C |
| External temperature sensor | PT1000 (accuracy ±0.5°C) |
| Protection class | IP21 |
| Dimension [W x D x H] | 320x180×108mm |
| Weight | 2.2kg |
| Permissible ambient temperature and humidity | 5-40℃ 80%RH
|
