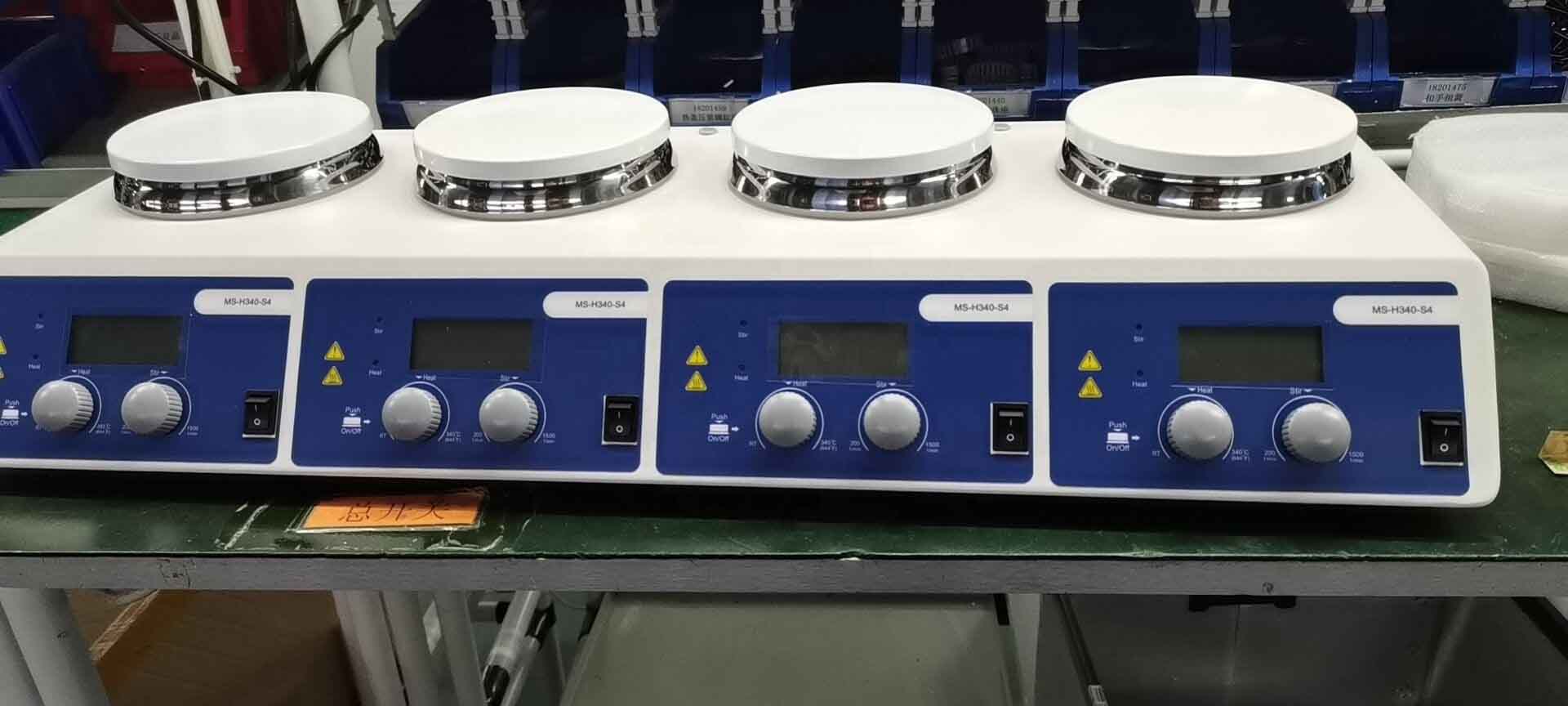

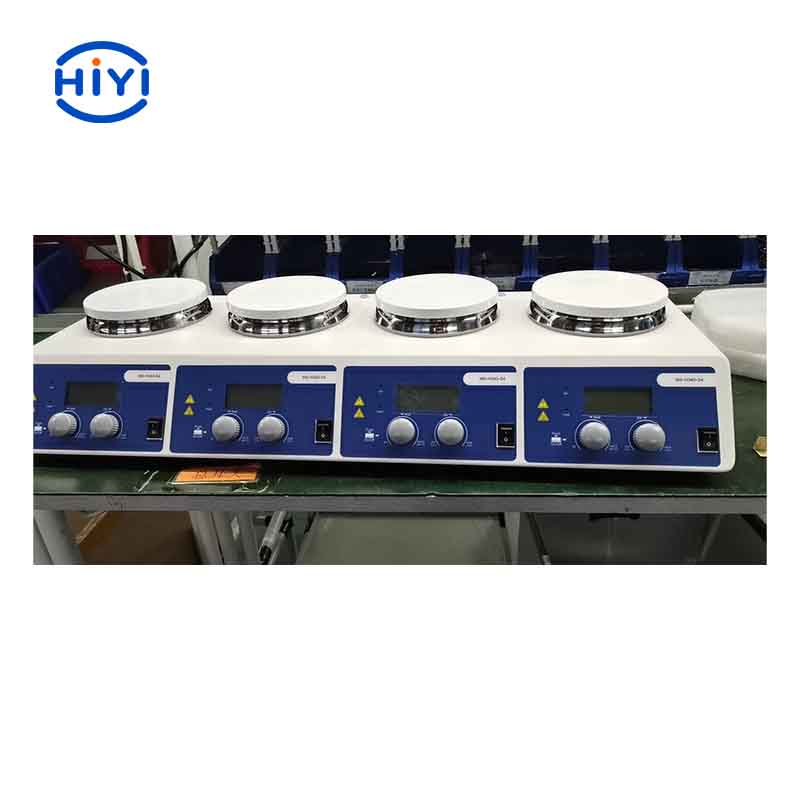

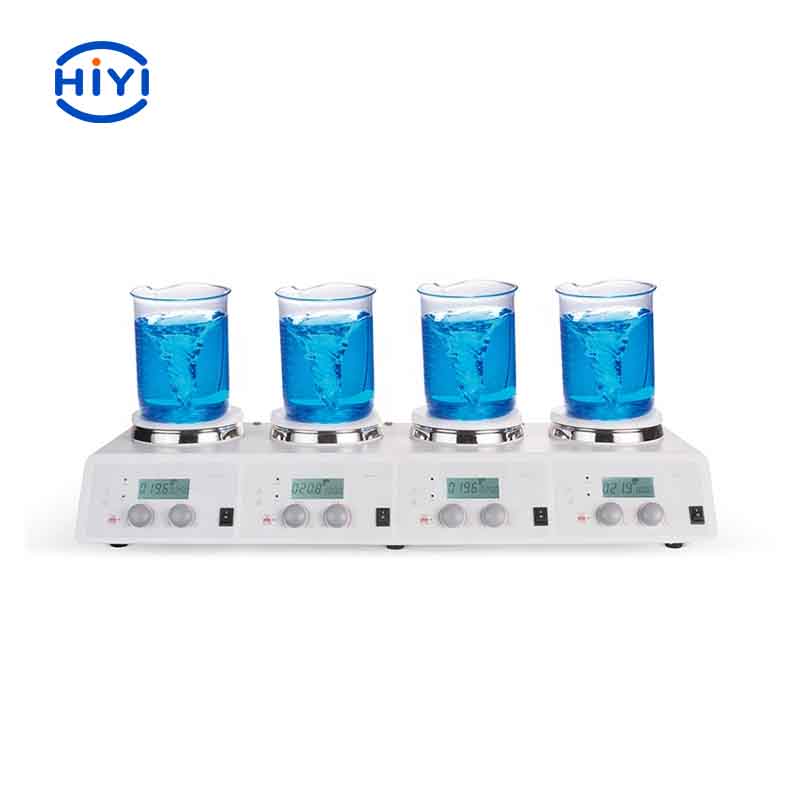

MS-H340-S4 LCD 4-Channel
Digital Magnetic Hotplate Stirrer
Features:
* Independent heating and stirring control for each position
* LCD display shows real-time temperature and speed
* PID controller ensures a precise and stable heating process (maximum temperature up to 340℃)
* Brushless DC motor is quiet, reliable & maintenance free, and provides more powerful speed control
* External temperature sensor (PT1000) with accuracy 0.2℃
* Overheating protection temperature at 420℃
* Stainless steel work plate with ceramic coating provides good chemical resistance

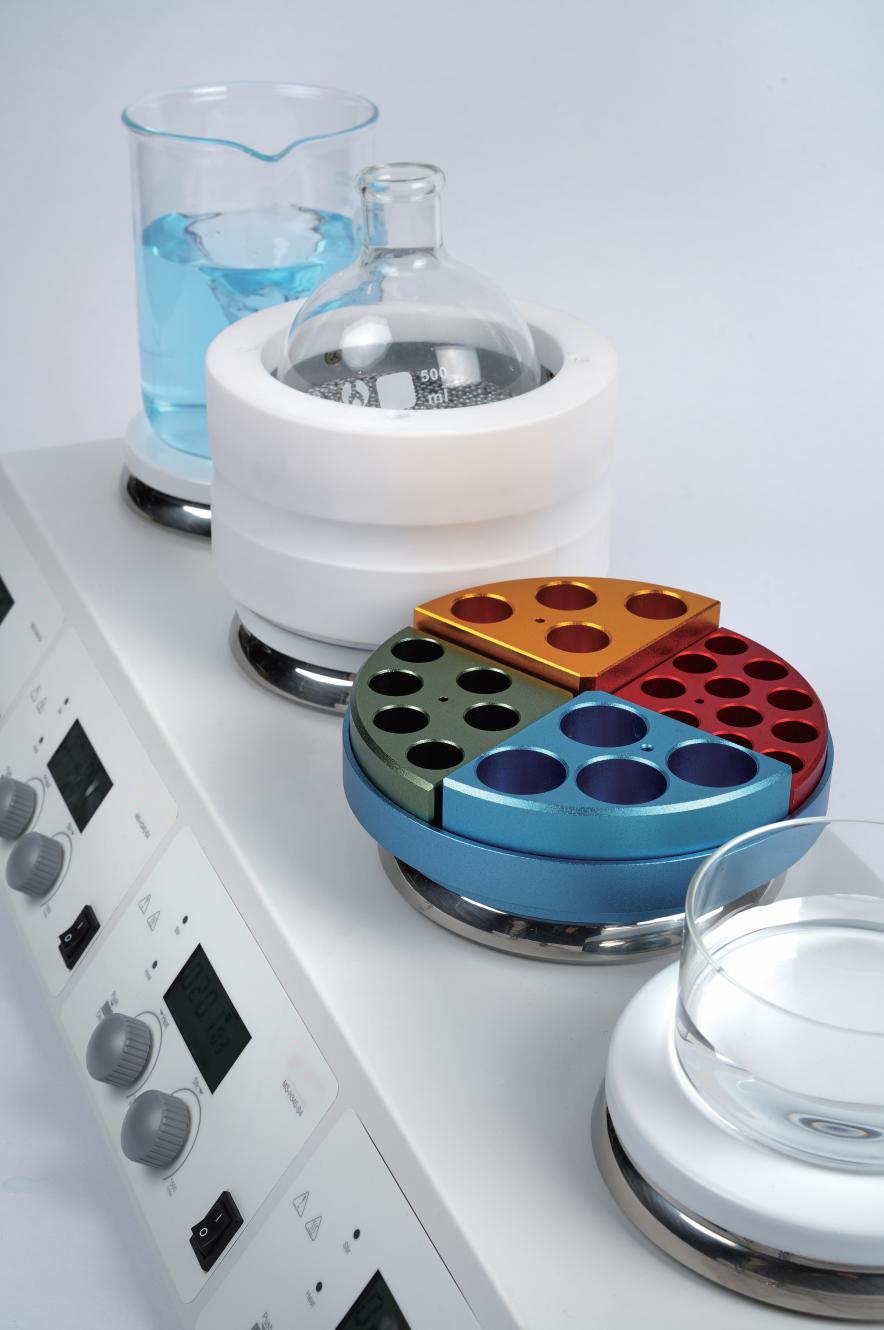

* Wide variety of accessories available to choose from
Application:
Magnetic hotplate stirrers are used for low viscosity liquids or solid mixing, chemical synthesis, physical and chemical analysis, bio-pharmaceuticals etc.
Specifications | MS-H340-S4 |
Work plate dimension | Φ135mm（5inch） |
Plate material | Stainless steel with ceramic coating |
Motor type | Brushless DC motor |
Motor rating input | 1.8W×4 |
Power | 515W×4 |
Heating Power | 500W×4 |
Voltage | 100-120V,60Hz; 200-240V,50 Hz |
Stirring positions | 4 |
Max. stirring quantity
of single position (H2O) | 10L |
Max. magnetic bar | 40mm |
Speed range | 200-1500rpm |
Speed display | LCD |
Temperature display | LCD |
Control accuracy of sensor[rpm] | ±20 |
Temperature range | 25-340℃ |
Over temperature protection | 420°C |
Temperature display accuracy | ±0.1°C |
External temp. sensor | PT1000（Accuracy±0.2℃） |
IP Protection class | IP21 |
Dimensions[WxDxH] | 698×270×128mm |
Weight | 9.5kg |
Permissible ambient temperature | 5～40°C |
Permissible relative humidity | 80%RH |
