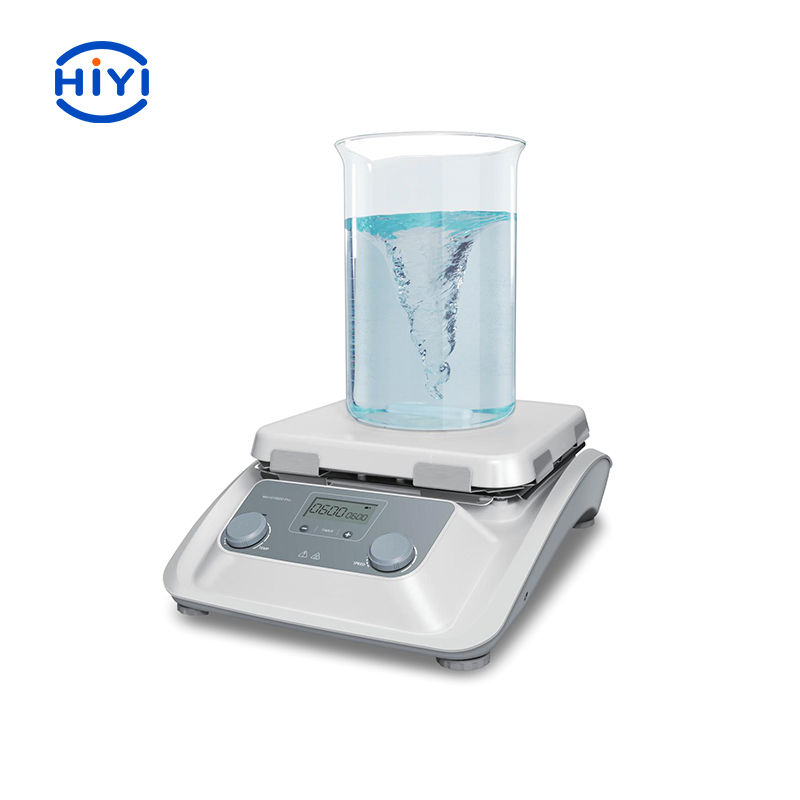

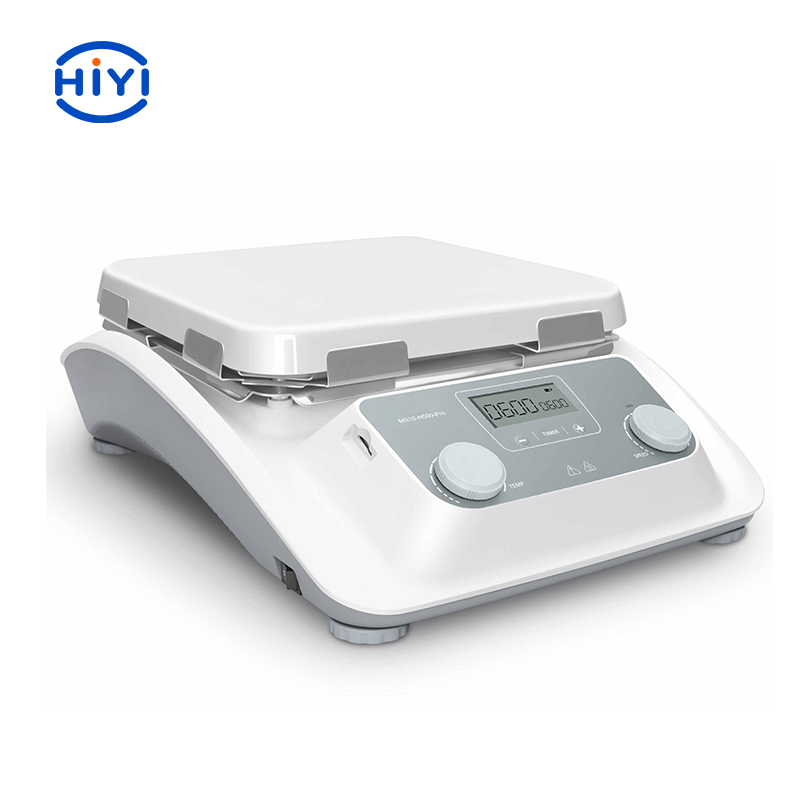

MS10-H500-Pro LCD Digital Magnetic Hotplate Stirrer
Features:
* Large volume: Up to 30L of liquid on 10-inch hot plate with powerful magnetic stirring
* Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer

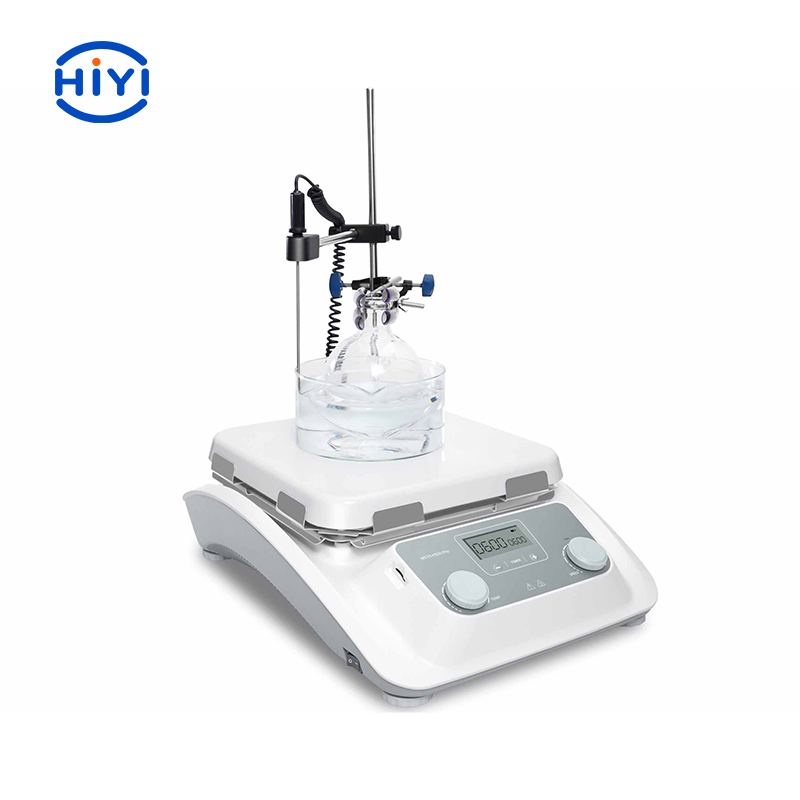

* LCD display for precise monitoring of speed and temperature . External temperature control is possible by connecting the temperature sensor (PT1000) with an accuracy at±0.2°C
* Digital speed control of 100 ~ 1500rpm
* Max. heating plate temperature 500℃
* The “HOT” warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off
* Data connector : The SD card also records the instrument's running data in real time.
* Timing function: the running time of the instrument can be set.
Application:
Magnetic hotplate stirrers are used for low viscosity liquids or solid mixing, chemical synthesis, physical and chemical analysis, bio-pharmaceuticals etc.
Work plate Dimension [W x D] | 254x254mm（10inch） |
Work plate material | Glass ceramic |
Motor type | Brushless DC motor |
Stirring positions | 1 |
Max. stirring quantity, [H2O] | 30L |
Max. magnetic bar[length] | 80mm |
Speed range | 100-1500rpm resolution±1rpm |
Speed,time, Temperature display | LCD |
Timer function | 1min-99h59min |
Heating temperature range | Room Temp.-500℃, increment1℃ |
Temperature control accuracy | ±1℃ (<100℃)±1%(>100℃) |
Overheating protection | 540℃ |
Temperature display accuracy | ±0.1℃ |
External temperature sensor | PT1000(±0.2℃) |
"Hot" warning | 50℃ |
Data connector | SD card |
Protection class | IP21 |
Power | 1400W |
Heating output | 1350W |
Voltage Frequency | 100-120/200-240V 50/60Hz |
Dimension [WxDxH] | 328x424x138mm |
Weight | 7.18kg |
Permissible ambient temperature and humidity | 5-40℃，80%RH |
