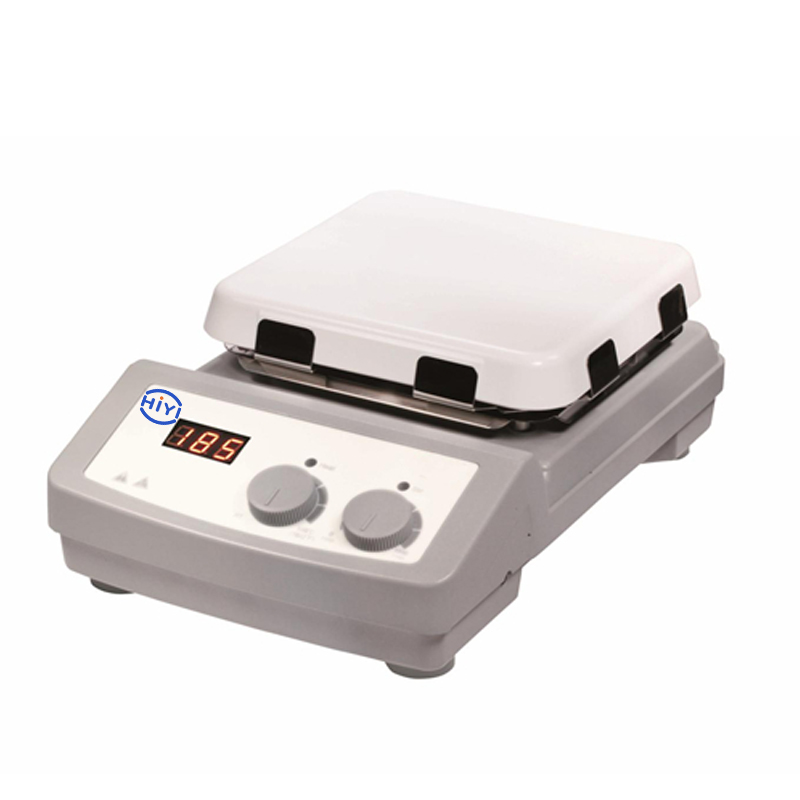

MS7-H550-Pro

Inquiry
(+86)010-5653 8958
  • Product description
  • Product parameter
  • Product video

Key Features

•   LCD display for precise monitoring of speed and temperature
•   Built-in PID controller ensures safe heating of the medium with overheating protection
•   Max. heating plate temperature 550°C
•   Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer
•   External temperature  control  is  possible by  connecting  the temperature sensor(PT1000) with an accuracy at ±0.2°C
•   Digital speed controlling, max. speed at 1500rpm
•   Outstanding brushless DC motor enables more stirring power
•   Two rotating knobs enable easy adjustment of speed and temperature
•   The “HOT” warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off
•   Remote function provides PC control and data transmission

SpecificationsMS7-H550-Pro
Work plate Dimension [W x D]184x184mm (7 inch)
Work plate materialGlass ceramic
Motor typeBrushless DC motor
Motor rating input18W
Motor rating output10W
Power1050W
Heating output1000W
Voltage100-120/200-240V  50/60Hz
Stirring positions1
Max. stirring quantity, [H2O]20L
Max. magnetic bar[length]80mm
Speed range100-1500rpm
resolution ±1rpm
Speed displayLCD
Temperature displayLCD
Heating temperature rangeRoom Temp.-550°C,increment 1°C
Temperature  control accuracy±1 °C (<100°C) ±1%(>100°C)
Overheating protection580°C
Temperature  display accuracy±0.1°C
External  temperature sensorPT1000 (accuracy ±0.2)
"Hot" warning50°C
Data connector RS232
Protection classIP21
Dimension [WxDxH]215x360x112mm
Weight5.3kg
Permissible ambient temperature and humidity5-40°C, 80%RH
