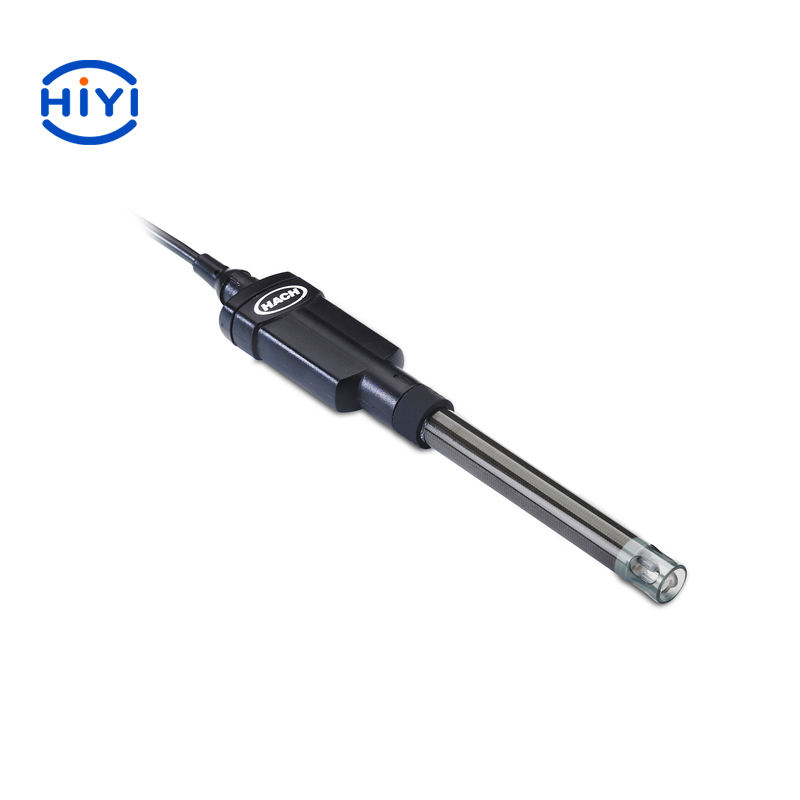

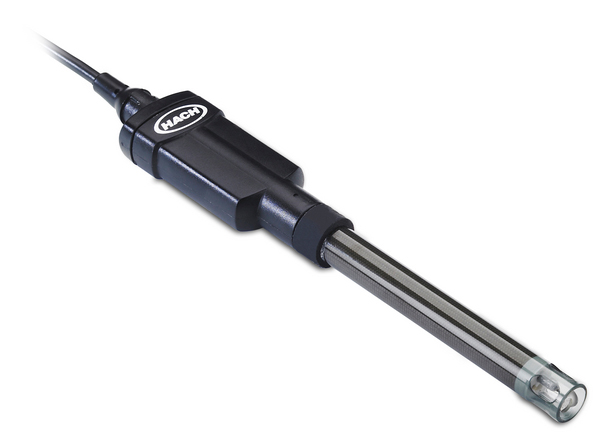

Laboratory General Purpose Refillable ORP/RedOx Electrode
IntelliCAL MTC30101
IntelliCALⓇ MTC301 is a digital combination oxidation reduction potential (ORP/RedOx) electrode with built-in temperature sensor. The MTC301 has a refillable with a ceramic pin reference junction. The laboratory version of this metallic electrode is shockproof with its epoxy plastic body protecting down to the platinum sensing element. The Electrode is available with a 3 or 1 m cable. The MTC301 electrode is ideal for measuring ORP/RedOx absolute mV values in wastewater, drinking water and aqueous media applications. The MTC101 is not suitable for use with organic solvents. A 59 mL bottle of reference electrolyte filling solution (3M KCl solution saturated with AgCl) is included with the probe.
* Provides fast, stable response in a variety of applications
* Ultimate traceability in measurement history
* User alerted when re-calibration is needed
* Can be moved between meters without the need to re-calibrate or re-enter measurement settings
Accuracy | ±0.02 mV or 0.05%, whichever is greater |
Cable Length | 1 m (3.28 ft) |
Electrode Type | Refillable Reference Element |
Filling Solution | 3 M KCl solution saturated with AgCl (#2841700) |
Junction | Porous Pin Junction |
Kit? | No |
Length | 175 mm (6.89 in.) |
Method Type | Laboratory: Refillable Reference Element |
Parameter | ORP |
Probe Type | Standard |
Product Kit | Model: MTC301
Accessories Included: None |
Range | ±1200 mV |
Reference Type | Ag/AgCl |
Resolution | ±0.1 mV |
Sample depth | 20 mm (0.79 in.) |
Sensor material | Epoxy |
Sensor Type | Platinum disc |
Special Features | Flat disc sensor for easy cleaning. |
Temperature Accuracy | ±0.3 °C (±0.54 °F) |
Temperature Range | 0 - 80 °C (32 - 176 °F) |
Temperature Resolution | 0.1 °C (0.18 °F) |
Test requirements | Parameter Needed: ORP
Minimum Sample Depth (mm): 20 |
Thermistor | ATC |
Weight | 0.1 kg |
What's included? | IntelliCAL MTC301 Laboratory ORP/RedOx electrode with storage soaker bottle, 1 m cable, 59-mL bottle reference electrolyte filling
solution 3M KCl with saturated AgCl solution), Test certificate, and Basic User Manual. |
