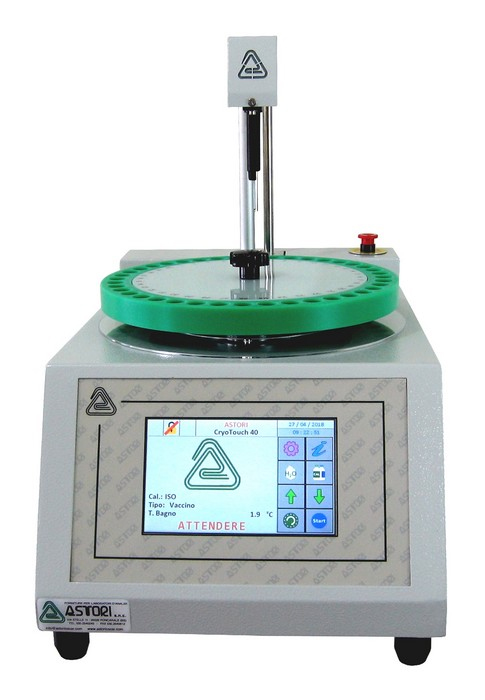

CryoTouch 40 - 40 sample automatic cryoscope with “lactose-free” function

CryoTouch 40 is a 40-sample carousel-based automatic equipment for the rapid determination of the milk cryoscopic point variation caused by added water, in full compliance with the IDF-ISO 5764:2009 international reference standard.

Inquiry
(+86)010-5653 8958
  • Product description
  • Product parameter
  • Product video

CryoTouch 40

40 Sample Automatic Cryoscope With “lactose-free” Function

CryoTouch 40-内容.jpg

Overview:

This next generation cryoscope includes a lot of useful features that the most recent technology allows: a full colour 7” touchscreen display, real-time visualization of the freezing curve, stable memory for more than 4,000 results, a PC software for data handling, a USB port for downloading all data to a pen drive and much more.

Features:

  • Choice among 6 values for setting the reference value and between 2 different formula to calculate the added water %

  • Choice between 2 reading modes: plateau mode according to ISO method or fixed-time mode

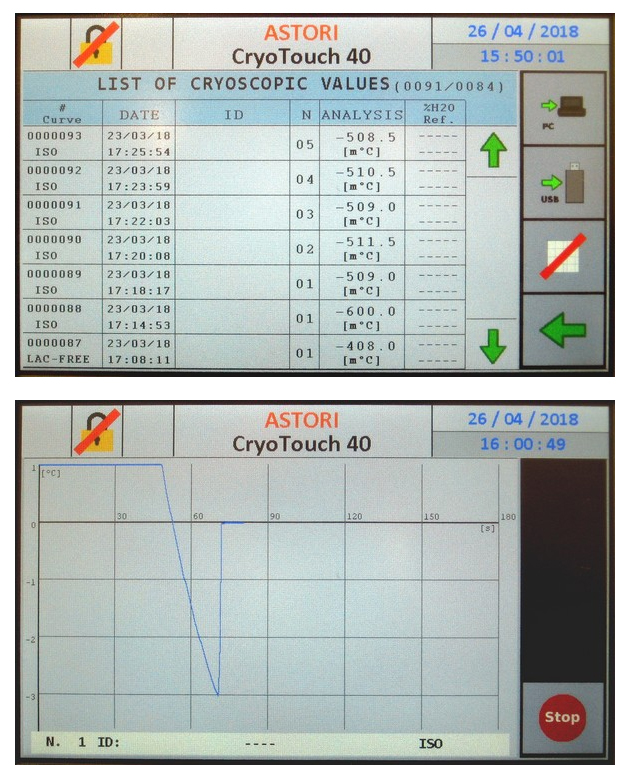

  • Real-time graph of the sample temperature during each analysis

  • An alphanumeric ID code can be added to each sample, easily

  • Optional barcode reader for a quick sample identification (it requires an additional RS232 port to be requested when ordering)

  • Results shown in different colours for a quick identification of anomalies or critical values

  • New “Lactose-free milk” function to control the removal of lactose in milk and cream

  • Stable memory for 2 different calibration curves: the typical one in compliance with ISO requirements and a second one to be set according to the user’s needs (i.e.: Lactose-free curve)

  • Stable memory for up to 4,000 results

  • Easy download of test results to a USB pen drive

  • Real time PC monitoring or quick download of test results to a PC of test results thanks to CryoSoft Touch data handling software

  • Immediate visualization of error messages

    CryoTouch 40-特点1.jpg

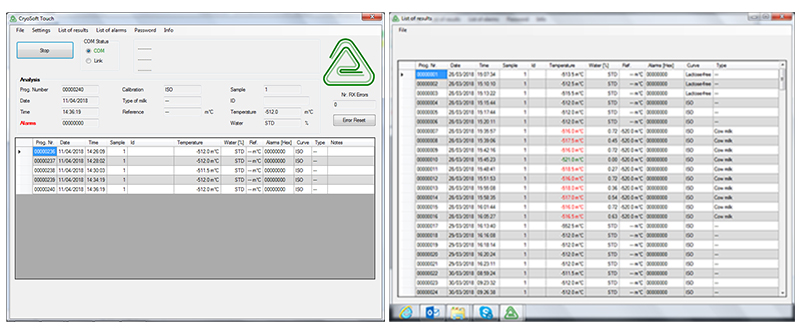

Look at the following screenshots from

the new CryoSoft Touch data handling software

CryoTouch 40-特点2.jpg

Application:

Professional analysis of added water in milk and cream samples.

CryoTouch 40 allows milk laboratories and dairy industries to perform official analysis based on ISO reference method. The new “lactose-free” function helps milk and dairy industries monitor the process of removal of lactose in milk and cream.

  • Sample capacity: up to 40 samples

  • Full colour 7” touchscreen display

  • Bath with Peltier cells controlled by software

  • Operating ambient temperature: +5°C to 36°C

  • Automatic calibration

  • Lash and agitation width controlled by software

  • Selectable °C, °Hortvet and water% units

  • Sample volume: 2 or 2.5 mL

  • Analysis duration: about 2 minutes/test

  • Warm up time: about 5 minutes

  • Resolution: ±0.0005°C

  • Reproducibility (on bovine milk): ±0.0025°C

  • USB port for data downloading to a pen drive

  • 2 x RS232 ports for connecting the provided thermal printer and an optional PC

  • An additional RS232 port can be added for connecting an optional barcode reader

  • Power absorption: max. 150 W

  • Dimensions: 330x610x360 mm (wxdxh, head down)

  • Net weight: 20.5 Kg
