Air Capture Hood
Overview:

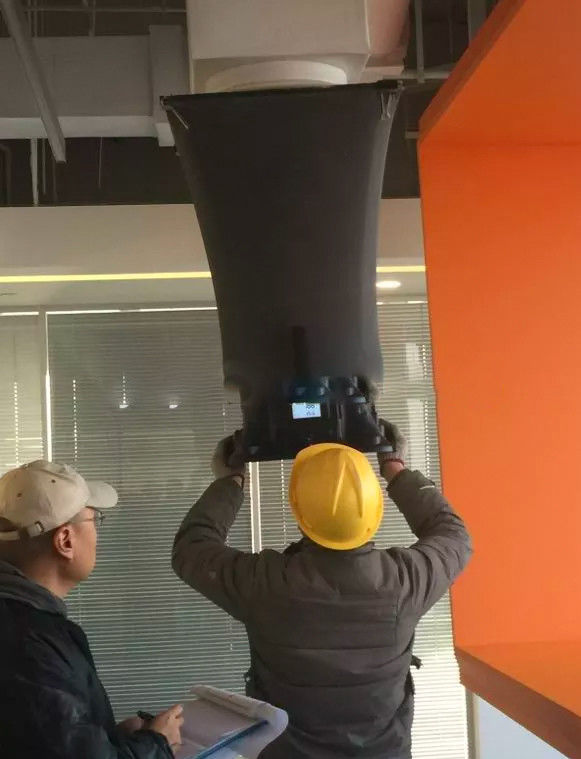

The Accubalance Air Capture Hood is a multipurpose electronic air balancing instrument primarily used for efficiently taking direct air volume readings at diffusers and grilles. It features a detachable micro manometer which can be used with optional probes for increased flexibility in multiple measurement applications.
Features:
1. Automatically display the wind direction: inlet flow or outlet flow
2. Displayed units can be switched between m3/h and ft3/min
3. Compact packing, convenient shipment
4. USB flash disk can be used to export data, easy to use
5. With WIFI print function
6. High-capacity data storage (4,608 samples)
7. Operation can be switched between Chinese and English
8. With buzzer alarm function, if the alarm limit is exceeded, the data will turn red for pre-alarm
9. Free carrying case with caster
Application:
HVAC commissioning
Clean room certification
Troubleshooting HVAC systems
Testing and balancing HVAC systems
Technology:
| Measurement range | 40～3600m3/h |
| Accuracy | ±5%FS |
| Resolution | 1m3/h |
| Spec | Standard size | 610×610mm(24”×24”) |
| Optional sizes | 1220×610mm |
| 760×760mm |
| 830×830mm |
| 915×915 mm |
| Power supply | li-battery for 6 hours continuous use |
| Weight | 4.5kg (Air Capture Hood size: 610×610mm) |
| Data storage | 4608 samples |
| Accessories | Carrying case, User manual, Calibration certificate, Battery recharger |
| Selectable items | Printer, Tripod
|
