Major Differences in Horizontal Laminar Flow and Vertical Laminar Flow:

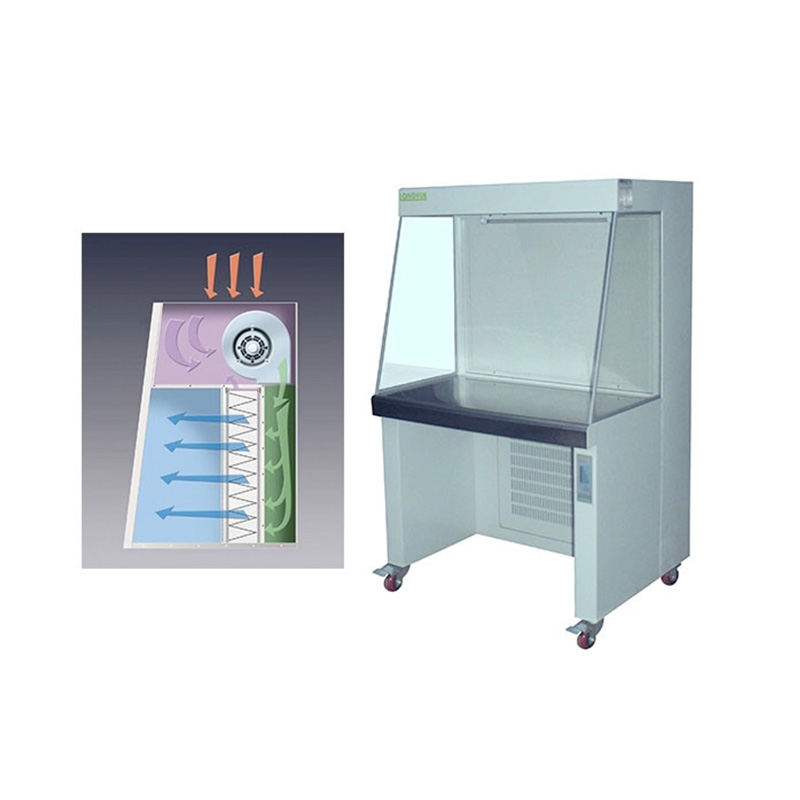

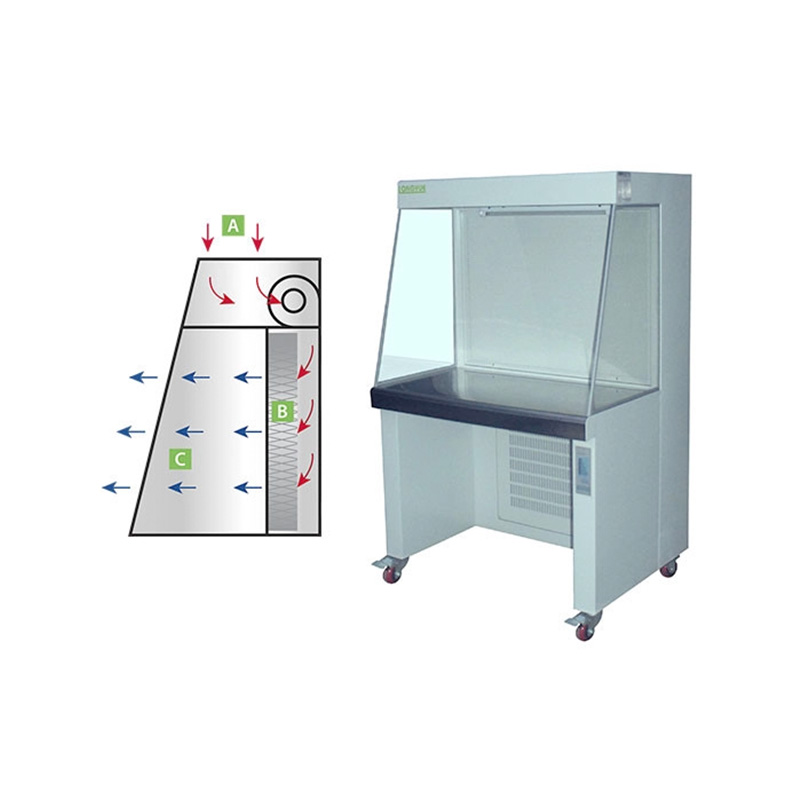

Horizontal laminar flow hoods more often have filters located on the back wall. Unidirectional filtered air is then passed horizontally from the rear, straight across the work surface.
Vertical laminar flow hoods typically have a top or ceiling mounted filter. Air exiting the filter media passes unidirectionally from the unit ceiling and then across the work surface, sweeping particles out of the enclosure as it goes.

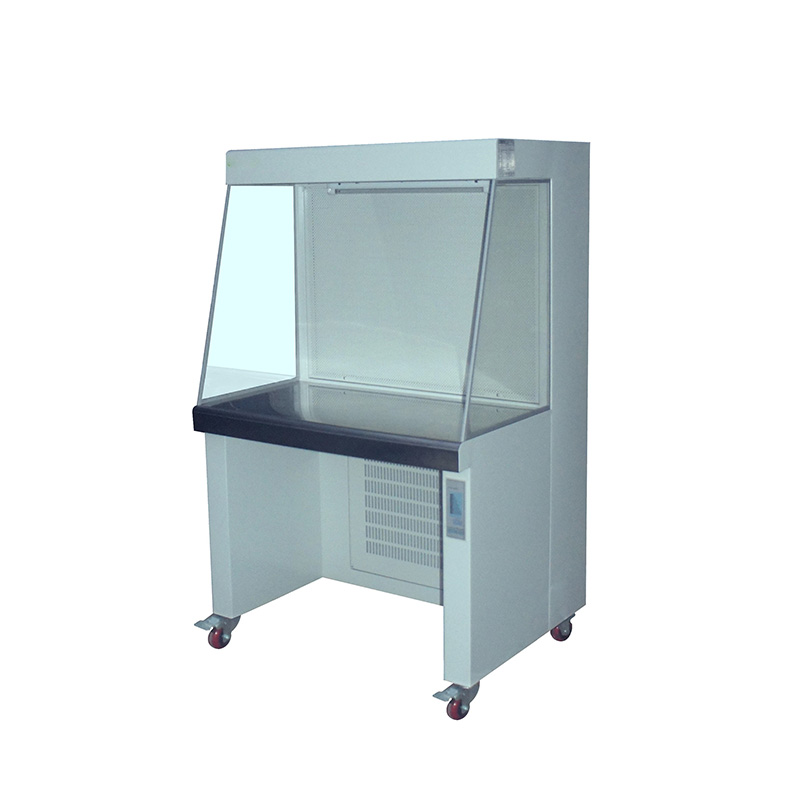

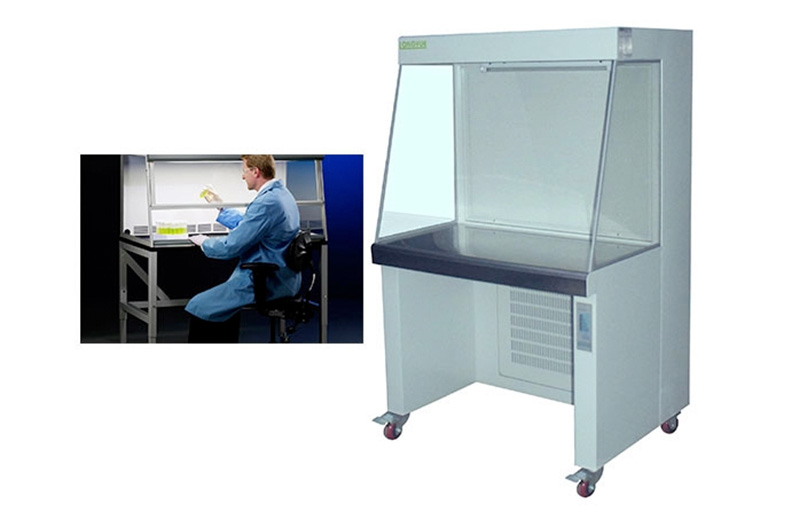

LCB-U High Strength Laminar Flow Clean Bench Hood
Horizontal type, stainless steel board, easy to clean.
Large LCD screen to display air fow, working time, pressure difference, working status, etc.
High effcient ironclad centrifugal fan with the features of stable work and low noise.
|Applicable Station||one person one side||two persons one side||one person two side||two persons one side|
|Clean Level||Class 100@≥0.5um(U.S. Federal 209E)|
|Wind Speed||0.32～0.66m/s(Recommended speed : 0.3m/s)|
|Vibration Semi-Peak Value||≤3um||≤5um||≤3um||≤4um|
|Power Supply||AC 220V/50Hz|
|N.W. / G. W.(Kg)(kg)||80/130||130/210||80/130||130/210|
|Exterior Size (W*D*H)cm||90×72×146||175×72×146||84×82×143||130×82×143|
|Package Size (W*D*H)cm||100×84×163||189×84×163||98×94×160||144×94×160|
|HEPA Filter||610×610×50 two pcs|
|Note||With UV lamp|
