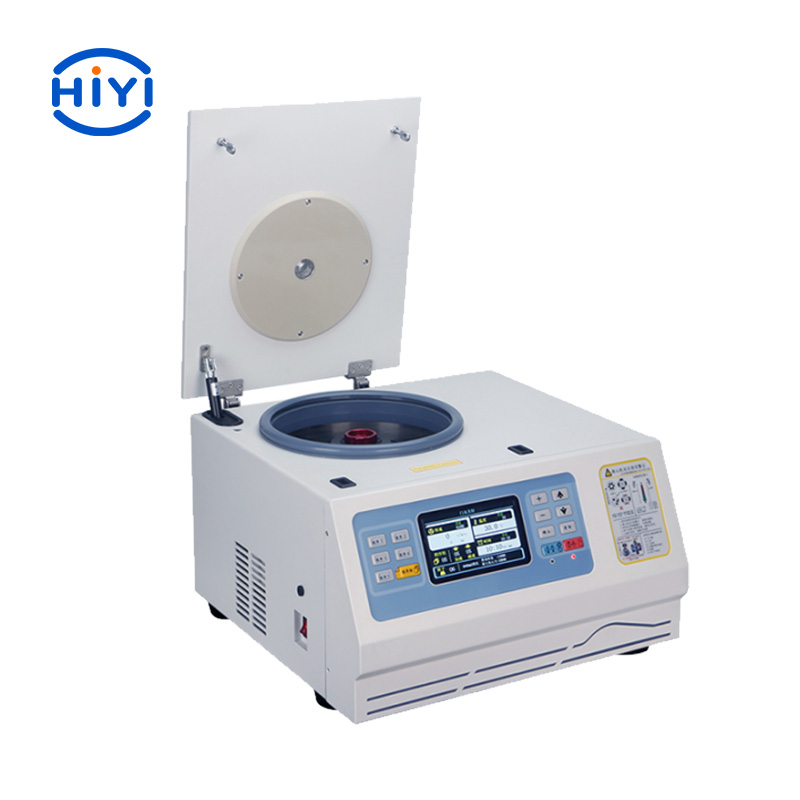

HYR320C High Speed Table Refrigerated Centrifuge
Features:
◆ Intelligent rotor automatic identification system can prevent personnel from misoperation and ensure personal and machine safety during operation.
◆ The high-definition 7-inch LCD screen can synchronously display the setting parameters and operating parameters, which is easy to operate, and the display is clearer and more beautiful.
◆ 99 sets of program groups are stored in large capacity, and 5 sets of daily program modes are directly called on the operation interface, which is convenient for one key switching.
◆ Automatic calculation of centrifugal force/rcf, accurate synchronous display of rotational speed/rpm data values and data, more intuitive.
◆ Linear drive, 10 gear acceleration/deceleration control, which can be set according to different sample attributes to ensure the best separation effect of samples.
◆ It is equipped with a special key for instant centrifugation. Press and hold it to centrifugate according to the required speed, and long press it to centrifugate continuously, which is convenient and fast.
◆ The machine body adopts a three-layer special anti-collision protection structure, and special noise reduction technology is added to precisely protect the safety of the machine and personnel.
◆ The machine body is made of high-quality all steel structure, and the chamber in the centrifugal chamber is made of stainless steel with environmental protection anti-corrosion coating, which is corrosion resistant and acid and alkali resistant.
◆ The door cover adopts electromagnetic induction protection, and the double door lock electronic traction protection structure with high intensity impact protection, which has higher safety.
◆ It is equipped with over-speed, imbalance, door cover protection, overcurrent, rotor fault and other protection functions to ensure personal and machine safety.
◆ The efficient and environment-friendly compressor refrigeration system is equipped with intelligent ECO energy saving and consumption reduction management mode, which can maintain below - 4 ℃ at the highest speed.
◆ The centrifugal chamber is equipped with a condensate tank, and the condensate can be discharged automatically to effectively prevent the condensate from depositing and corroding the chamber.
◆ food grade silicone integrated seal ring, beautiful and durable, high temperature resistant, anti-aging, anti-corrosion, no deformation and cracking.
Application:
HYR320C high-speed desktop refrigerated centrifuge is widely used in clinical medicine, medical inspection, biochemical analysis, genetic engineering, immunology and other fields of separation and purification. It is the necessary equipment used for centrifugation by scientific research institutions at all levels and colleges and universities.
Technical Parameter：
Model | HYR320C |
Max Speed | 20000rpm | Voltage | AC 220±22V 50Hz 15A |
Max RCF | 31115×g | Power | 1200W |
Max Capacity | 4×250ml | Noise Level | ≤ 60dB（A） |
Timer | 1s～99h59min | Size | 560×570×370mm |
Revolutions/min | ±10r/min | Net Weight | 110kg |
Temp Range | -20℃～40℃ | Rotor automatic recognition | Yes |
Temp Accuracy | ±1.0℃ |
|
|

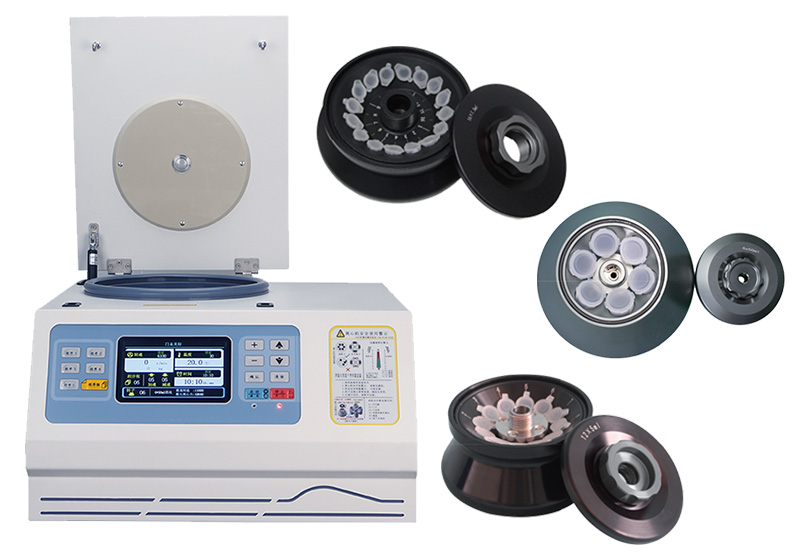

Rotor parameters：
Rotor Name | Rotor NO. | NO. | Capacity | Max Speed （r/min) | Max RCF(×g) |
Angle rotor | 1 | 1 | 16×1.5/2.0ml | 20000rpm | 30677×g |
2 | 2 | 24×1.5/2.0ml | 18000rpm | 31115×g |
3 | 3 | 12x5ml | 16000rpm | 17344×g |
4 | 4 | 12×10ml | 15000rpm | 20274×g |
5 | 5 | 32×1.5/2.0ml | 16000rpm | 26044×g |
6 | 6 | 48×1.5/2.0ml | 16000rpm | 27762×g |
7 | 7 | 12×15ml/sharp type | 14000rpm | 22241×g |
8 | 8 | 6×50ml/round type | 13000rpm | 17146×g |
9 | 9 | 6×50ml(sharp/round type) | 12500rpm | 17608×g |
10 | 10 | 4x100ml | 12000rpm | 17016×g |
11 | 11 | 6×100ml | 12000rpm | 17548×g |
12 | 12 | 8×50ml (sharp/round type) | 10000rpm | 12611×g |
13 | 13 | 60×1.5ml | 15000rpm | 18826×g |
Swing-out rotor | 14 | 14 | 40×15ml(W) | 5500rpm | 5952×g |
15 | 4×100ml | 5000rpm | 3717×g |
16 | 4×250ml(round basket) | 5000rpm | 4751×g |
15 | 17 | 4×500ml(oval basket) | 5000rpm | 4751×g |
18 | 4×250ml(Square basket) | 5000rpm | 4751×g |
19 | Micro-plate 2x2x96 hole | 4500rpm | 2603×g |
