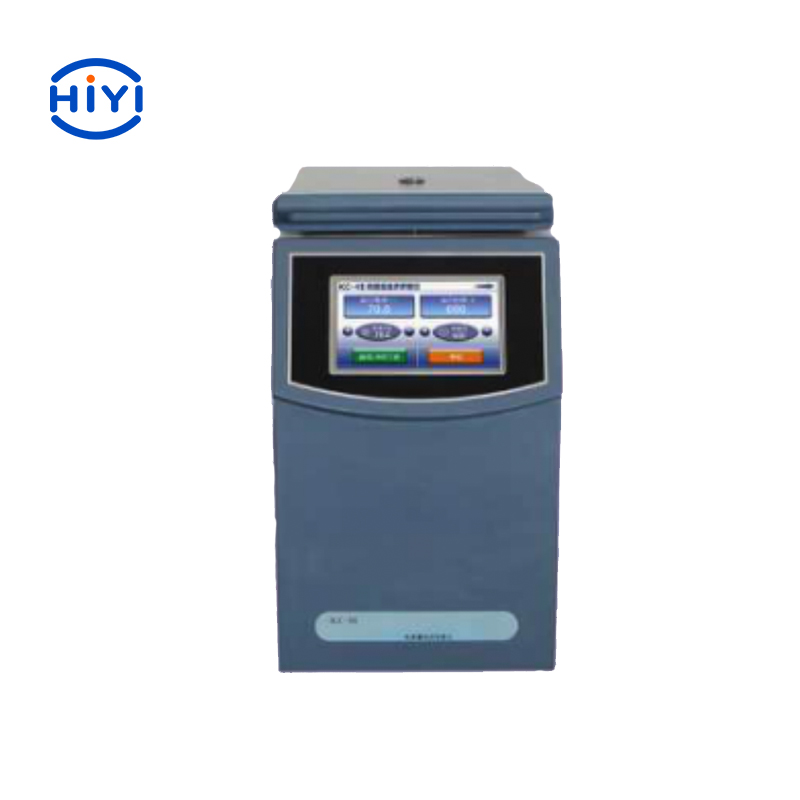

HY-48 High Flux Tissue Lyser Grinder
Product Feature：
* Vertical grinding makes the sample more thoroughly broken.
* 48 samples can be processed at one time in 1 minute.
* The grinding time is short and the sample temperature will not rise.
* It is completely closed during crushing without cross infection.
* Good repeatability: the same procedure is set for the same tissue sample to obtain the same grinding effect.
* Easy to operate: parameters such as grinding time and rotor vibration frequency can be set.
* Good repeatability and easy operation.
* Good stability, low noise and convenient low temperature operation.
Application Scenes：
1.It is suitable for grinding and crushing various plant tissues including roots, stems, leaves, flowers, fruits, seeds, etc;
2.It is suitable for grinding and crushing various animal tissues, including brain, heart, lung, stomach, liver, thymus, kidney, intestine, lymph node, muscle, bone, etc;
3.It is suitable for grinding and crushing fungi, bacteria and other samples;
4.It is suitable for grinding and crushing in the analysis and detection of food and drug components;
5.Suitable for grinding and crushing volatile samples including coal, oil shale, wax products, etc;
6.It is suitable for grinding and crushing of plastics, polymers including PE, PS, textiles, resins, etc.
Model | HY-48 | Standard configuration | 2.0mlx48 with PE Adapater |
Display mode | LCD (HD) touch screen | Optional adapter | 5.0mlX12
10mlX4 |
Temperature range | room temperature | Noise level | < 55db |
Crushing principle | Impact force, friction | Power Supply | AC 220 ± 22V 50Hz10A |
Oscillation frequency | 0-70HZ/S | Power | 180W |
Crushing mode | Vertical reciprocating ball grinding method; dry grinding, wet grinding, precooling grinding can be used | Net Weight | 35KG |
Acceleration / deceleration time | 2 Sec reach
Max speed / mini speed | Oscillation time | 0 seconds - 99 minutes adjustable |
Driving mode | Brushless DC motor | Programming function | upgrade |
Feed size | No requirement, adjust according to adapter | Micron-Mesh | 〜5卩m |
Optional grinding beads | Alloy steel, chromium steel, zirconia, tungsten carbide, quartz sand, etc | Grinding beads diameter | 0.1-30mm |
Safety in use | Fastening device with automatic center positioning, safety lock in working room, full protection | Overall dimension | 440mm x 300mm x 500mm |
