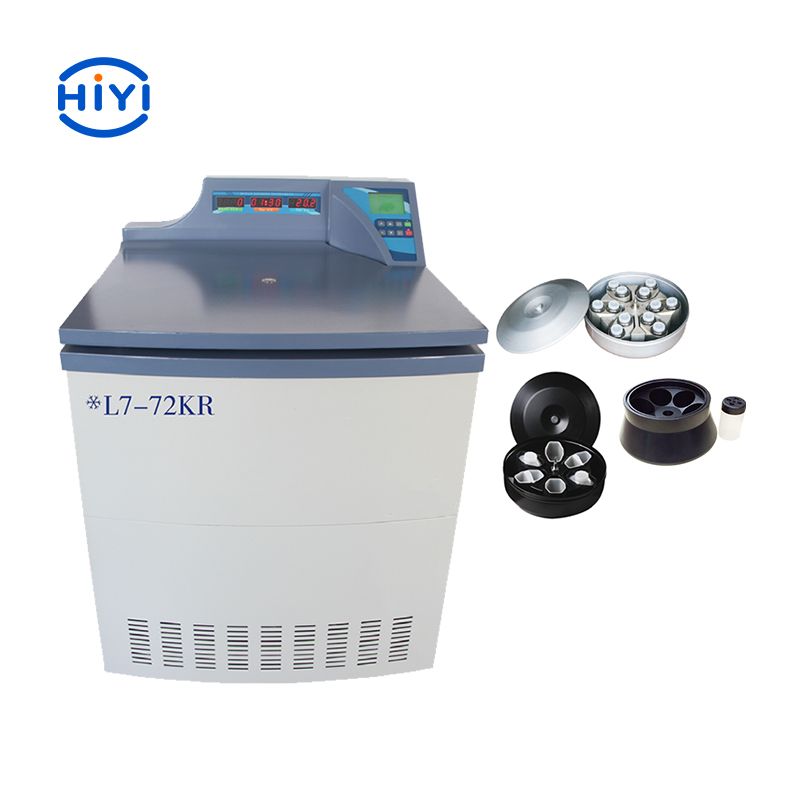

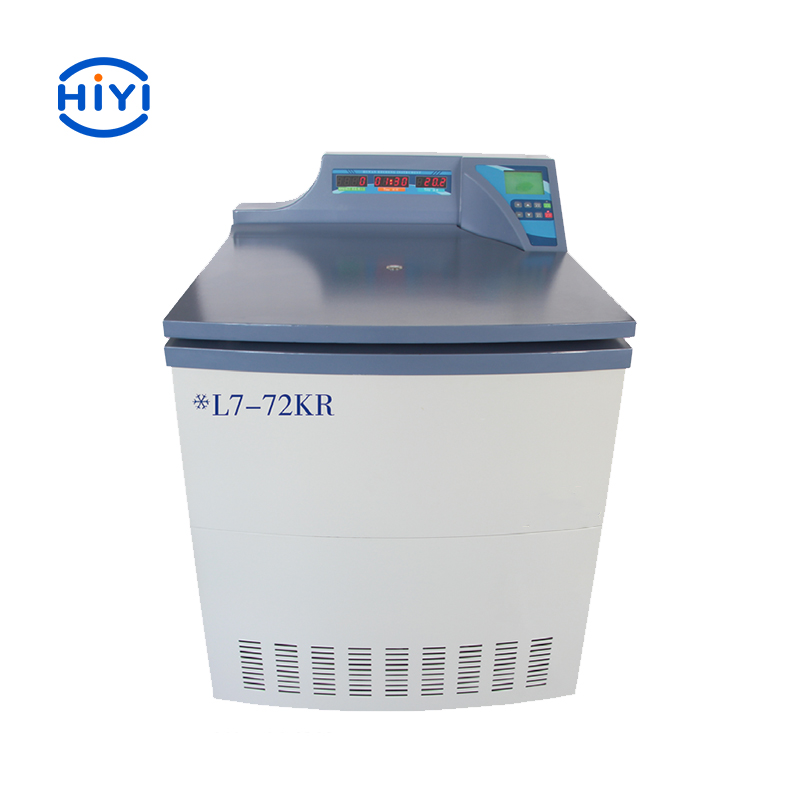

L7-72KR Floor Standing Low Speed Large Capacity
Refrigerated Centrifuge
◎ Microcomputer control with touch panel LED display, driven by AC frequency conversion motor.
◎ Set up freely of RPM, RFC, temperature and time. Automatically calculate RCF.
◎ Up to 40 programs and parameters can be revised during operation without stopping.
◎ 9 steps for speed control and breaking freely. Long life：
◎ Imported Eco-Friendly CFC free (refrigerant R404a ) refrigerating compressor, heated and cooling dual system control.
◎High torque AC frequency conversion motor, free maintenance. Safety in operation：
◎ Over speed, over heat, imbalance protections with Electronic lock. Ultra large capacity：

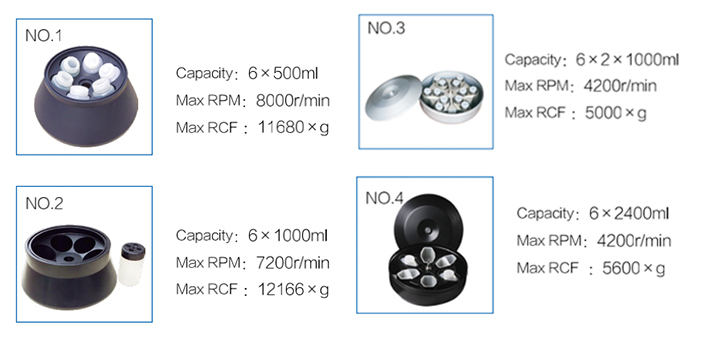

◎ 12 X 400ml three strip bags or four strip bags, 2400ml centrifuge bottle, up to centrifuge 14400ml samples with 6x2x1000ml swing out rotor.
Model | L7-72KR |
Max RPM | 8000rpm |
Max RCF | 12166×g |
Max Capacity | 6×2400ml |
Timer | 1min ～ 23h59min |
Revolutions/min | ±10r/min |
Temp Range | -20℃～ 40℃ |
Temp Accuracy | ±1.0℃ |
Voltage | AC 220±22V 50Hz 50A |
Power | 7500W |
Noise Level | ≤ 65dB（A） |
Chamber Diameter | Φ700mm |
Dimensions (L x W x H) | 975×860×1180 (mm) |
Packaging Dimensions | 1100×980×1400(mm) |
Net Weight | 500kg |
