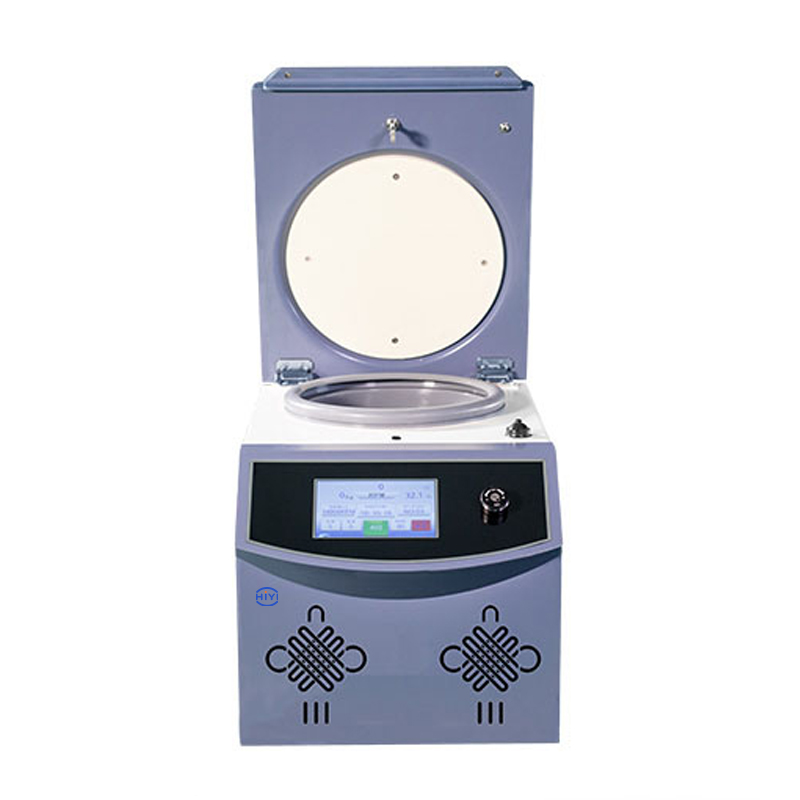

1-16R Table High Speed Refrigerated Centrifuge

Inquiry
(+86)010-5653 8958
  • Product description
  • Product parameter
  • Product video

1、Electronic door lock, all steel door cover protection, superior to peer standards.

2、External heat dissipation design, efficient heat dissipation of the internal circuit of the main engine, the temperature rise in the cavity is better than the industry standard, to ensure the safety of the sample.

3、High quality hydraulic rod, imported damper seal, hydraulic damper does not decay for ten years.

4、Food-grade integrated silica gel sealing ring, life-long service, more sealable.

5、The automatic identification system of magnetic rotor automatically matches the corresponding rotor program, prevents the rotor from overspeeding and ensures centrifugal safety.

6、Humanized design is easy to operate, parameter setting is directly digital input, accurate to individual intelligent status prompt.

7、It has many protective functions, such as door cover, overspeed, over-temperature, over-current, over-pressure, over-heat, etc. The solution is more stable with simultaneous voice and text display.

8、Unique noise reduction system, running more quiet.

9、Self-diagnostic function voice text prompts and displays solutions, more stable and reliable with electronic   instructions, never lost, easy to use.

10、The rotational speed, centrifugal force and temperature curves are displayed on the same screen to meet various centrifugal requirements, and the change relationship is clear and visible.

11、Super large storage space, can store up to 99 program groups, 99 usage records and fault records can be traced.

12、Fifteen speed-up and speed-down curves can be selected and free parking time can be set.

13、Two timing modes are optional, start timing and arrival speed timing.

14、Password lock function, users can set password to lock the host or parameters to prevent misoperation.

15、There are many languages in the startup interface, which can be switched between Chinese and English.


Model1-16R Table High Speed Refrigerated  Centrifuge
Max RPM  (rpm)16500rpmPower500W
Max RCF20625×gNoise Level≤ 62dB(A)
Max Capacity12×5mlChamber diameterΦ200mm
Timer1s ~99h59min59sOuter Dimensions335×270×245(mm)
Revolutions / min± 10r / minOuter packing Dimensions412×347×332(mm)
VoltageAC 220±22V 50/60Hz 10ANet weight15Kg
RotorNoCapacityRPM/RCF
 Angle Rotor112×5ml16500rpm/15720×g
         2         24×1.5/2.0ml                        15000rpm/20625×g
3  4x8x0.2ml PCR Pipe  14000rpm/14395xg
