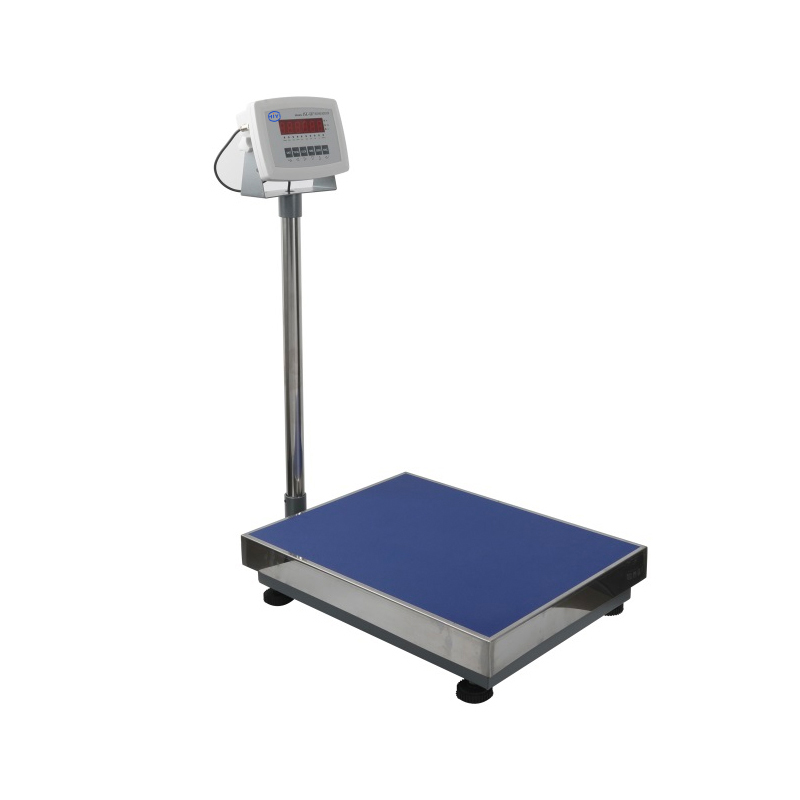

HCS SERIES Scale with RS232 Function
Advantages

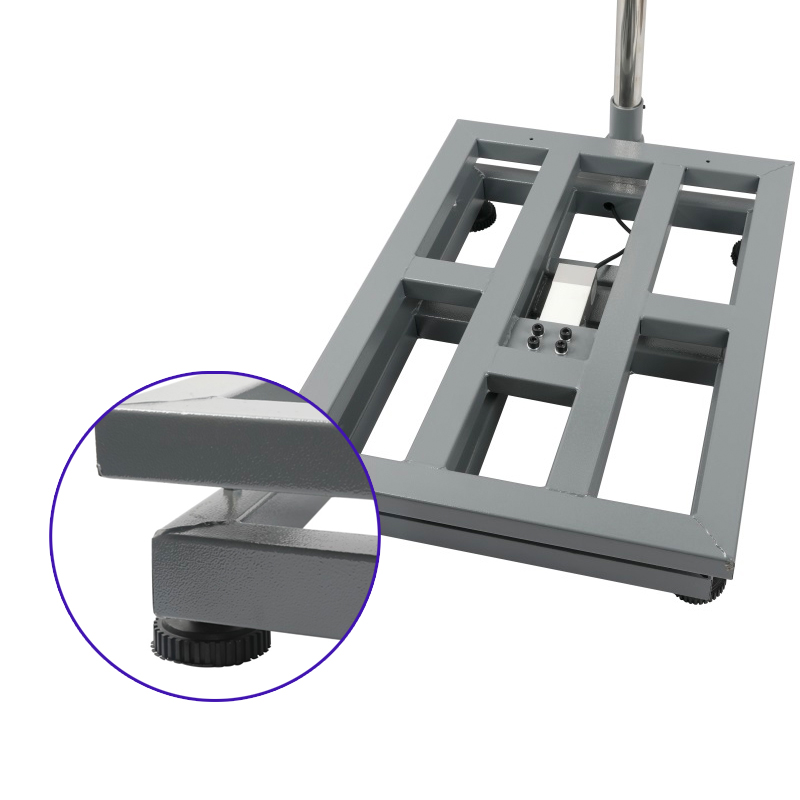

Rectangular pipe mild steel welding structure, high strength
Stainless-steel 304 platform (cover)

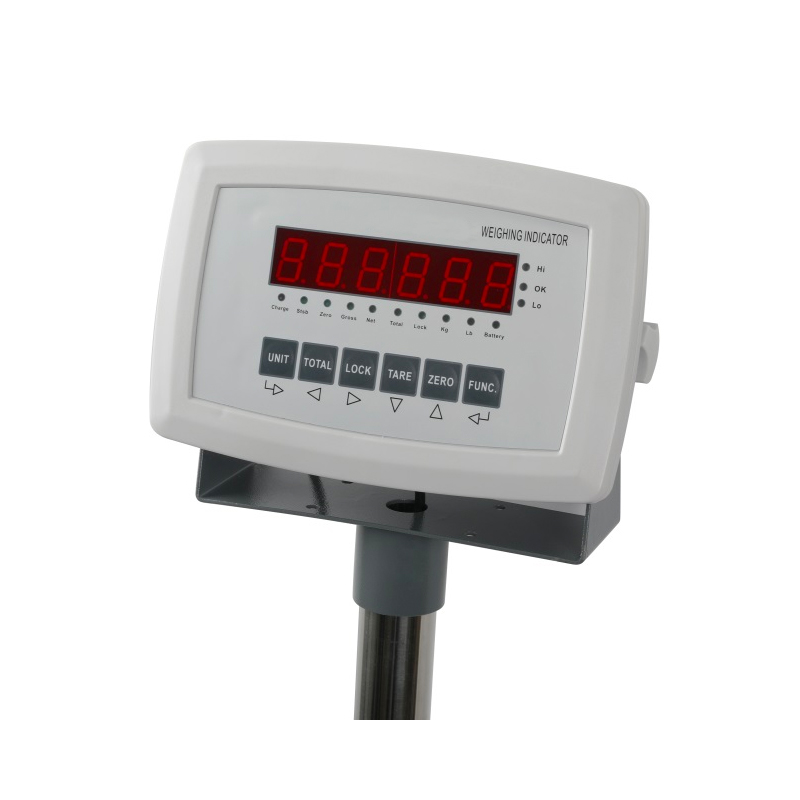

With bracket (mild steel) and column ( stainless-steel tube) for the indicator
With all bolts and screws for each unit.
Finishing:Powder coated.
Accuracy class: Grade III
Basic weighing/counting/Accumulation function
Battery voltage indication
9)Automatic power-off to save battery
10)Upper limit,normal,lower limit alarm

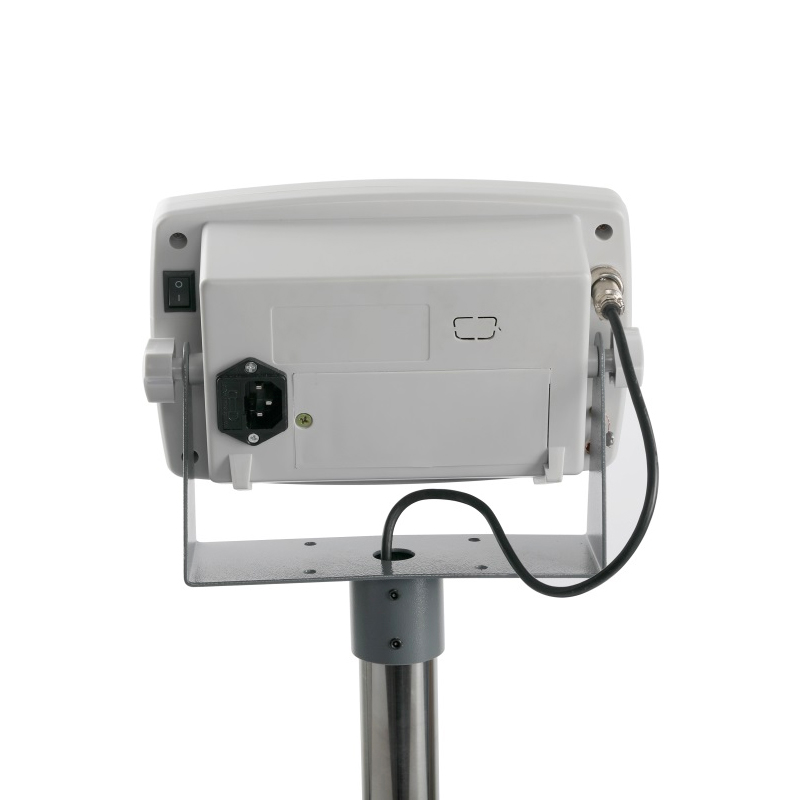

11)RS232 interface(optional)
| Model | Platform size(mm) | Capacity | division | Max capacity | Min weighing | Column height(mm) | Net weight(kg) |
| HCS-60 | 320X420 | 60kg | 2g | 60kg | 400g | 500 | 9.5 |
| HCS-100 | 320X420 | 100kg | 5g | 100kg | 400g | 500 | 9.5 |
| HCS-150 | 400×500 | 150kg | 10g | 150kg | 1000g | 600 | 12.5 |
| HCS-300 | 400×500 | 300kg | 10g | 300kg | 2000g | 600 | 12.5 |
| HCS-300 | 450×600 | 300kg | 20g | 300kg | 2000g | 660 | 15 |
| HCS-600 | 450×600 | 600kg | 20g | 600kg | 4000g | 660 | 15 |
