TCS SERIES Electronic Weighing Platferm Scale

TCS SERIES DIGITAL PLATFORM COUNTING SCALES

Inquiry
(+86)010-5653 8958
  • Product description
  • Product parameter
  • Product video

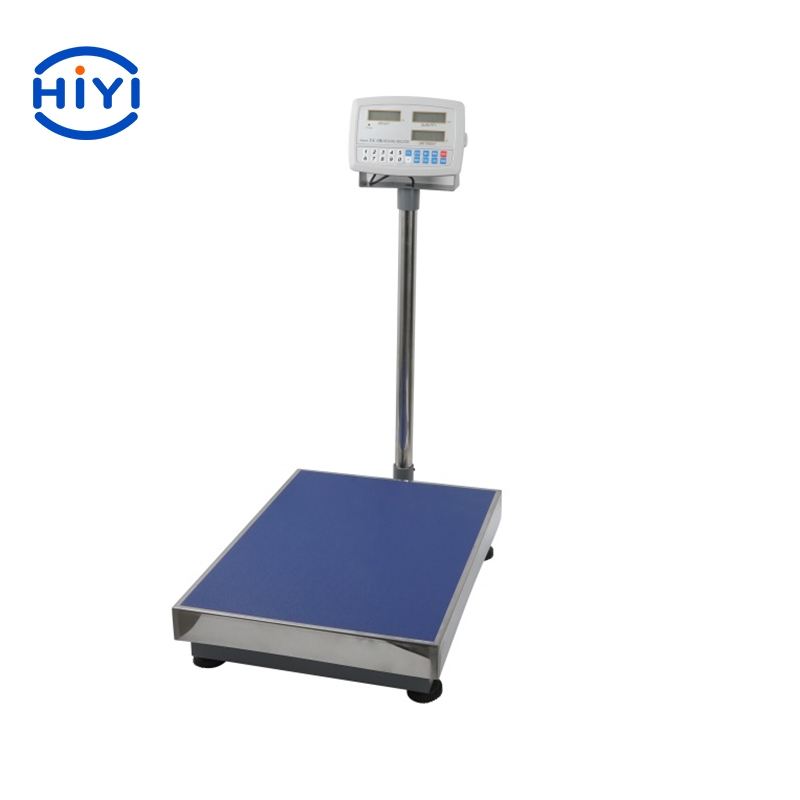

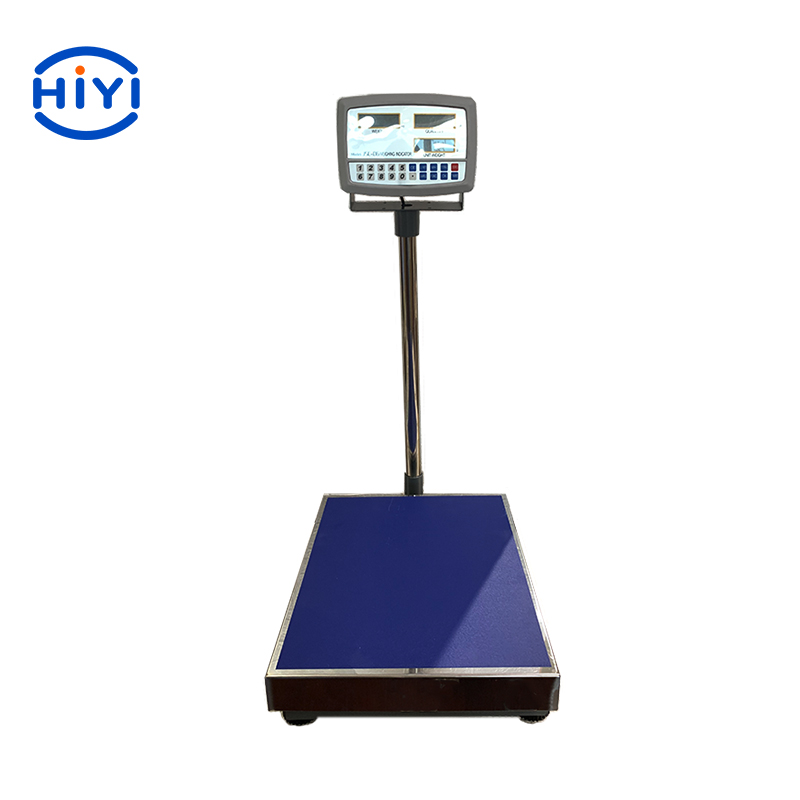

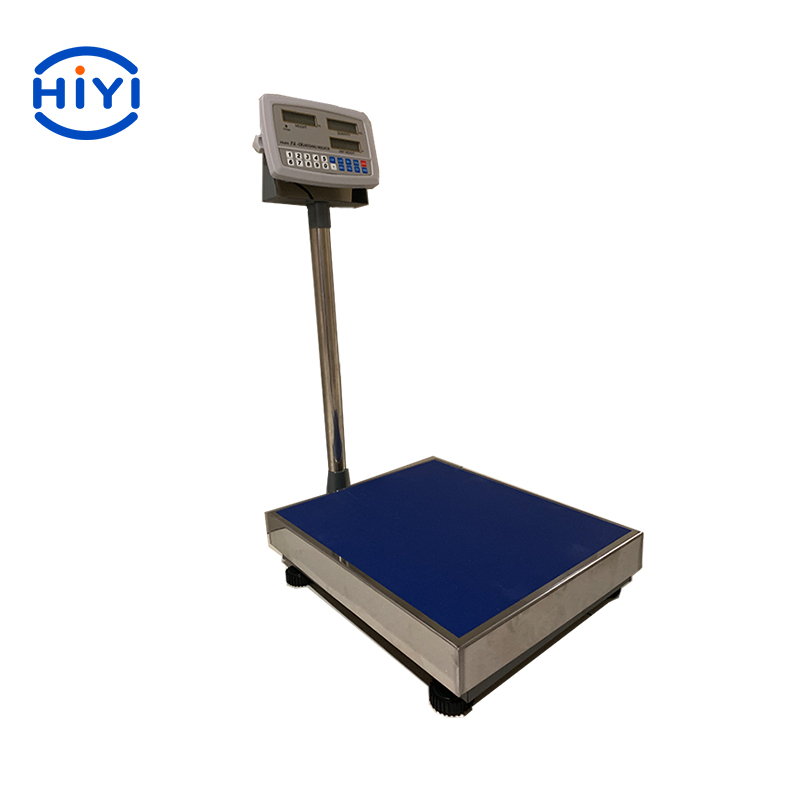

TCS SERIES Electronic Weighing Platferm Scale




Features:

  • Rectangular pipe mild steel welding structure, high strength

  • Stainless-steel 304 platform (cover)

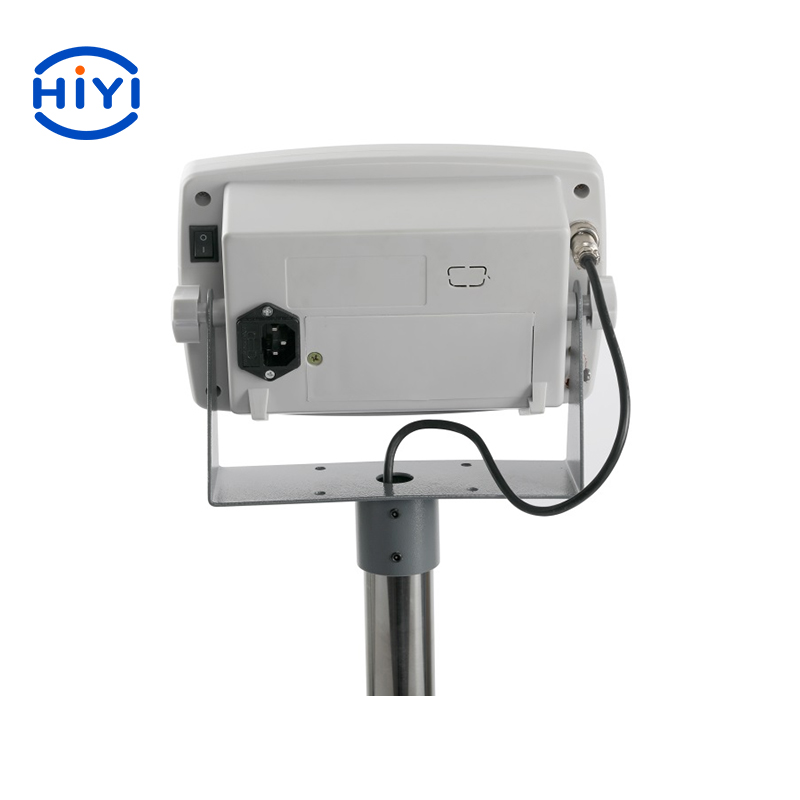

  • With bracket (mild steel) and column ( stainless-steel tube) for the indicator

  • With all bolts and screws for each unit.

  • Finishing:Powder coated.

  • accuracy class: Grade III

  • Basic weighing/counting/Accumulation function

  • Battery voltage indication

  • Automatic power-off to save battery

  • Upper limit,normal,lower limit alarm

  • RS232 interface(optional)



ModelPlatform size(mm)CapacitydivisionMax capacityMin weighingColumn height(mm)Net weight(kg)
TCS-60320X42060kg2g60kg400g5009.5
TCS-100320X420100kg5g100kg400g5009.5
TCS-150400×500150kg10g150kg1000g60012.5
TCS-300400×500300kg10g300kg2000g60012.5
TCS-300450×600300kg20g300kg2000g66015
TCS-600450×600600kg20g600kg4000g66015
