Laboratory Standard Glovebox

The working gas inside the glove box is circulated through a closed loop of the box, piping, purification system and circulation fan, and the diameter PlC controls the circulation; the working gas is circulated through the purification column, and the water and oxygen it contains are adsorbed off, and then returned to the glove box, with the circulation time, the water and oxygen content in the working gas inside the box will gradually decrease, and finally reach less than 1ppm. After a certain period of time, the column will be saturated with adsorption and can be regenerated and reused.

Inquiry
(+86)010-5653 8958
  • Product description
  • Product parameter
  • Product video

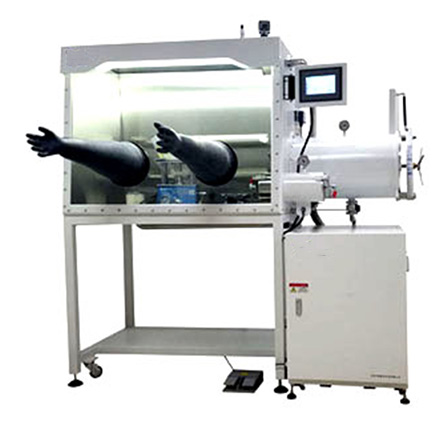

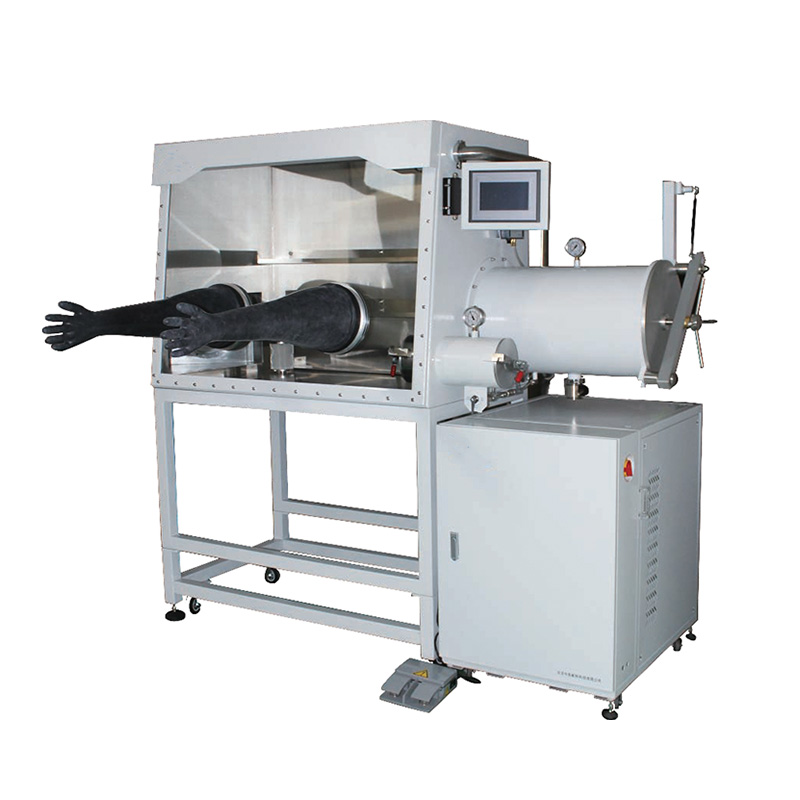

Laboratory Standard Glovebox




Features: Compact design of integrated gas purification system

Index: H2O, O2<1ppm

Ultra-low leakage rate: (<0.001vol%h)

Transition hatch: simple design, easy to open and close

Foot switch: for temporary adjustment of the pressure in the chamber

Automatic cleaning: PLC control, one key to complete the replacement of the atmosphere in the glove box

Circulation: closed circuit circulation

Regeneration: automatic control

Data memo: automatic recording system data

Alarm function: each function invalid operation prompt, H2O, O2 content upper limit alarm

Translated with www.DeepL.com/Translator (free version)

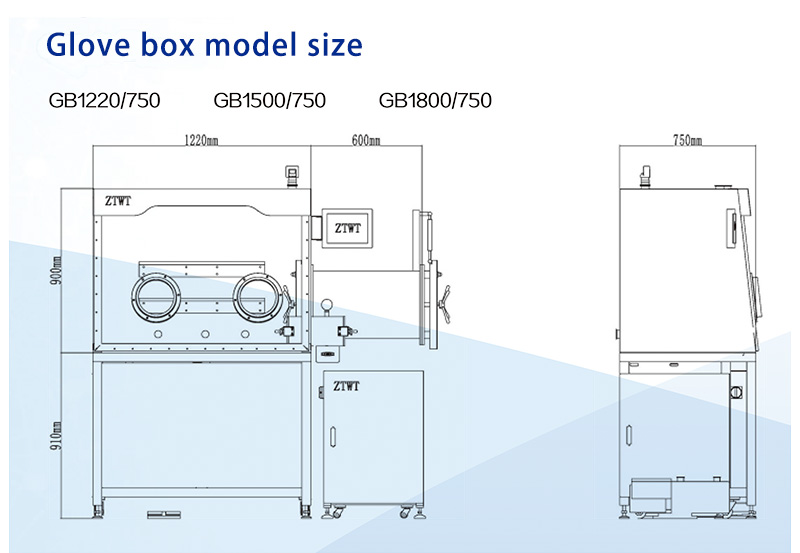

TypesBox specifications (L*W*H)mmTransition Module Specifications (mm)
Single station (single side)1220*750*900
Large cabinФ360*600
small cabinФ150*300
Three gloves (one side)1500*750*900
Large cabinФ360*600
small cabinФ150*300
Duplex (single sided)1800*750*9002440*750*900Large cabinФ360*600
small cabinФ150*300
Duplex (opposite)1220*1000*900
Large cabinФ360*600
small cabinФ150*300
Three stations (opposite)1500*1000*900
Large cabinФ360*600
small cabinФ150*300
Four stations (opposite)1800*1000*9002440*1000*900Large cabinФ360*600
small cabinФ150*300
Glove box with modular design can be freely combined; can be non-standard customization.
