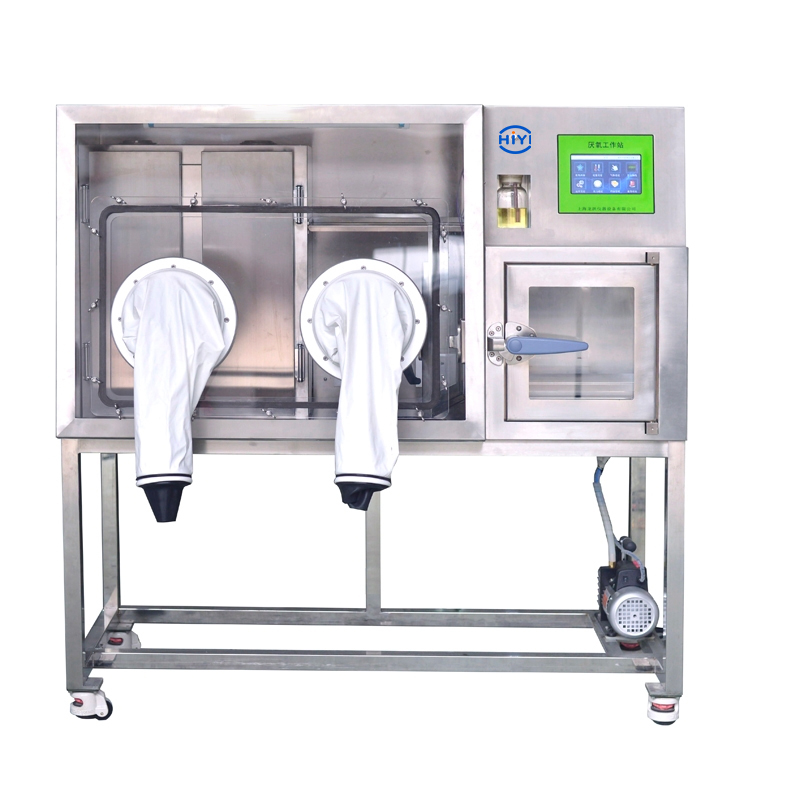

Anaerobic Workstation LAI-D2

This workstation integrates CO2, Constant temperature and humidity, anaerobic incubator whole.

Inquiry
(+86)010-5653 8958
  • Product description
  • Product parameter
  • Product video
★ This workstation integrates CO2, Constant temperature and humidity, anaerobic incubator whole.
★ Can operate as an anaerobic or micro-oxygen chamber (oxygen concentration: 0-10%).
★ Fully automatic humidity control system to avoid drying of the Petri dishes.
★ Sample transfer: can transfer 40 pcs of 90mm plates at a time, single dish transfer device is optional.
★ Available with automatic sleeve gassing system operated by foot-switch, so you can control vacuum and Nitrogen gas filling efficiently.Equipped with standard external vacuum pump.
★ Using high-efficiency palladium catalyst to keep the oxygen concentration less than 0.1% without frequent activation.
★ UV lamp for sterilization.
★ Full-automatic control for gas replacement path, with positive pressure and negative pressure protection.
★ Can perform CO2 , humidity and temperature control.
★ Unique oil bottle type pressure relief design, protects internal positive pressure and prevents air leakage.
★ With a number of low pressure, over temperature protection devices.
★ The whole front cover can be lifted off for placing large instruments or thorough cleaning.
★ Equipped with standard power socket.
★ Touch screen directly displays the oxygen percentage of the operating room, easy for observation.
★ Latex gloves for comfortable and flexible operation.
★ Bare-hand operating system is optional. Ensure comfortable operation with no skin allergies.


Model
LAI-D1
LAI-D2
 Time for creating anaerobic state in sample chamber
<5 minutes
Time for creating anaerobic state in operation chamber
<1hr
Anaerobic environment maintenance time
>12hrs(when no supply of mixed gas)

Temperature Range

RT+3~60℃
Temperature Stability
<±0.3℃












Temperature Uniformity
<±1℃
CO2  Range
0 ~20%
CO2  Control Accuracy
±0.1%(imported sensor)
Humidity Control Range
50~90%RH
Humidity Fluctuation
±3%RH
Power Rating
1500W
Power Supply
AC 220V,50HZ(can customized)
Interior Chamber Size (W×D×H)cm
42 × 29 × 47.5
Operation Chamber Size (W×D×H)cm
95 × 67 × 75
Sampling chamber size (W×D×H)cm
40 × 30 × 32
Shell material
Spray treatment on high quality steel plate

All 304 stainless steel
